325-062 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 62POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Gender	Read Out	Card Thickness	Card Thickness	Mounting Type	Number of Rows [custom]	Contact Type	Contact Finish	Color	Termination	Contact Material	Number of Positions/Bay/Row [custom]	Pitch	Pitch
EDAC Inc. 325-062-520-209	2	Diallyl Phthalate (DAP)	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	0.25 Ám	10 Áin	62	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Dual	3.18 mm	0.125 in	Through Hole	2	Cantilever	Gold	Green	Solder	Copper Alloy	31	0.1 "	2.54 mm
EDAC Inc. 325-062-500-208	2	Diallyl Phthalate (DAP)	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	62	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Dual	3.18 mm	0.125 in	Through Hole	2	Cantilever	Gold	Green	Solder Eyelet(s)	Copper Alloy	31	0.1 "	2.54 mm

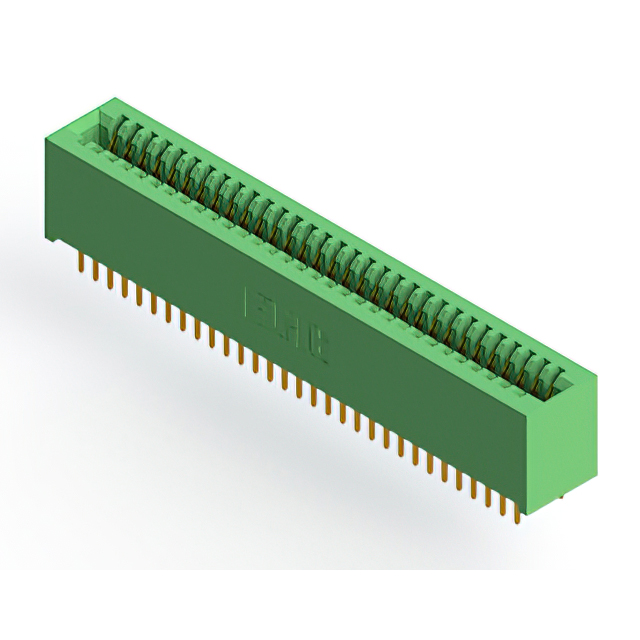

EDAC Inc. 325-062-520-201	2	Diallyl Phthalate (DAP)				0.25 Ám	10 Áin	62	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Dual	3.18 mm	0.125 in	Through Hole	2	Cantilever	Gold	Green	Solder	Copper Alloy	31	0.1 "	2.54 mm
EDAC Inc. 325-062-500-207	2	Diallyl Phthalate (DAP)	Flush Mount M3 Threaded Insert Top Opening			0.25 Ám	10 Áin	62	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Dual	3.18 mm	0.125 in	Through Hole	2	Cantilever	Gold	Green	Solder Eyelet(s)	Copper Alloy	31	0.1 "	2.54 mm
EDAC Inc. 325-062-500-201	2	Diallyl Phthalate (DAP)				0.25 Ám	10 Áin	62	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Dual	3.18 mm	0.125 in	Through Hole	2	Cantilever	Gold	Green	Solder Eyelet(s)	Copper Alloy	31	0.1 "	2.54 mm

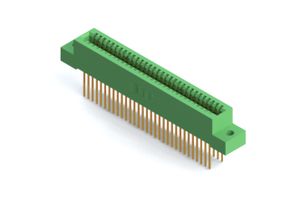

EDAC Inc. 325-062-540-209	2	Diallyl Phthalate (DAP)	Flush Mount Top Opening Unthreaded	0.16 "	4.06 mm	0.25 Ám	10 Áin	62	-65 ░C	125 °C	Non Specified - Dual Edge	Female	Dual	3.18 mm	0.125 in	Through Hole	2	Cantilever	Gold	Green	Wire Wrap	Copper Alloy	31	0.1 "	2.54 mm
