4312 Series

Catalog

FAN AXIAL 119X32MM 12VDC WIRE

Part	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Voltage - Rated	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Width [y]	RPM	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Noise	Power (Watts)	Termination	Approval Agency	Fan Type	Lifetime @ Temp.	Weight	Weight	Operating Temperature	Weight [custom]	Weight [custom]	Ingress Protection	Features
ebm-papst Inc. 4312/19	2.8 m³/min	100.1 CFM	8 V	13.2 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced	0.42 A	Varies Based on Temperature	12 VDC	Ball	-20 ░C	70 °C	0.313 in H2O	78 Pa	32 mm	2800 RPM	Square	119 mm	119 mm	45 dB(A)	5 W	3 Wire Leads	CE CSA EAC UL VDE	Tubeaxial
ebm-papst Inc. 4312MV	2.31 m³/min	82.4 CFM	8 V	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced			12 VDC	Ball	-20 ░C	65 °C			32 mm	2300 RPM	Square	119 mm	119 mm	39 dB(A)	3 W	2 Wire Leads	CSA UL VDE	Tubeaxial	70000 Hrs	219.99 g	0.485 lb	(-20 ~ 65°C)
ebm-papst Inc. 4312G	2.8 m³/min	100.1 CFM	6 VDC	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced			12 VDC	Sintec	-4 °F	167 °F			32 mm	2800 RPM	Square	119 mm	119 mm	45 dB(A)	5 W	2 Wire Leads	CE CSA UL VDE	Tubeaxial	62500 Hrs	219.99 g	0.485 lb

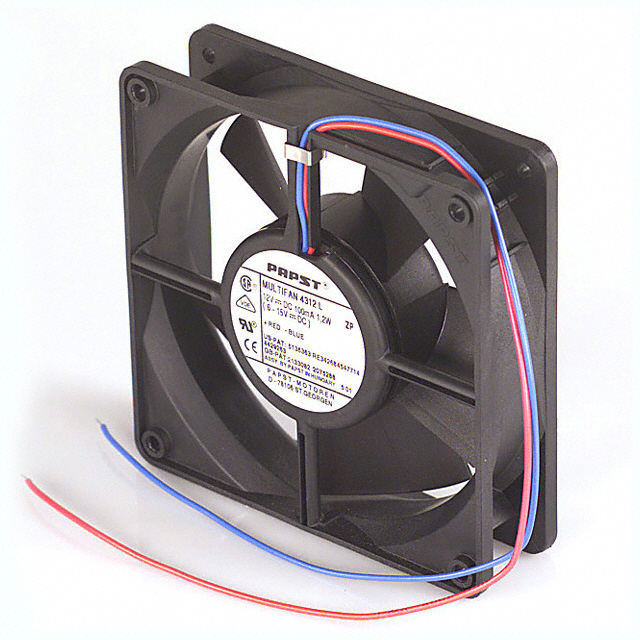

ebm-papst Inc. 4312L	1.57 m³/min	56 CFM	6 VDC	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced			12 VDC	Ball	-4 °F	167 °F			32 mm	1550 RPM	Square	119 mm	119 mm	30 dB	1.2 W	2 Wire Leads	CE CSA UL VDE	Tubeaxial	80000 Hrs	219.99 g	0.485 lb
ebm-papst Inc. 4312GM	2.3 m³/min	82.2 CFM	6 VDC	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced			12 VDC	Sintec	-4 °F	167 °F			32 mm	2300 RPM	Square	119 mm	119 mm	39 dB(A)	2.6 W	2 Wire Leads	CE CSA UL VDE	Tubeaxial	70000 Hrs	219.99 g	0.485 lb
ebm-papst Inc. 4312-179	3.37 mł/min	120.2 CFM			Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced			12 VDC	Ball	-20 ░C	65 °C			32 mm	3400 RPM	Square	119 mm	119 mm	45 dB(A)	9.4 W	2 Wire Leads	CE CSA VDE	Tubeaxial	47500 Hrs			(-20 ~ 65°C)	220 g	0.485 lb

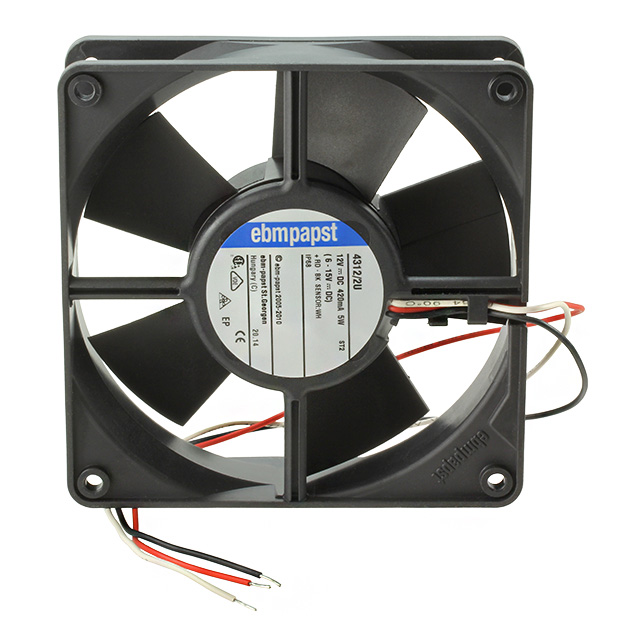

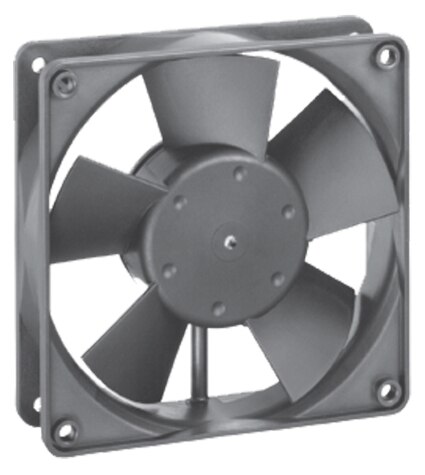

ebm-papst Inc. 4312/2U	2.8 m³/min	100.1 CFM	6 VDC	15 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	Polyamide (PA) Nylon Fiberglass Reinforced			12 VDC	Ball	-20 ░C	65 °C			32 mm	2800 RPM	Square	119 mm	119 mm	45 dB(A)	5 W	3 Wire Leads	UL	Tubeaxial		259.91 g	0.573 lb	(-20 ~ 65°C)			IP68 - Dust Tight Waterproof	Speed Sensor (Tach)
