5647 Series

Manufacturer: BRADY

Catalog

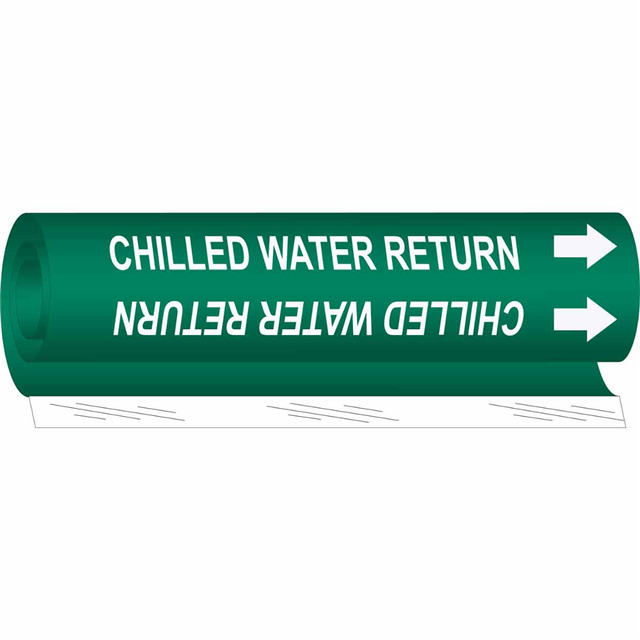

B689 5647-I WHT/GRN STYLE I

Part	Application Specifics	Width	Width	Applications	Location	Color - Legend	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Legend (Symbol Only)	Legend (Text)	Print Type	Arrangement	Mounting Type	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Shape	Features	Material - Body	Length	Length	Language	Color - Background	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Min) [Min]	Length [x]	Length [x]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [x]	Width [x]	Material	Label Type	Color	Label Size [y]	Label Size [x]	Label Size [y]	Label Size [x]
BRADY 5647-I	Directionality	8 in	203.2 mm	Pipe	Outdoor	White	60.33 mm	2.375 in	Directional Arrow	Chilled Water Return	Pre-Printed	Symbol and Text	Snap On	1.5 in	38.1 mm	Rectangle	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Plastic	9 in	228.6 mm	63000 A 69000 A	Green
BRADY 5647-II	Water Fluids	12 in	304.8 mm	Pipe	Outdoor	White		7.875 in	Directional Arrow	Chilled Water Return	Pre-Printed	Symbol and Text	Snap On			Rectangle	Chemical Resistant	Plastic			63000 A 69000 A	Green	63.5 mm	2.5 in	200.03 mm	660.4 mm	26 in
BRADY 5647-O	Water Fluids			General	Outdoor	White	34.93 mm	1.375 in	Directional Arrow	Chilled Water Return	Pre-Printed	Symbol and Text	Snap On			Rectangle	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Plastic	8 in	203.2 mm	63000 A 69000 A	Green						0.5 in	12.7 mm	127 mm	127 mm
BRADY 5647-HPHV																																Polyester	Chilled Water Return	Green Background White Legend	101.6 mm	609.6 mm	4 "	24 in
