A6SN Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH: DIP-SWITCH; POLES NUMBER: 3; ON-OFF; 0.025A/24VDC; POS: 2

Part	Length	Length	Electrical Life	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Pitch	Pitch	Actuator Type	Circuit	Mounting Type	Actuator Level	Termination Style	Voltage Rating	Number of Positions	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6SN-3102-R100	9.55 mm	0.376 in	1000 Cycles	25 mA	4.45 mm	0.175 in	85 °C	-30 ░C	Tape Seal	2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	24 VDC

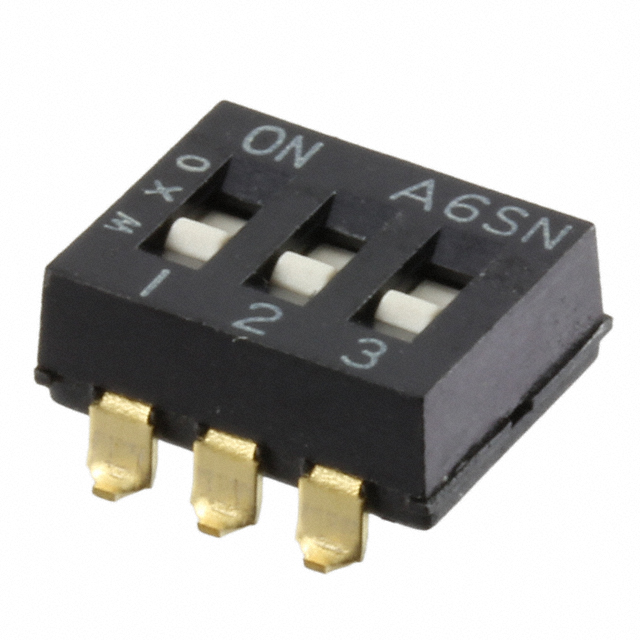

Omron Electronics Inc-EMC Div A6SN-3101	9.55 mm	0.376 in	1000 Cycles	25 mA	4.45 mm	0.175 in	85 °C	-30 ░C		2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	24 VDC

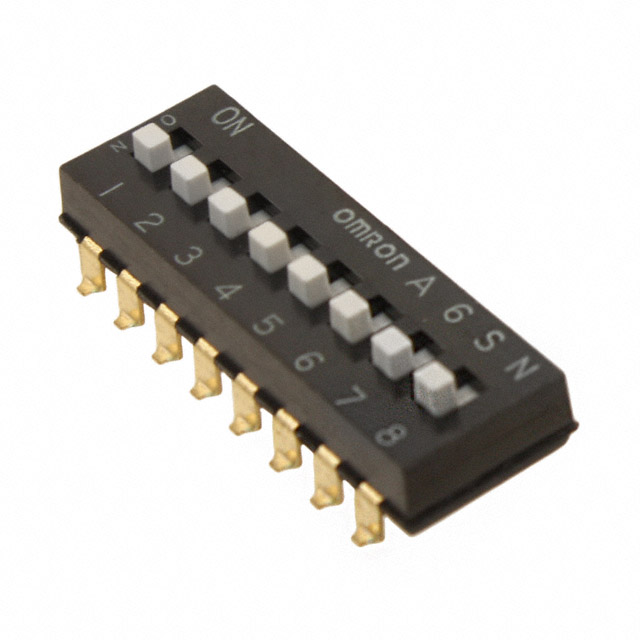

Omron Electronics Inc-EMC Div A6SN-8104	22.26 mm	0.876 in	1000 Cycles	25 mA	5.45 mm	0.214 in	85 °C	-30 ░C		2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	24 VDC	8
Omron Electronics Inc-EMC Div A6SN-7102-P	19.71 mm	0.776 in	1000 Cycles	25 mA	4.45 mm	0.175 in	85 °C	-30 ░C	Tape Seal	2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	24 VDC	7
Omron Electronics Inc-EMC Div A6SN-5104-P			1000 Cycles	25 mA	5.45 mm	0.214 in	85 °C	-30 ░C		2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	24 VDC	5	14.63 mm	0.576 in

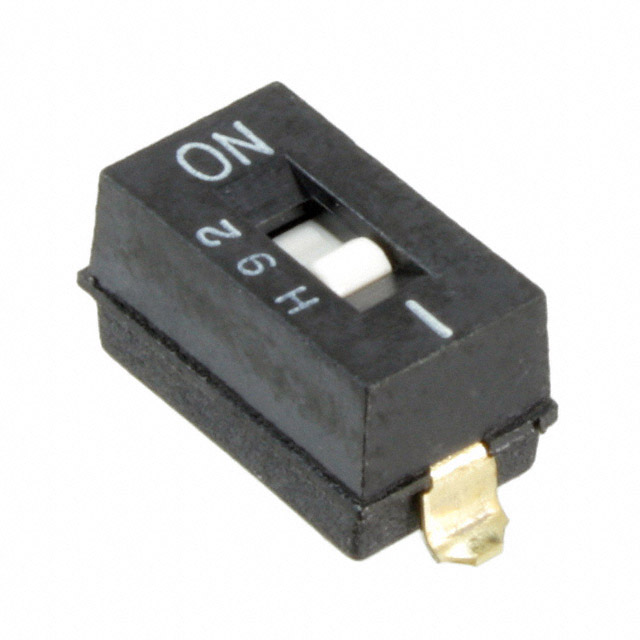

Omron Electronics Inc-EMC Div A6SN-1101			1000 Cycles	25 mA	4.45 mm	0.175 in	85 °C	-30 ░C		2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	24 VDC	1	4.48 mm	0.176 in

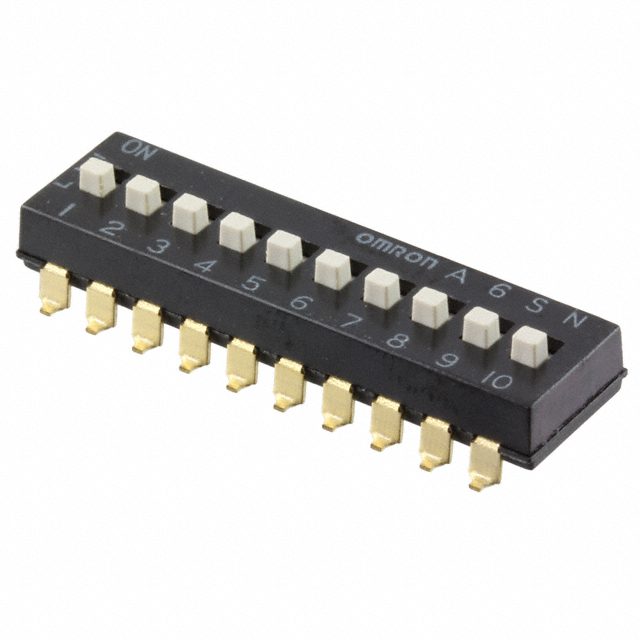

Omron Electronics Inc-EMC Div A6SN-0104			1000 Cycles	25 mA	5.45 mm	0.214 in	85 °C	-30 ░C		2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	24 VDC	10	27.34 mm	1.076 in

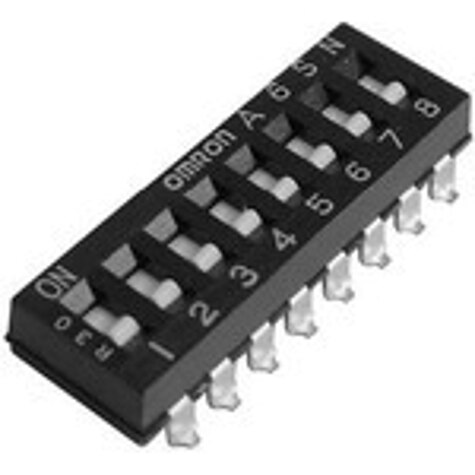

Omron Electronics Inc-EMC Div A6SN-5101			1000 Cycles	25 mA	4.45 mm	0.175 in	85 °C	-30 ░C		2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Flush Recessed	Gull Wing	24 VDC	5	14.63 mm	0.576 in

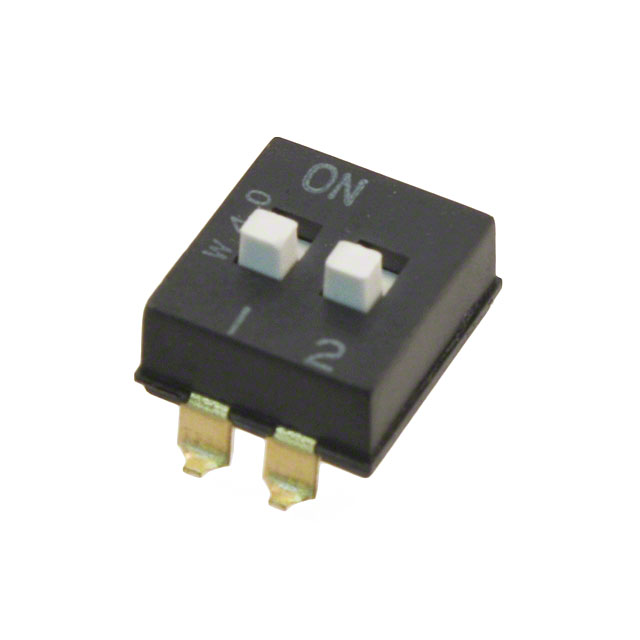

Omron Electronics Inc-EMC Div A6SN-2104	7 mm	0.276 in	1000 Cycles	25 mA	5.45 mm	0.214 in	85 °C	-30 ░C		2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	24 VDC	2

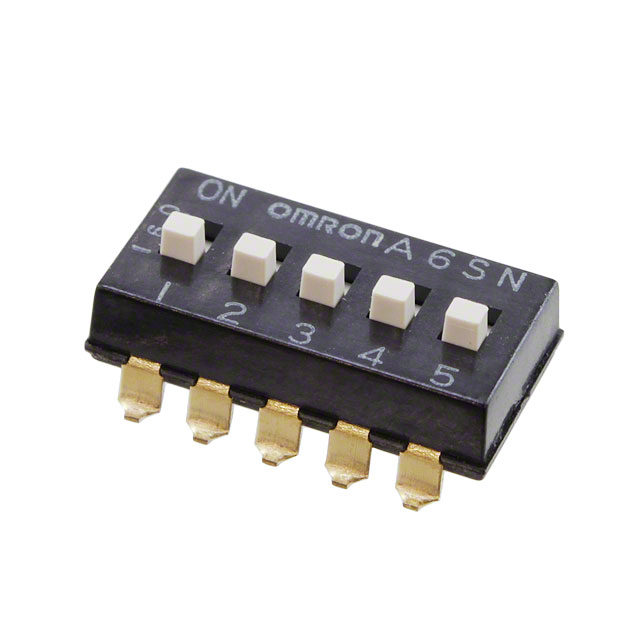

Omron Electronics Inc-EMC Div A6SN-5104			1000 Cycles	25 mA	5.45 mm	0.214 in	85 °C	-30 ░C		2.54 mm	0.1 "	Slide (Standard)	SPST	Surface Mount	Raised	Gull Wing	24 VDC	5	14.63 mm	0.576 in
