516-056 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

516 SERIES RACK & PANEL CONNECTO

...

Part	Note	Connector Usage	Mounting Type	Number of Rows	Features	Pitch	Pitch	Number of Positions	Color	Connector Style	Connector Type
EDAC Inc. 516-056-000-330	Contacts Not Included	Plug	Free Hanging (In-Line)	9	Backshell	3.81 mm	0.15 in	56	Gray	Rack and Panel	Housing for Non-Gendered Contacts
EDAC Inc. 516-056-540-121	Contacts Not Included	Plug	Free Hanging (In-Line)	9	Backshell Guide Pin Jackscrew	3.81 mm	0.15 in	56	Green	Rack and Panel	Housing for Non-Gendered Contacts

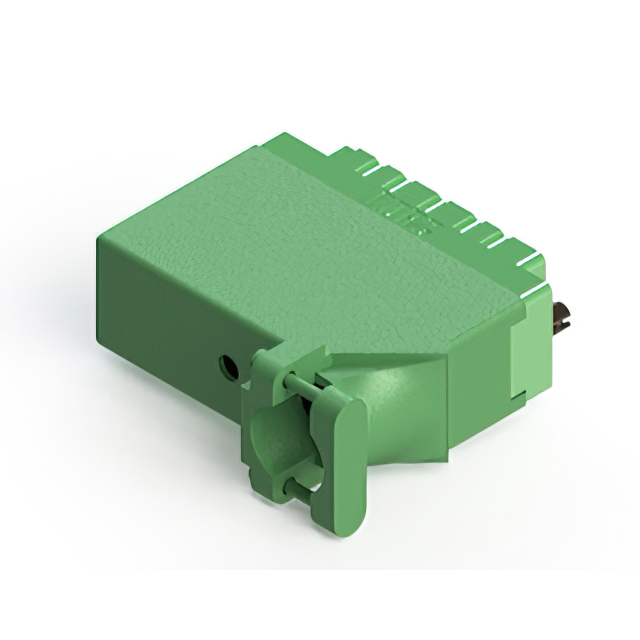

EDAC Inc. 516-056-541-632	Contacts Not Included	Receptacle	Free Hanging (In-Line)	9	Backshell Jackscrew Socket Mating Guide	3.81 mm	0.15 in	56	Green	Rack and Panel	Housing for Non-Gendered Contacts

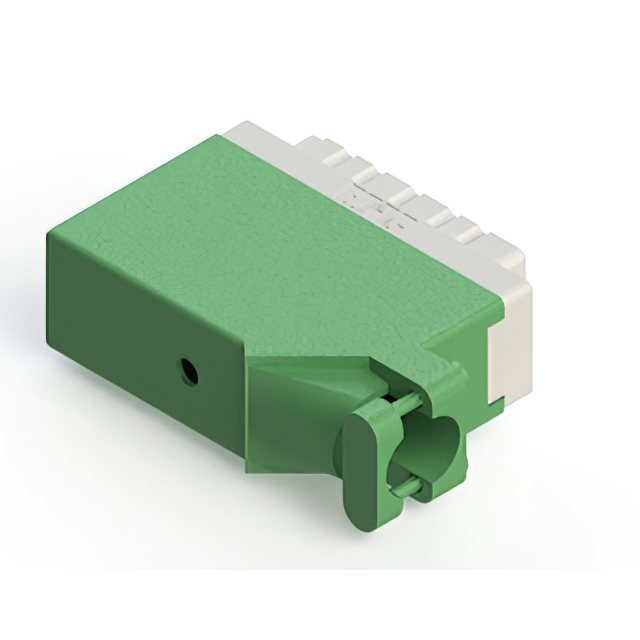

EDAC Inc. 516-056-540-420	Contacts Not Included	Receptacle	Free Hanging (In-Line)	9	Backshell	3.81 mm	0.15 in	56	Gray	Rack and Panel	Housing for Non-Gendered Contacts
EDAC Inc. 516-056-500-402	Contacts Not Included	Receptacle		9	Jackscrew Socket Mating Guide	3.81 mm	0.15 in	56	Gray	Rack and Panel	Housing for Non-Gendered Contacts

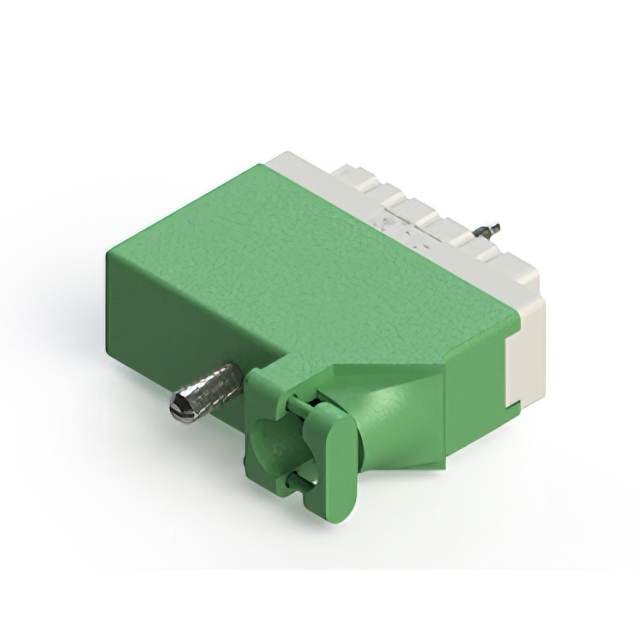

EDAC Inc. 516-056-541-415	Contacts Not Included	Receptacle	Free Hanging (In-Line)	9	Backshell Jackscrew	3.81 mm	0.15 in	56	Gray	Rack and Panel	Housing for Non-Gendered Contacts

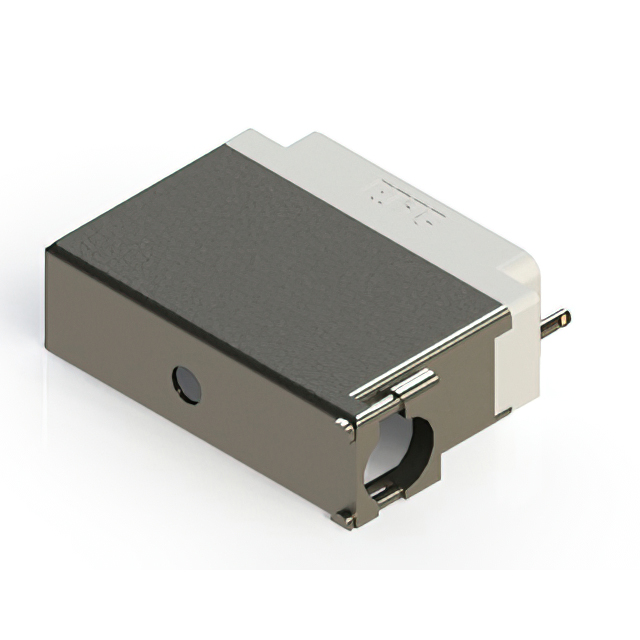

EDAC Inc. 516-056-000-352	Contacts Not Included	Plug	Free Hanging (In-Line)	9	Backshell Guide Pin Jackscrew Socket	3.81 mm	0.15 in	56	Gray	Rack and Panel	Housing for Non-Gendered Contacts

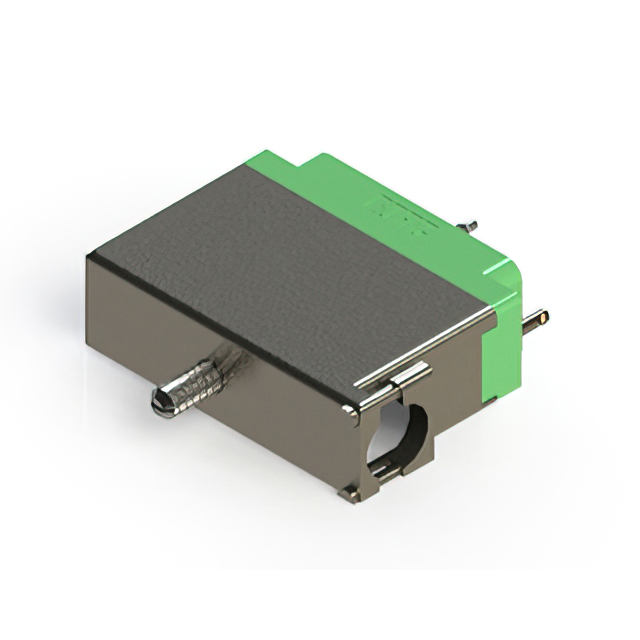

EDAC Inc. 516-056-542-151	Contacts Not Included	Plug	Free Hanging (In-Line)	9	Backshell Guide Pin Jackscrew	3.81 mm	0.15 in	56	Green	Rack and Panel	Housing for Non-Gendered Contacts

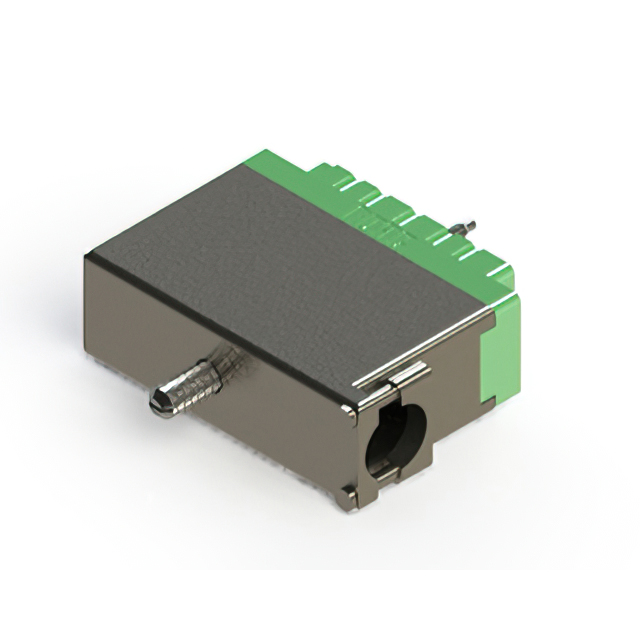

EDAC Inc. 516-056-520-255	Contacts Not Included	Receptacle	Free Hanging (In-Line)	9	Backshell Jackscrew	3.81 mm	0.15 in	56	Green	Rack and Panel	Housing for Non-Gendered Contacts

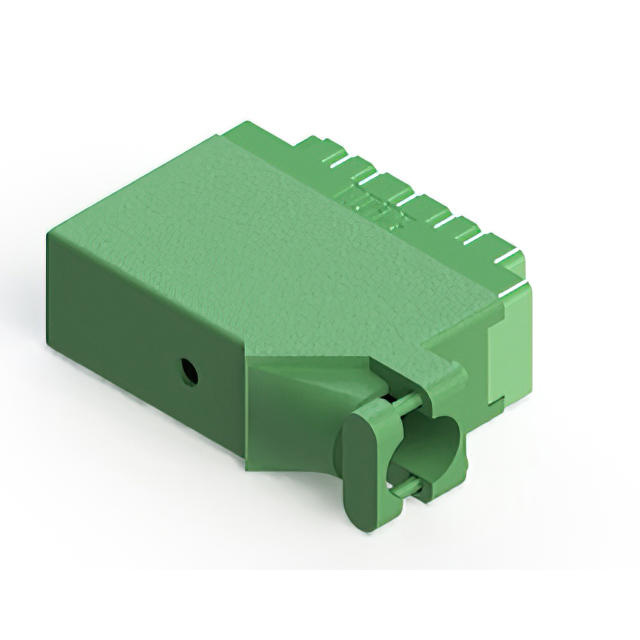

EDAC Inc. 516-056-500-226	Contacts Not Included	Receptacle	Free Hanging (In-Line)	9	Backshell Jackscrew Socket	3.81 mm	0.15 in	56	Green	Rack and Panel	Housing for Non-Gendered Contacts
