XDMDK14 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7SEG 0.56" DBL RED 18DIP
| Part | Display Type | Color | Current - Test | Wavelength - Peak | Voltage - Forward (Vf) (Typ) | Digit/Alpha Size | Digit/Alpha Size | Power Dissipation (Max) [Max] | Common Pin | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Millicandela Rating | Package / Case [x] | Package / Case [x] | Package / Case | Number of Characters | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

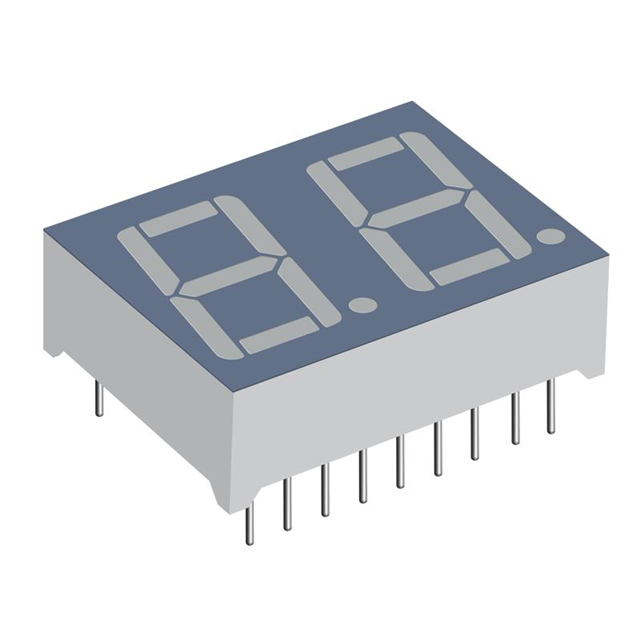

 SunLED | 7-Segment | Red | 10 mA | 645 nm | 1.85 V | 0.56 in | 14.22 mm | 75 mw | Common Anode | 0.315 in | 19.05 mm | 0.984 " | 0.75 in | 8 mm | 25 mm | 24 mcd | 15.24 mm | 0.6 in | 18-DIP | 2 | ||
 SunLED | 7-Segment | Red | 10 mA | 645 nm | 1.85 V | 0.56 in | 14.22 mm | 75 mw | Common Anode | 22 mcd | 12-DIP | 3 | 15.24 mm | 0.6 in | ||||||||

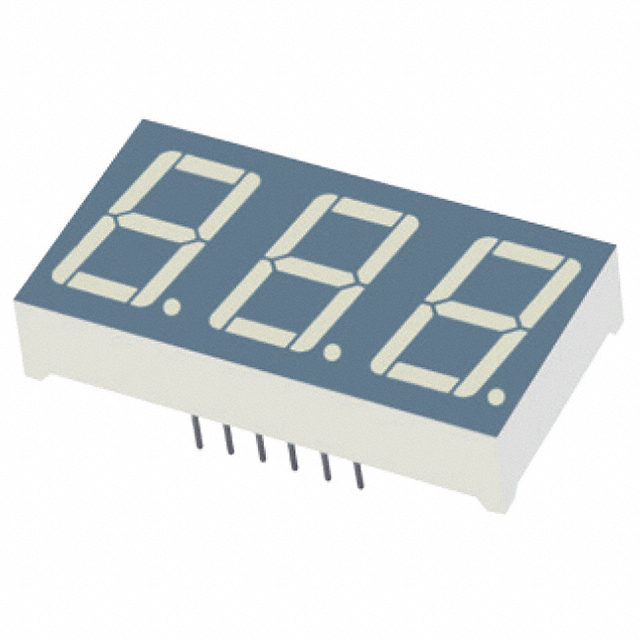

 SunLED | 7-Segment | Red | 10 mA | 645 nm | 1.85 V | 0.56 in | 14.22 mm | 75 mw | Common Cathode | 22 mcd | 12-DIP | 3 | 15.24 mm | 0.6 in |
