178326 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

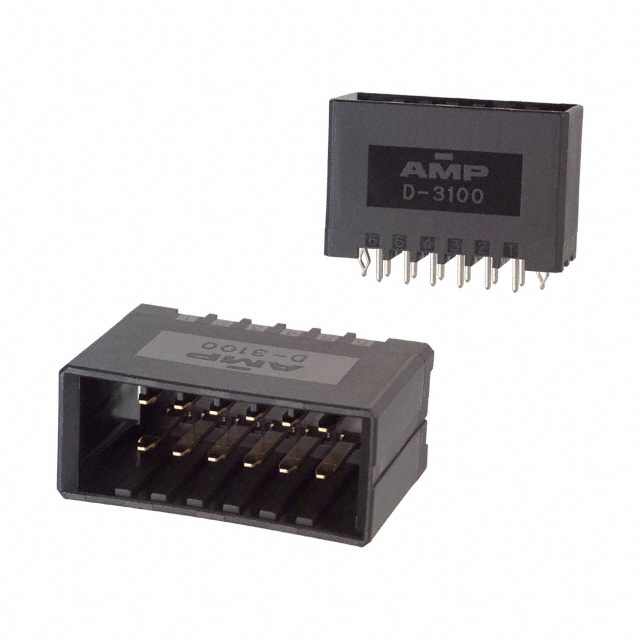

CONN SHROUDED HEADER (4 SIDES) HDR 12 POS 3.81MM SOLDER ST THRU-HOLE TUBE
| Part | Number of Positions | Insulation Height | Insulation Height | Number of Rows | Contact Shape | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Shrouding | Connector Type | Voltage Rating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post | Applications | Style | Material Flammability Rating | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Insulation Material | Mounting Type | Insulation Color | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 | 0.85 in | 21.59 mm | 2 | Rectangular | Gold PdNi +Gold | 30 Áin | 0.76 Ám | Tab | Shrouded - 4 Wall | Header | 250 VDC | 5.08 mm | 0.2 " | Tin | General Purpose Industrial | Board to Board Cable | UL94 V-0 | Copper Alloy | Solder | 105 ░C | -55 °C | 3.81 mm | 0.15 in | Glass Filled Polyester Thermoplastic | Through Hole | Black | 0.15 in | 3.81 mm | All | Detent Lock |
