9401-7583 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

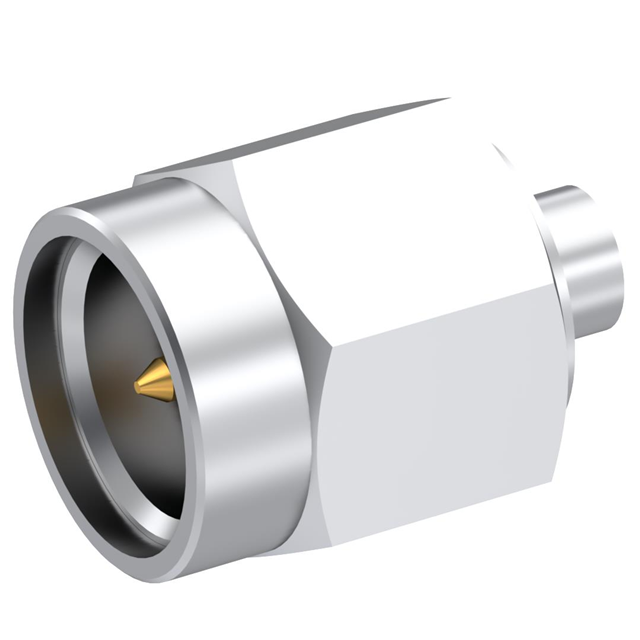

SMA M STR NA SD .141
| Part | Body Material | Body Finish | Center Contact Plating | Dielectric Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Housing Color | Center Contact Material | Impedance | Fastening Type | Number of Ports | Connector Style | Shield Termination | Connector Type | Contact Termination | Mounting Type | Frequency - Max [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Nickel | Gold | Polytetrafluoroethylene (PTFE) | 500 | 105 ░C | -65 ░C | 500 V | Silver | Beryllium Copper | 50 Ohms | Threaded | 1 | SMA | Solder | Plug Male Pin | Solder | Free Hanging (In-Line) | 18 GHz | |
 Radiall USA, Inc. | Stainless Steel | Nickel | Gold | Polytetrafluoroethylene (PTFE) | 500 | 105 ░C | -65 ░C | 350 VDC | Silver | Beryllium Copper | 50 Ohms | Threaded | 1 | SMA | Solder | Plug Male Pin | Solder | Free Hanging (In-Line) | 18 GHz | RG-405 (.085" Semi Rigid) |
