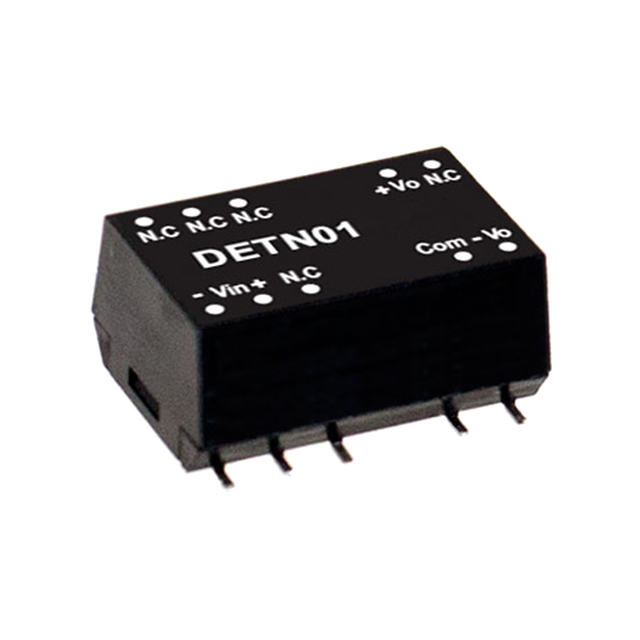

DETN01 Series

Catalog

DC DC CONVERTER +/-15V 1W

Part	Voltage - Output 1	Voltage - Output 2	Number of Outputs	Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Applications	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Efficiency	Current - Output (Max)	Current - Output (Max)
MEAN WELL USA Inc. DETN01N-15	15 V	-15 V	2	Isolated Module	21.6 V	3000 V	ITE (Commercial)	SCP	90 °C	-40 °C	0.42 "	15.2 mm	10.7 mm	7.1 mm	0.28 "	0.6 "	34 mA	34 mA	26.4 V	12-SMD Module 10 Leads	Surface Mount	78 %
MEAN WELL USA Inc. DETN01L-15	15 V	-15 V	2	Isolated Module	4.5 V	3000 V	ITE (Commercial)	SCP	90 °C	-40 °C	0.42 "	15.2 mm	10.7 mm	7.1 mm	0.28 "	0.6 "	34 mA	34 mA	5.5 V	12-SMD Module 10 Leads	Surface Mount	80 %
MEAN WELL USA Inc. DETN01L-05	5 V	-5 V	2	Isolated Module	4.5 V	3000 V	ITE (Commercial)	SCP	90 °C	-40 °C	0.42 "	15.2 mm	10.7 mm	7.1 mm	0.28 "	0.6 "			5.5 V	12-SMD Module 10 Leads	Surface Mount	78 %	100 mA	100 mA
