TPS72718 Series

Catalog

EVAL MODULE FOR TPS72718DSE-406

Part	Board Type	Supplied Contents	Utilized IC / Part	Regulator Type	Voltage - Output	Channels per IC	Current - Output	Contents	Output Configuration	Voltage - Input (Max) [Max]	Current - Supply (Max) [Max]	Current - Quiescent (Iq)	Number of Regulators	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Mounting Type	Package / Case	PSRR [Min]	PSRR [Max]	Supplier Device Package

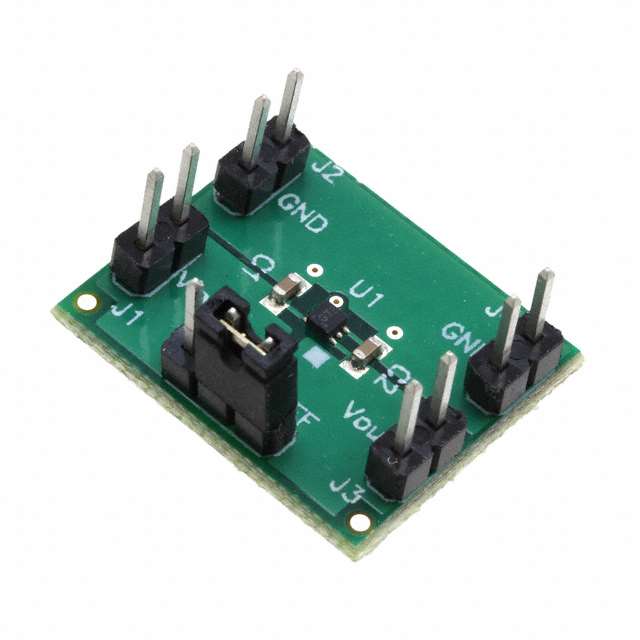

Texas Instruments TPS72718DSEEVM-406	Fully Populated	Board(s)	TPS72718	Positive Fixed	1.8 V	1	0.2 A	Board(s)
Texas Instruments TPS72718DSET							250 mA		Positive	5.5 V	130 µA	110 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	125 °C	-40 C	Enable	1.8 V	0.2 V	Surface Mount	6-WFDFN	45 dB	85 dB
Texas Instruments TPS72718YFFR							250 mA		Positive	5.5 V	130 µA	110 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	125 °C	-40 C	Enable	1.8 V	0.2 V	Surface Mount	4-UFBGA DSBGA	45 dB	85 dB	4-DSBGA (1x1)
Texas Instruments TPS72718YFFT							250 mA		Positive	5.5 V	130 µA	110 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	125 °C	-40 C	Enable	1.8 V	0.2 V	Surface Mount	4-UFBGA DSBGA	45 dB	85 dB	4-DSBGA (1x1)
Texas Instruments TPS72718DSER							250 mA		Positive	5.5 V	130 µA	110 µA	1	Over Current Over Temperature Under Voltage Lockout (UVLO)	125 °C	-40 C	Enable	1.8 V	0.2 V	Surface Mount	6-WFDFN	45 dB	85 dB

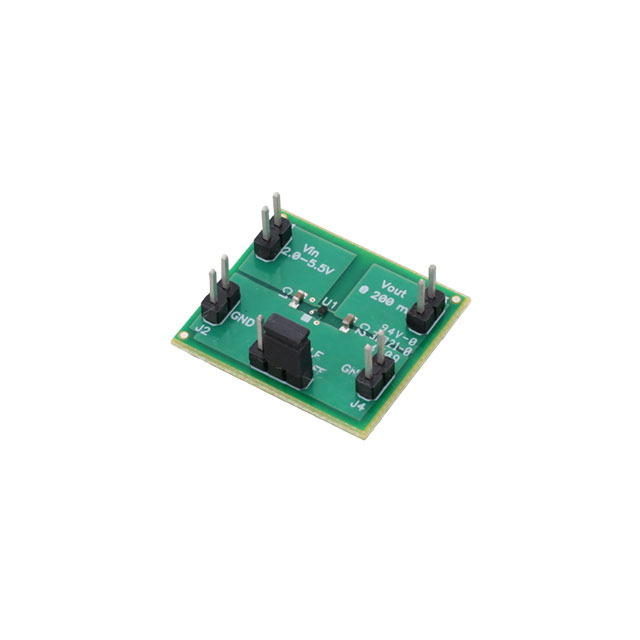

Texas Instruments TPS72718YFFEVM-407	Fully Populated	Board(s)	TPS72718	Positive Fixed	1.8 V	1	250 mA	Board(s)
