FCCS Series

Catalog

FASTENER, FLAT CABLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 72 MM, 7 MM

Part	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Material Flammability Rating	Type Attributes	Height [z]	Height [z]	Opening Size [x]	Opening Size [y]	Opening Size [y]	Opening Size [x]	Color	Mounting Type	Width [x]	Width [x]	Features	Material Thickness [x]	Material Thickness [x]	Length [x]	Length [x]	Panel Hole Size [x]	Panel Hole Size [y]	Panel Hole Size [y]	Panel Hole Size [x]	Material	Type	Length	Length	Material Thickness	Material Thickness	Opening Size [z]	Opening Size [z]

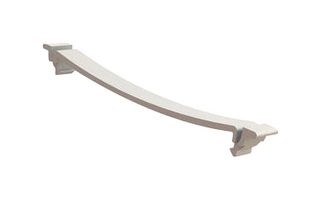

Essentra Components FCCS-5	0.79 mm	1.57 mm	0.062 in	0.031 "	UL94 V-0	Locking	0.29 in	7.36 mm	59.94 mm	0.146 "	3.71 mm	2.36 "	Natural	Push In	0.28 in	7.11 mm	Flame Retardant	0.059 in	1.5 mm	2.83 in	71.88 mm	0.102 "	0.209 "	5.31 mm	2.59 mm	Polyamide (PA66) Nylon 6/6	Clip Flat

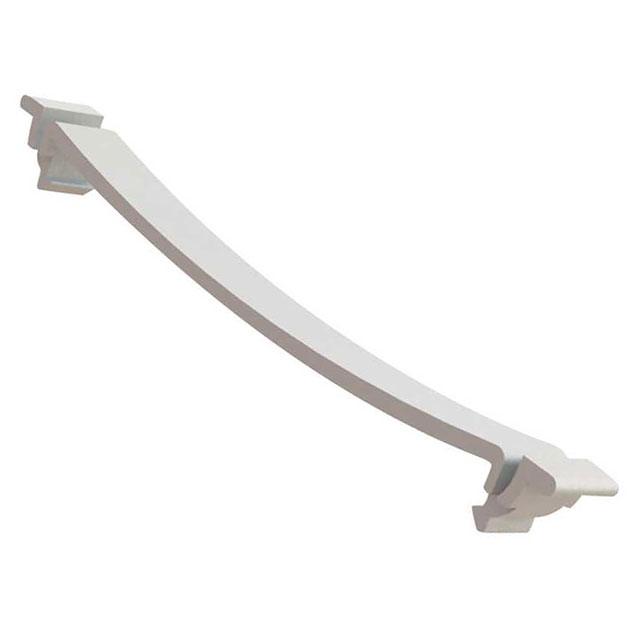

Essentra Components FCCS-1	0.79 mm	1.57 mm	0.062 in	0.031 "	UL94 V-0	Locking	0.29 in	7.36 mm	14.99 mm	0.134 in	3.4 mm	0.59 in	Natural	Push In	0.28 in	7.11 mm	Flame Retardant					0.102 "	0.209 "	5.31 mm	2.59 mm	Polyamide (PA66) Nylon 6/6	Clip Flat	1.06 in	26.92 mm	0.031 "	0.8 mm

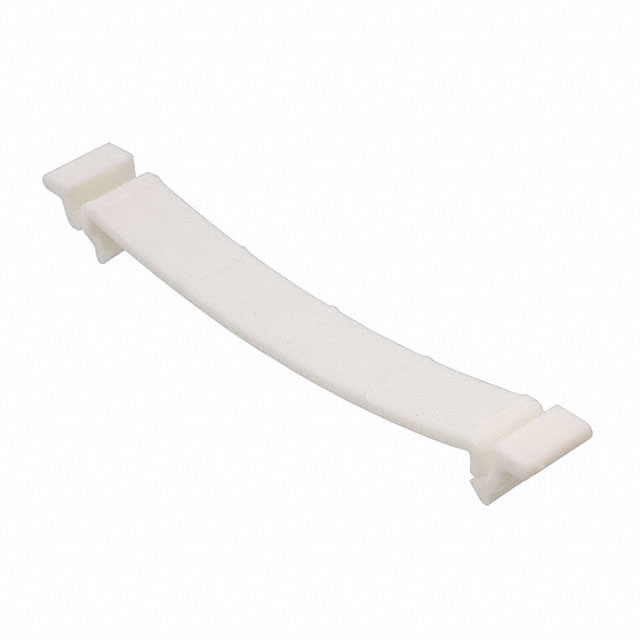

Essentra Components FCCS-4	0.79 mm	1.57 mm	0.062 in	0.031 "	UL94 V-0	Locking	0.29 in	7.36 mm	44.96 mm			1.77 in	Natural	Push In	0.28 in	7.11 mm	Flame Retardant					0.102 "	0.209 "	5.31 mm	2.59 mm	Polyamide (PA66) Nylon 6/6	Clip Flat			0.047 "	1.2 mm	3.71 mm	0.146 "
