SM20B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

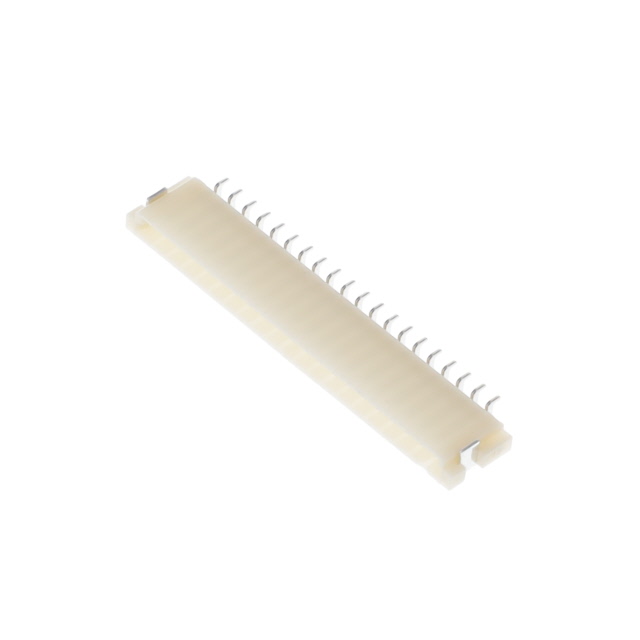

CONN HEADER SMD R/A 20POS 1MM
| Part | Termination | Number of Rows | Features | Mounting Type | Style | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Fastening Type | Insulation Color | Contact Shape | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Number of Positions Loaded | Material Flammability Rating | Voltage Rating | Shrouding | Contact Finish - Post | Insulation Material | Connector Type | Contact Finish - Mating | Insulation Height | Insulation Height | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | 1 | Solder Retention | Right Angle Surface Mount | Board to Cable/Wire | 20 | 1 mm | 0.039 in | 0.069 in | 1.75 mm | Push-Pull | Natural | Rectangular | Phosphor Bronze | 85 °C | -25 °C | Outer Shroud Contact | All | UL94 V-0 | 50 V | Shrouded - 4 Wall | Tin | Nylon Polyamide (PA) | Header | ||||
 JST Sales America Inc. | Solder | Solder Retention | Right Angle Surface Mount | Board to Cable/Wire | 20 | 1 mm | 0.039 in | Latch Holder | Natural | Phosphor Bronze | 85 °C | -25 °C | Non-Gendered | All | UL94 V-0 | 50 V | Shrouded - 4 Wall | Nylon Polyamide (PA) | Header | Gold | 0.215 in | 5.45 mm | 2 |
