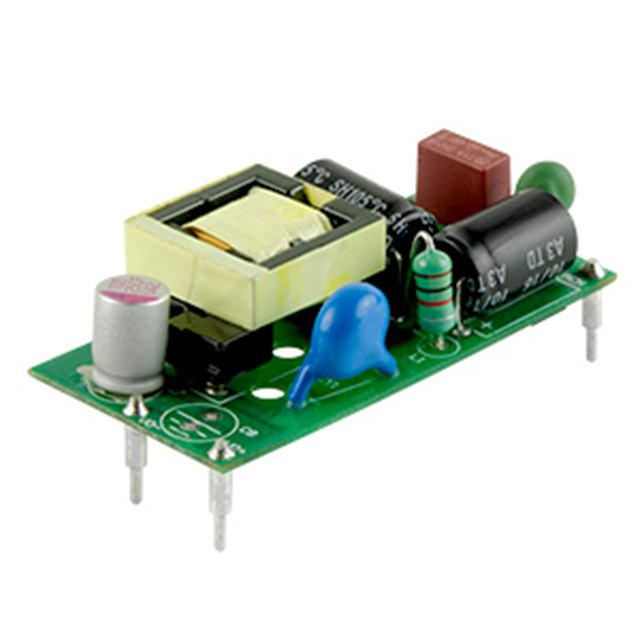

VOF-6B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 15V 6W
| Part | Load Regulation | Voltage - Output 1 | Approval Agency | Line Regulation | Features | Standard Number | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Type | Number of Outputs | Package / Case | Current - Output (Max) [Max] | Efficiency | Load Regulation | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 3 % | 15 V | CB Scheme EN FCC IEC UL | 1 % | Universal Input | 60950-1 61000-3-2 61000-3-3 62368-1 | 1.91 in | 48.6 mm | 16.2 mm | 0.92 " | 23.3 mm | 0.64 in | 6 W | ITE (Commercial) | -25 °C | 70 °C | Through Hole | Open Frame | 1 | 4-DIP Module | 400 mA | 79.03 % | |||
CUI Inc. | 5 V | CB Scheme EN FCC IEC UL | 1 % | Universal Input | 60950-1 61000-3-2 61000-3-3 62368-1 | 1.91 in | 48.6 mm | 16.2 mm | 0.92 " | 23.3 mm | 0.64 in | 6 W | ITE (Commercial) | -25 °C | 70 °C | Through Hole | Open Frame | 1 | 4-DIP Module | 1.2 A | 75.18 % | ±5% | |||
CUI Inc. | 3 % | 24 V | CB Scheme EN FCC IEC UL | 1 % | Universal Input | 60950-1 61000-3-2 61000-3-3 62368-1 | 1.91 in | 48.6 mm | 16.2 mm | 0.92 " | 23.3 mm | 0.64 in | 6 W | ITE (Commercial) | -25 °C | 70 °C | Through Hole | Open Frame | 1 | 4-DIP Module | 250 mA | 79.03 % | 85 VAC 120 VDC | 264 VAC 370 VDC | |
CUI Inc. | 4 % | 12 V | CB Scheme EN FCC IEC UL | 1 % | Universal Input | 60950-1 61000-3-2 61000-3-3 62368-1 | 1.91 in | 48.6 mm | 16.2 mm | 0.92 " | 23.3 mm | 0.64 in | 6 W | ITE (Commercial) | -25 °C | 70 °C | Through Hole | Open Frame | 1 | 4-DIP Module | 500 mA | 79.03 % | 85 VAC 120 VDC | 264 VAC 370 VDC |
