ALD114804 Series
Manufacturer: Advanced Linear Devices Inc.
Beta
⌘K
MOSFET 4N-CH 10.6V 16PDIP
| Part | Vgs(th) (Max) | Package Length | Package Name | Package Width | Mounting Type | FET Feature | Drain to Source Voltage (Vdss) | Power - Max | Configuration | Channel Count | Operating Temperature (Max) | Operating Temperature (Min) | Technology | Current - Continuous Drain (Id) (Typical) | Current - Continuous Drain (Id) (Maximum) | Rds On (Max) | Input Capacitance (Ciss) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

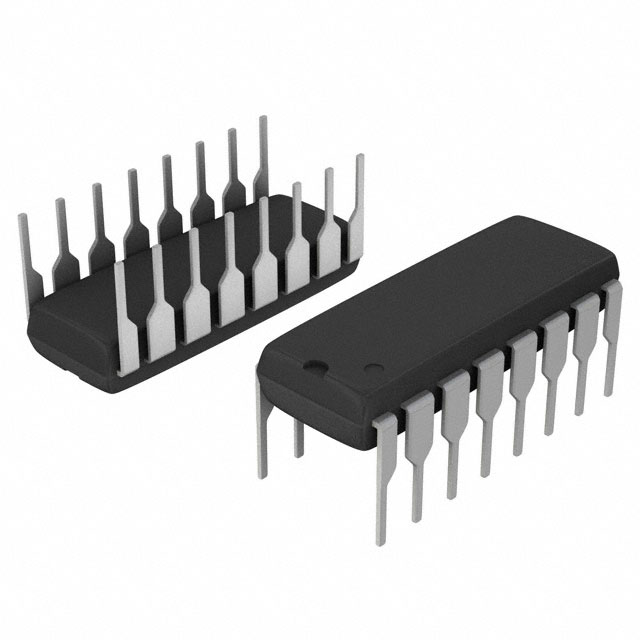

 Advanced Linear Devices Inc. | 380 mV | 0.3 in | 16-DIP 16-PDIP | 7.62 mm | Through Hole | Depletion Mode | 10.6 V | 0.5 W | Matched Pair N-Channel | 4 | 70 °C | 0 °C | MOSFET (Metal Oxide) | 12 mA | 3 mA | 500 Ohm | 2.5 pF |
