807-016 Series
Manufacturer: EDAC Inc.
Beta
⌘K

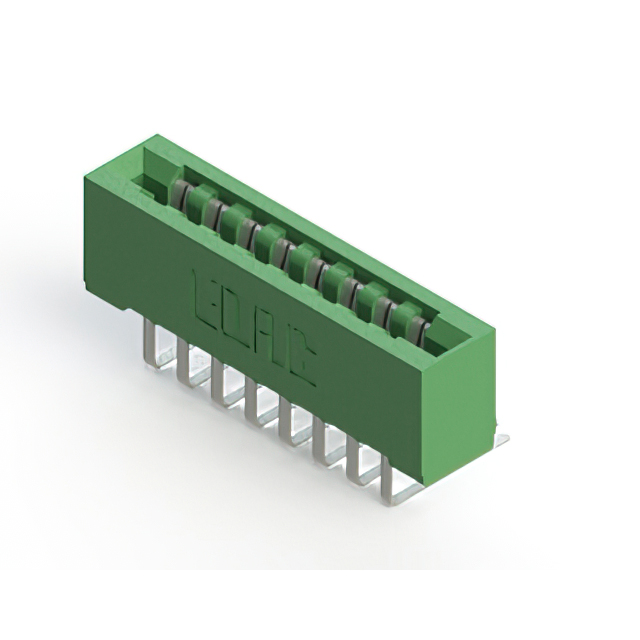

CONN EDGE DUAL FMALE 32POS 0.156
| Part | Card Type | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Gender | Termination | Pitch | Pitch | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows [custom] | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Material | Termination Rows [custom] | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Non Specified - Dual Edge | 1 | Diallyl Phthalate (DAP) | 16 | Green | 125 °C | -40 C | Through Hole | Female | Solder | 3.96 mm | 0.156 in | Dual | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 2 | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | |||||
 EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 8 | Green | 125 °C | -40 C | Right Angle Through Hole | Female | Solder | 3.96 mm | 0.156 in | Single | 2 | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 2 | 16 | |||||||
 EDAC Inc. | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 16 | Green | 125 °C | -40 C | Through Hole | Female | Wire Wrap | 3.96 mm | 0.156 in | Single | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 16 | 1 | |||||||
 EDAC Inc. | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 16 | Green | 125 °C | -40 C | Through Hole | Female | Wire Wrap | 3.96 mm | 0.156 in | Single | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 16 | 1 | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 16 | Green | 125 °C | -40 C | Right Angle Through Hole | Female | Solder | 3.96 mm | 0.156 in | Single | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 16 | 1 | |||||||
 EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 8 | Green | 125 °C | -40 C | Through Hole | Female | Solder Eyelet(s) | 3.96 mm | 0.156 in | Dual | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 2 | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 2 | 16 | ||||
 EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 8 | Green | 125 °C | -40 C | Through Hole | Female | Solder | 3.96 mm | 0.156 in | Dual | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 2 | 16 | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Non Specified - Dual Edge | 1 | Diallyl Phthalate (DAP) | 16 | Green | 125 °C | -40 C | Right Angle Through Hole | Female | Solder | 3.96 mm | 0.156 in | Dual | 2 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 0.25 Ám | 10 Áin | ||||||
 EDAC Inc. | Non Specified - Single Edge | 1 | Diallyl Phthalate (DAP) | 16 | Green | 125 °C | -40 C | Through Hole | Female | Solder Eyelet(s) | 3.96 mm | 0.156 in | Single | 4-40 Flush Mount Threaded Insert Top Opening | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 16 | 1 | ||||||
 EDAC Inc. | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 8 | Green | 125 °C | -40 C | Right Angle Through Hole | Female | Solder | 3.96 mm | 0.156 in | Single | Flush Mount M3 Threaded Insert Top Opening | 2 | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Semi Bellows | Copper Alloy | 2 | 16 |
