SG7050CCN Series
Manufacturer: EPSON
Beta
⌘K

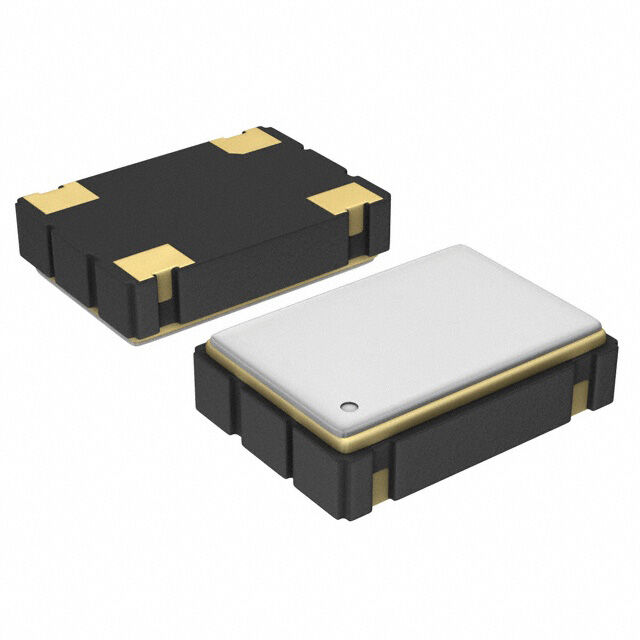

SG7050CCN 10.000000M-HJGA0: XTAL
| Part | Current - Supply (Disable) (Max) [Max] | Base Resonator [custom] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current - Supply (Max) [Max] | Type | Function | Height - Seated (Max) [Max] | Height - Seated (Max) | Supplier Device Package | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency Stability | Package / Case | Frequency | Output | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 mA | Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 10 MHz | CMOS | |||
10 mA | Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 12 MHz | CMOS | |||
10 mA | Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 3.579545 MHz | CMOS | |||
10 mA | Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 12.288 MHz | CMOS | 5.5 V | 4.5 V | |
10 mA | Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 18.432 MHz | CMOS | |||
10 mA | Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 6 MHz | CMOS | 5.5 V | 4.5 V | |
Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 20 MHz | CMOS | ||||
10 mA | Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 27 MHz | CMOS | |||
10 mA | Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 14.7456 MHz | CMOS | 5.5 V | 4.5 V | |
Crystal | 5 mm | 7 mm | 0.197 " | 0.276 " | 20 mA | XO (Standard) | Enable/Disable | 0.059 " | 1.5 mm | 4-SMD (7x5) | Surface Mount | 85 °C | -40 C | 50 ppm | 4-SMD No Lead | 48 MHz | CMOS |
