419-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN SPRING TARGET 8POS PCB

...

Part	Number of Contacts	Pitch	Pitch	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Material	Contact Finish	Number of Rows [custom]	Row Spacing	Row Spacing	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 419-10-208-00-002000	8	0.1 "	2.54 mm	Through Hole	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "

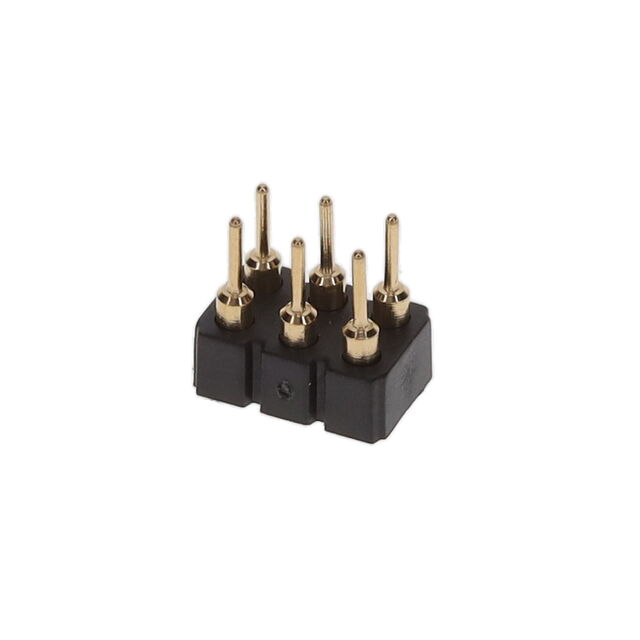

Mill-Max Manufacturing Corp. 419-10-206-00-001000	6	0.1 "	2.54 mm	Through Hole	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "
Mill-Max Manufacturing Corp. 419-10-246-30-007000	46	0.1 "	2.54 mm	Surface Mount	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "
Mill-Max Manufacturing Corp. 419-10-254-00-001000	54	0.1 "	2.54 mm	Through Hole	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "
Mill-Max Manufacturing Corp. 419-10-252-00-001000		0.1 "	2.54 mm	Through Hole	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "	52
Mill-Max Manufacturing Corp. 419-10-258-00-002000	58	0.1 "	2.54 mm	Through Hole	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "
Mill-Max Manufacturing Corp. 419-10-246-00-005000	46	0.1 "	2.54 mm	Through Hole	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "
Mill-Max Manufacturing Corp. 419-10-224-30-007000		0.1 "	2.54 mm	Surface Mount	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "	24
Mill-Max Manufacturing Corp. 419-10-248-30-007000	48	0.1 "	2.54 mm	Surface Mount	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "
Mill-Max Manufacturing Corp. 419-10-210-30-041000	10	0.1 "	2.54 mm	Surface Mount	Mating Target	0.25 Ám	10 Áin	Brass Alloy	Gold	2	2.54 mm	0.1 "
