R19191 Series

Catalog

QMA MALE - SMA MALE STRAIGHT ADA

Part	Body Material	Center Contact Material	Body Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Impedance	Center Gender	Fastening Type	Frequency - Max [Max]	Convert From (Adapter End)	Center Contact Plating	Style	Convert To (Adapter End)	Mounting Type	Conversion Type
Radiall USA, Inc. R191910000	Brass	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	80 °C	-40 C	Plug to Plug	50 Ohms	Male to Male	Snap-On Threaded	6000 MHz	Male Pin SMA Plug	Gold	Straight	QMA Plug Male Pin	Free Hanging (In-Line)	Between Series

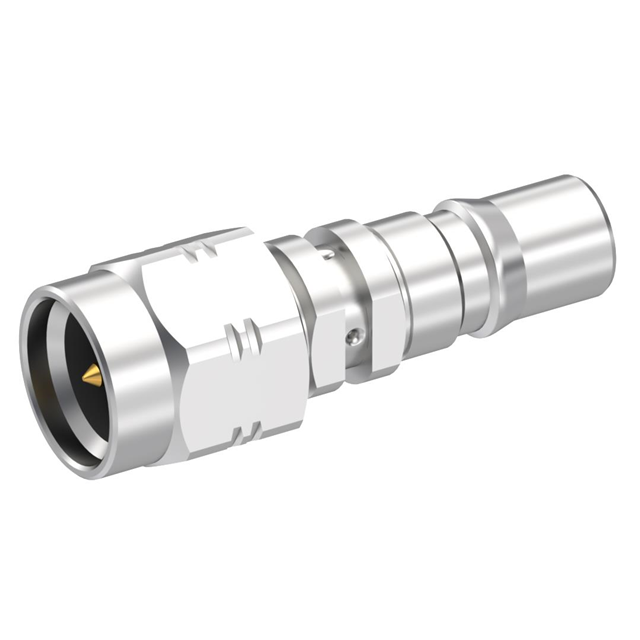

Radiall USA, Inc. R191912000	Brass	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	80 °C	-40 C	Plug to Jack	50 Ohms		Snap-On Threaded	6000 MHz	Male Pin SMA Plug	Gold	Straight	QMA Jack Female Socket	Free Hanging (In-Line)	Between Series

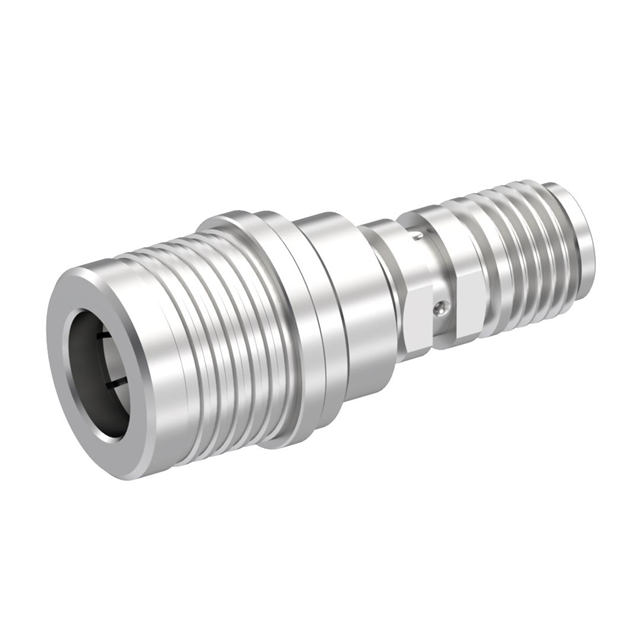

Radiall USA, Inc. R191911000	Brass	Beryllium Copper		Polytetrafluoroethylene (PTFE)	80 °C	-40 C	Plug to Jack	50 Ohms			6000 MHz	QMA Plug Male Pin	Gold	Straight	SMA Jack Female Socket	Free Hanging (In-Line)	Between Series

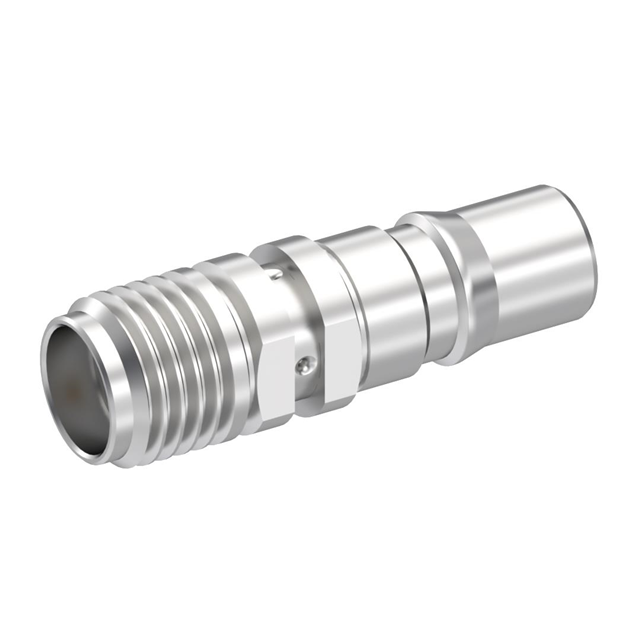

Radiall USA, Inc. R191913000	Brass	Beryllium Copper	White Bronze	Polytetrafluoroethylene (PTFE)	80 °C	-40 C	Jack to Jack	50 Ohms	Female to Female	Snap-On Threaded	6000 MHz	Female Socket SMA Jack	Gold	Straight	QMA Jack Female Socket	Free Hanging (In-Line)	Between Series
