MAX985 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

EVAL BOARD FOR MAX98504

Part	Contents	Utilized IC / Part	Voltage - Input Offset (Max)	Current - Input Bias (Max) [Max]	Output Type	Propagation Delay (Max) [Max]	Hysteresis	Current - Quiescent (Max) [Max]	Supplier Device Package	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	CMRR, PSRR (Typ)	CMRR, PSRR (Typ)	Mounting Type	Number of Elements	Type	Package / Case [y]	Package / Case [x]	Board Type	Supplied Contents	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]
Analog Devices Inc./Maxim Integrated MAX98504EVKIT#	Board(s)	MAX98504
Analog Devices Inc./Maxim Integrated MAX985EXK-T			5 mV	1 pA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	3 mV	24 µA	SC-70-5	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	5-TSSOP SC-70-5 SOT-353	80 dB	80 dB	Surface Mount	1	General Purpose
Analog Devices Inc./Maxim Integrated MAX985ESA			5 mV	1 pA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	3 mV	24 µA	8-SOIC	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	8-SOIC	80 dB	80 dB	Surface Mount	1	General Purpose	3.9 mm	0.154 in
Analog Devices Inc./Maxim Integrated MAX985EUK+T			5 mV	1 pA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	3 mV	24 µA	SOT-23-5	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	SC-74A SOT-753	80 dB	80 dB	Surface Mount	1	General Purpose
Analog Devices Inc./Maxim Integrated MAX985EBT-T			5 mV	1 pA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	3 mV	24 µA	6-WLP	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	6-WFBGA WLBGA	80 dB	80 dB	Surface Mount	1	General Purpose
Analog Devices Inc./Maxim Integrated MAX985EBT+TCNJ			5 mV	1 pA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	3 mV	24 µA	6-WLP	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	6-WFBGA WLBGA	80 dB	80 dB	Surface Mount	1	General Purpose
Analog Devices Inc./Maxim Integrated MAX98512DEVS#		MAX98512																				Fully Populated	Board(s)

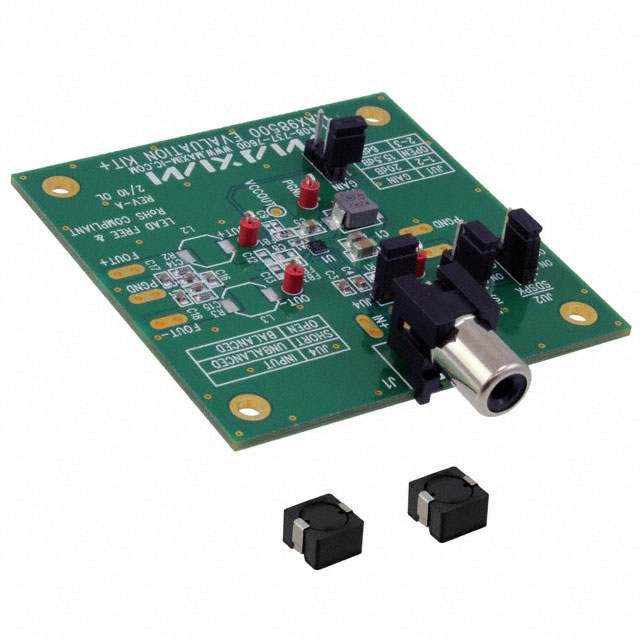

Analog Devices Inc./Maxim Integrated MAX98500EVKIT+		MAX98500			1-Channel (Mono)																	Fully Populated	Board(s)	2.5 V	5.5 V	2.2 W	1
Analog Devices Inc./Maxim Integrated MAX98506EWV+T
Analog Devices Inc./Maxim Integrated MAX985ESA-T			5 mV	1 pA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	3 mV	24 µA	8-SOIC	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	8-SOIC	80 dB	80 dB	Surface Mount	1	General Purpose	3.9 mm	0.154 in
