GB130 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K

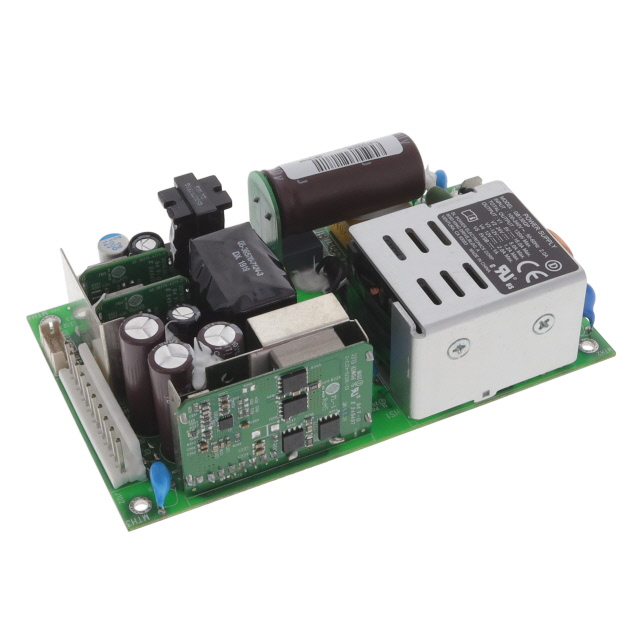

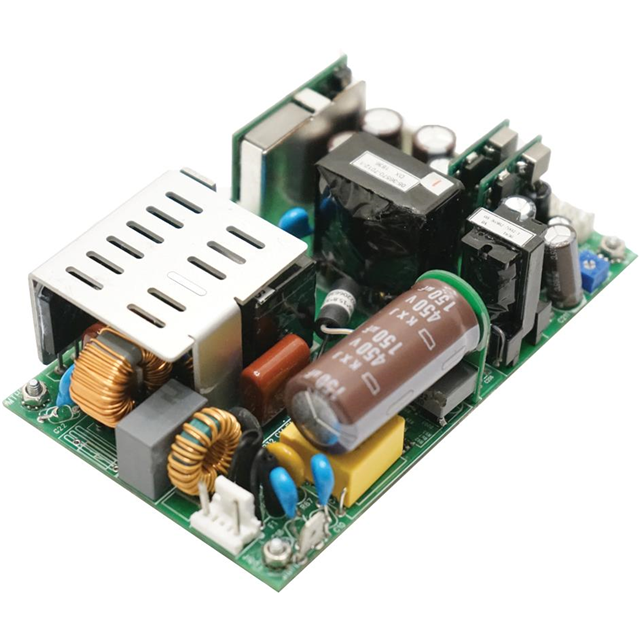

SWITCHING POWER SUPPLIES MED 130W QUAD 5V@16A 12V@4A +/-15V@1.2A
| Part | Minimum Load Required | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Standard Number | Features | Voltage - Output 3 | Type | Efficiency | Current - Output 2 | Mounting Type | Current - Output 4 | Current - Output 1 | Voltage - Isolation | Applications | Voltage - Output 4 | Voltage - Output 2 | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 4 | 264 VAC | 90 VAC | CE cURus DEMKO | 60601-1 60950-1 | Adjustable Output PFC Remote On/Off Standby Output Universal Input | -15 V | Enclosed | 87 % | 3 A | Chassis Mount | 1 A | 12 A | 4000 V | ITE (Commercial) Medical | 15 V | 12 V | 5 V | 5.33 in | 1.79 in | 87.8 mm | 135.5 mm | 3.46 in | 45.4 mm | 126 W 164 W | 70 °C | -20 °C | ||||
 SL POWER / Advanced Energy | 4 | 264 VAC | 90 VAC | CE cURus DEMKO | 60601-1 60950-1 | Adjustable Output PFC Remote On/Off Standby Output Universal Input | -12 V | Open Frame | 87 % | 4 A | Chassis Mount | 2 A | 10 A | 4000 V | ITE (Commercial) Medical | 12 V | 24 V | 5 V | 5 " | 1.24 " | 127 mm | 3 " | 182 W | 70 °C | -20 °C | 76.2 mm | 31.5 mm | 238 W | |||
 SL POWER / Advanced Energy | 4 | 264 VAC | 90 VAC | CE cURus DEMKO | 60601-1 60950-1 | Adjustable Output PFC Remote On/Off Standby Output Universal Input | -12 V | Open Frame | 87 % | 3 A | Chassis Mount | 1 A | 12 A | 4000 V | ITE (Commercial) Medical | 12 V | 12 V | 5 V | 5 " | 1.24 " | 127 mm | 3 " | 120 W 157 W | 70 °C | -20 °C | 76.2 mm | 31.5 mm |
