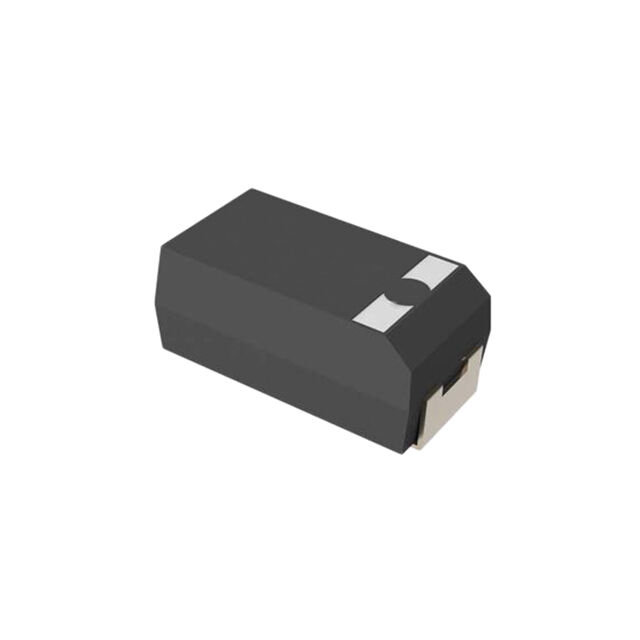

T521X Series
Manufacturer: KEMET
Beta
⌘K
TANTALUM CAPACITORS - POLYMER 35V 47UF 2917 20% ESR=70MOHMS
| Part | Lifetime @ Temp. | Type | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Manufacturer Size Code | Features | Mounting Type | Capacitance | ESR (Equivalent Series Resistance) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 2000 Hrs | Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 125 °C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 47 µF | 70 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 35 V |
KEMET | 2000 Hrs | Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 125 °C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 10 µF | 50 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 63 V |
Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 105 ░C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 10 µF | 50 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 75 V | ||
Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 105 ░C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 100 µF | 30 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 25 VDC | ||
KEMET | 2000 Hrs | Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 105 ░C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 18 µF | 35 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 50 VDC |
KEMET | 2000 Hrs | Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 125 °C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 22 µF | 75 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 63 V |
KEMET | Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 105 ░C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 10 µF | 50 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 75 V | |
2000 Hrs | Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 125 °C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 22 µF | 75 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 63 V | |
KEMET | 2000 Hrs | Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 125 °C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 220 µF | 35 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 16 V |
KEMET | 2000 Hrs | Molded | 20 % | 0.169 in | 4.3 mm | -55 C | 125 °C | 2917 (7343 Metric) | X | General Purpose | Surface Mount | 15 µF | 150 mOhm | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 63 V |
