T41710 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR CONNECTOR, A CODED, M12, MALE, 2 POSITIONS, PIN, STRAIGHT PANEL MOUNT

Part	Contact Finish Thickness - Mating	Insert Material [custom]	Insert Material [custom]	Applications	Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type	Ingress Protection	Orientation	Color	Mounting Feature	Shell Finish	Number of Positions	Voltage Rating	Primary Material	Contact Finish - Mating	Shielding	Shell Size - Insert	Shell Material	Termination	Material Flammability Rating	Fastening Type	1st Connector Gender	Cable Type	Length	Length	1st Connector Type	1st Connector Number of Positions Loaded	Assembly Configuration	2nd Connector Type	1st Connector Number of Positions	Cable Material	1st Connector Orientation	1st Connector Shell Size - Insert [custom]	1st Connector Mounting Type	Usage	1st Connector Number of Positions Loaded

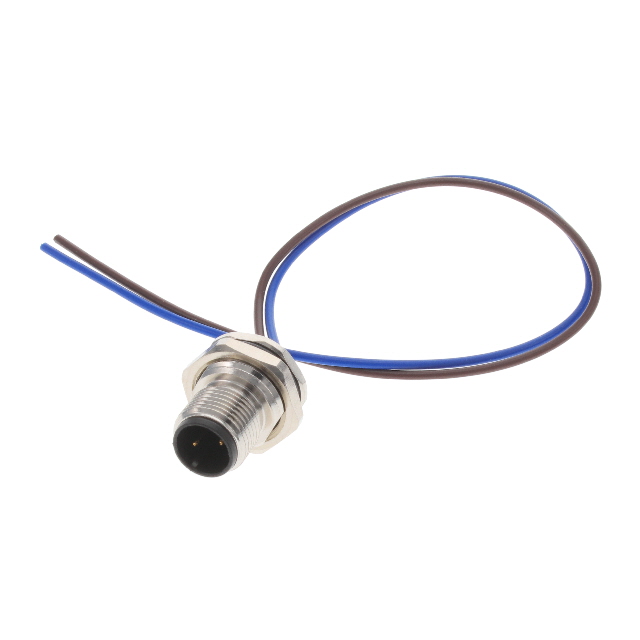

TE Connectivity AMP Connectors T4171010002-001	Flash	Nylon	Polyamide (PA)	Industrial	Copper Alloy	Receptacle Male Pins	85 °C	-40 C	4 A	Panel Mount	IP67 - Dust Tight Waterproof	A	Silver	Bulkhead - Front Side Nut	Nickel	2	250 V	Metal	Gold	Shielded	M12-2	Copper Alloy	Wire Leads	UL94 V-0	Threaded

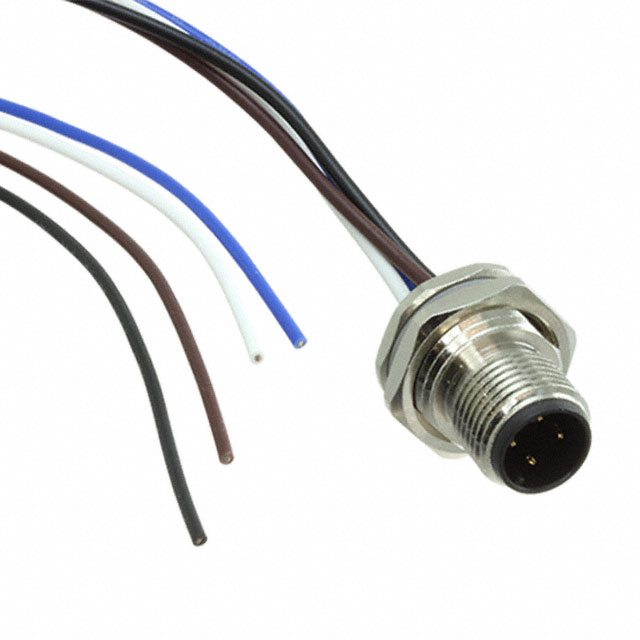

TE Connectivity AMP Connectors T4171010504-001											IP67 - Dust Tight Waterproof		Multiple													Male Pins	Individual	0.66 '	200 mm	Plug	4	Standard	Wire Leads	5	Polyvinyl Chloride (PVC)	D	M12	Panel Mount	Industrial Environments

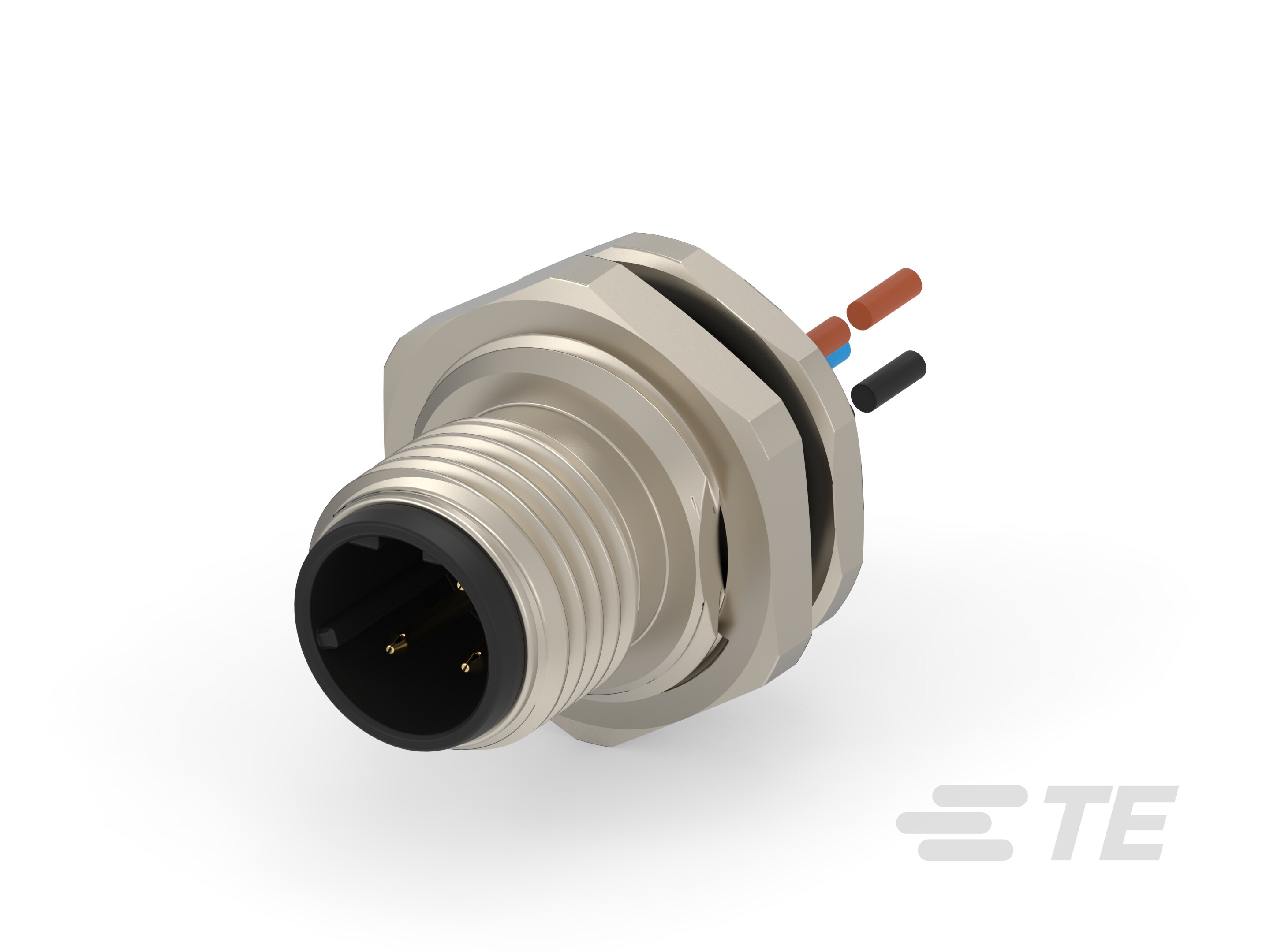

TE Connectivity AMP Connectors T4171010503-001											IP67 - Dust Tight Waterproof		Multiple													Male Pins	Individual	0.66 '	200 mm	Plug	3	Standard	Wire Leads	5	Polyvinyl Chloride (PVC)	D	M12	Panel Mount	Industrial Environments
TE Connectivity AMP Connectors T4171010005-002											IP67 - Dust Tight Waterproof		Multiple													Male Pins	Individual	1.64 ft	50 cm	Plug		Standard	Wire Leads	5	Polyvinyl Chloride (PVC)	A	M12	Panel Mount	Industrial Environments	All
TE Connectivity AMP Connectors T4171010005-001											IP67 - Dust Tight Waterproof		Multiple													Male Pins	Individual	0.66 '	200 mm	Plug		Standard	Wire Leads	5	Polyvinyl Chloride (PVC)	A	M12	Panel Mount	Industrial Environments	All
TE Connectivity AMP Connectors T4171010403-001	Flash	Nylon	Polyamide (PA)	Industrial	Copper Alloy	Receptacle Male Pins	85 °C	-40 C	4 A	Panel Mount	IP67 - Dust Tight Waterproof	B	Silver	Bulkhead - Front Side Nut	Nickel		250 V	Metal	Gold	Shielded	M12-3	Copper Alloy	Wire Leads	UL94 V-0	Threaded

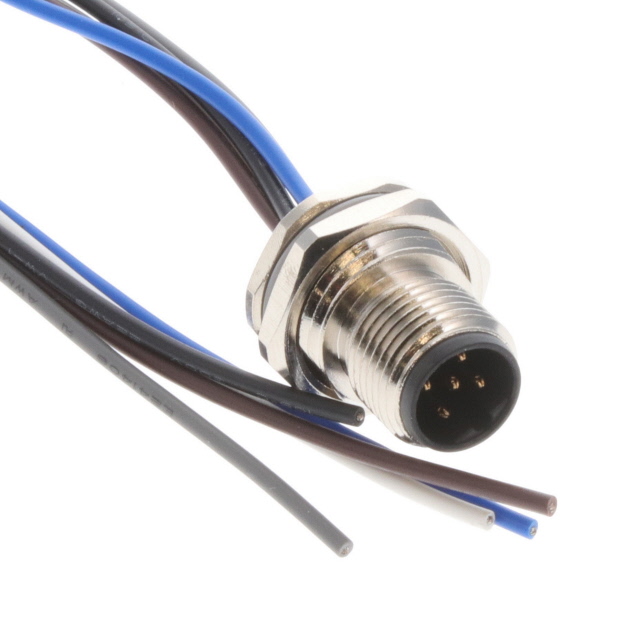

TE Connectivity AMP Connectors T4171010405-001											IP67 - Dust Tight Waterproof		Multiple													Male Pins	Individual	0.66 '	200 mm	Plug		Standard	Wire Leads	5	Polyvinyl Chloride (PVC)	B	M12	Panel Mount	Industrial Environments	All
TE Connectivity AMP Connectors T4171010405-002											IP67 - Dust Tight Waterproof		Multiple													Male Pins	Individual	1.64 ft	50 cm	Plug		Standard	Wire Leads	5	Polyvinyl Chloride (PVC)	B	M12	Panel Mount	Industrial Environments	All
TE Connectivity AMP Connectors T4171010504-002											IP67 - Dust Tight Waterproof		Multiple													Male Pins	Individual	1.64 ft	50 cm	Plug	4	Standard	Wire Leads	5	Polyvinyl Chloride (PVC)	D	M12	Panel Mount	Industrial Environments
TE Connectivity AMP Connectors T4171010003-001											IP67 - Dust Tight Waterproof		Multiple													Male Pins	Individual	0.66 '	200 mm	Plug	3	Standard	Wire Leads	5	Polyvinyl Chloride (PVC)	A	M12	Panel Mount	Industrial Environments
