SGA40E24 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

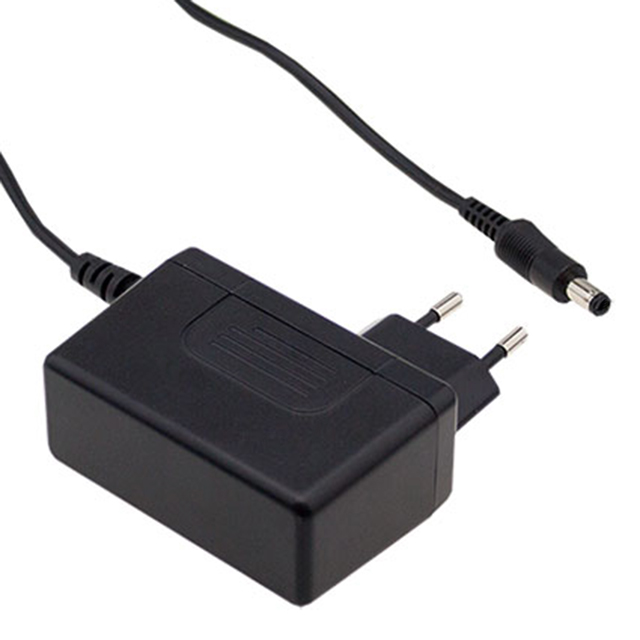

AC/DC WALL MOUNT ADAPTER 24V 40W
| Part | Cord Length | Cord Length | Voltage - Output | Applications | Power (Watts) | Input Type | Polarization | No Load Power Consumption | Current - Output (Max) [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Input Connector | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Form | Region Utilized | Output Connector [x] | Output Connector [diameter] | Output Connector | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1.5 m | 59 in | 24 V | ITE (Commercial) | 40 W | Fixed Blade | Positive Center | 75 mW | 1.67 A | 264 VAC | 90 VAC | CEE 7/16 | CB CE GS | -20 ░C | 50 °C | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | Wall Mount | Europe | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | Level VI |
