ECQ-E1 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP FILM 0.022UF 5% 1KVDC RADIAL

...

Part	Dielectric Material	Termination	Applications	Mounting Type	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Package / Case	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECQ-E10223JF	Polyester Metallized	PC Pins	General Purpose	Through Hole	0.492 in	12.5 mm	16.5 mm	16.51 mm	1 kVDC	1 kV	-40 °C	105 ░C	0.61 in	7.5 mm	0.295 in	15.5 mm	5 %	Radial	0.022 µF
Panasonic Industrial Automation Sales ECQ-E1825KF	Polyester Metallized	PC Pins	General Purpose	Through Hole	0.886 in	22.5 mm	21 mm	0.827 "	100 V		-40 °C	105 ░C	1.024 in	10 mm	0.394 in	26 mm	10 %	Radial	8.2 µF
Panasonic Industrial Automation Sales ECQ-E12153RJF	Polyester Metallized	PC Pins	General Purpose	Through Hole	0.295 in	7.5 mm			1250 V	1.25 kV	-40 °C	105 ░C	0.827 in	6 mm	0.236 in	21 mm	5 %	Radial	15000 pF	18.5 mm	0.728 in
Panasonic Industrial Automation Sales ECQ-E1685KFB	Polyester Metallized	PC Pins	General Purpose	Through Hole	0.591 in	15 mm	23.5 mm	0.925 in	100 V		-40 °C	105 ░C	1.024 in	9 mm	0.354 in	26 mm	10 %	Radial	6.8 ÁF
Panasonic Industrial Automation Sales ECQ-E10183JFB	Polyester Metallized	PC Pins	General Purpose	Through Hole	0.492 in	12.5 mm	20 mm	0.787 "	1 kVDC	1 kV	-40 °C	105 ░C	0.61 in	7.5 mm	0.295 in	15.5 mm	5 %	Radial	0.018 µF

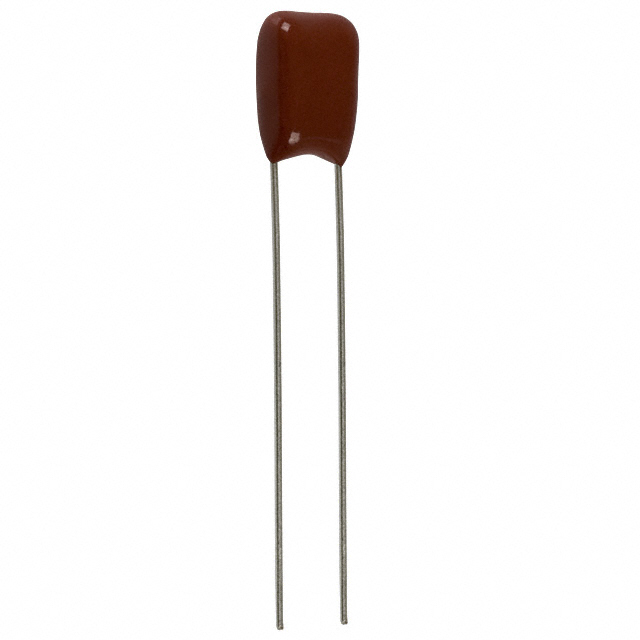

Panasonic Industrial Automation Sales ECQ-E1104KF	Polyester Metallized	PC Pins	General Purpose	Through Hole	0.197 in	5 mm	11 mm	0.433 in	100 V		-40 °C	105 ░C	0.307 in	5 mm	0.197 "	7.8 mm	10 %	Radial	100000 pF
Panasonic Industrial Automation Sales ECQ-E10273JFB	Polyester Metallized	PC Pins	General Purpose	Through Hole	0.492 in	12.5 mm		0.709 "	1 kVDC	1 kV	-40 °C	105 ░C	0.827 in	6 mm	0.236 in	21 mm	5 %	Radial	0.027 µF	18 mm
Panasonic Industrial Automation Sales ECQ-E10123JFB	Polyester Metallized	PC Pins	General Purpose	Through Hole	0.492 in	12.5 mm	17 mm	0.669 in	1 kVDC	1 kV	-40 °C	105 ░C	0.61 in	6 mm	0.236 in	15.5 mm	5 %	Radial	0.012 µF
Panasonic Industrial Automation Sales ECQ-E1104KF3	Polyester Metallized	PC Pins	General Purpose	Through Hole					100 V		-40 °C	105 ░C					10 %	Radial	100000 pF

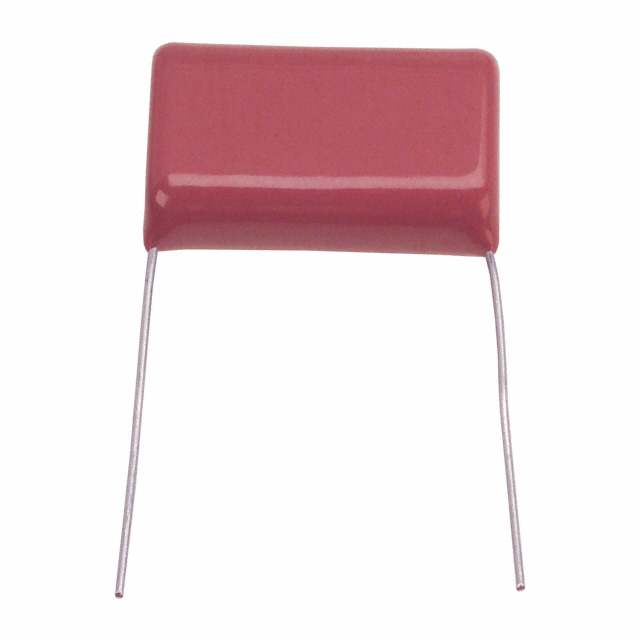

Panasonic Industrial Automation Sales ECQ-E1825KZ	Polyester Metallized	PC Pins	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	1.083 in	27.5 mm	26 mm	1.024 in	100 V		-40 °C	85 °C	1.201 in	15 mm	0.591 in	30.5 mm	10 %	Radial	8.2 µF
