ELFT034 Series
Manufacturer: AMPHENOL PCD
Catalog

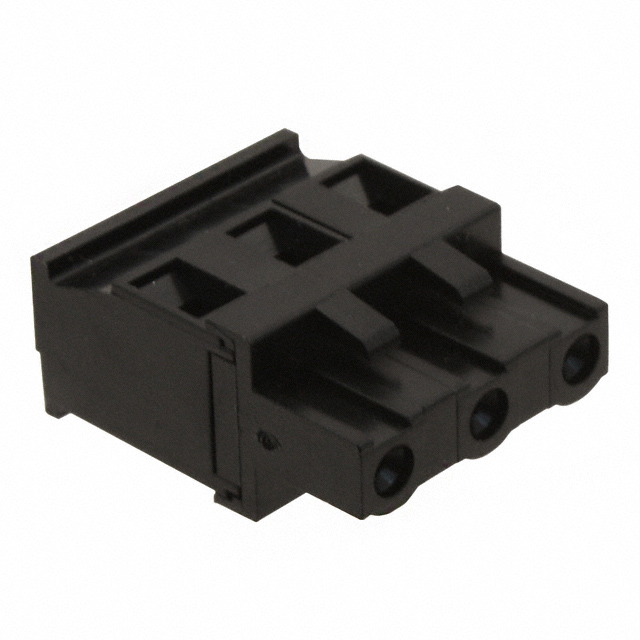

TERM BLOCK PLUG 3POS 7.62MM
| Part | Contact Material | Termination Style | Positions Per Level | Color | Housing Material | Material Flammability Rating | Torque - Screw | Torque - Screw | Contact Mating Finish | Voltage - UL | Type | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Number of Levels | Mounting Type | Plug Wire Entry | Pitch [x] | Pitch [x] | Insulation Height | Insulation Height | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 AMPHENOL PCD | Copper Alloy | Screw - Rising Cage Clamp | 3 | Black | Polyphenylene Oxide (PPO) | UL94 V-0 | 0.79 Nm | 7 Lb-In | Tin | 300 V | Plug Female Sockets | 12 AWG | 26 AWG | 1 | Free Hanging (In-Line) | 90 ° | 0.3 in | 7.62 mm | 26.16 mm | 1.03 " | Retention Latches (Wire Side) |
