34161 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

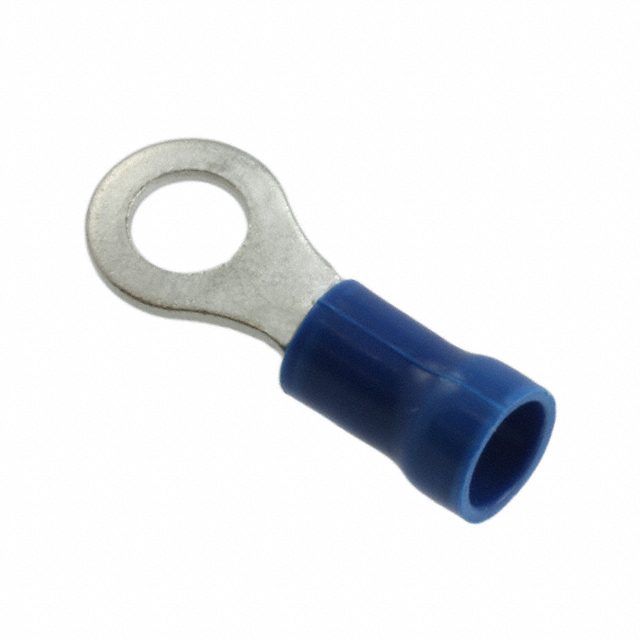

CONN RING CIRC 14-16AWG #10
| Part | Mounting Type | Length - Overall [x] | Length - Overall [x] | Features | Stud/Tab Size | Color | Contact Material | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Type | Material - Insulation | Thickness | Thickness | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 22.12 mm | 0.871 in | Serrated Termination | 10 Stud | Blue | Copper | 4.9 mm | 3 mm | 0.193 in | 0.118 in | Insulated | 0.343 in | 8.71 mm | Circular | Poly-Vinyl Chloride (PVC) | 0.031 in | 0.79 mm | Crimp | Tin |
