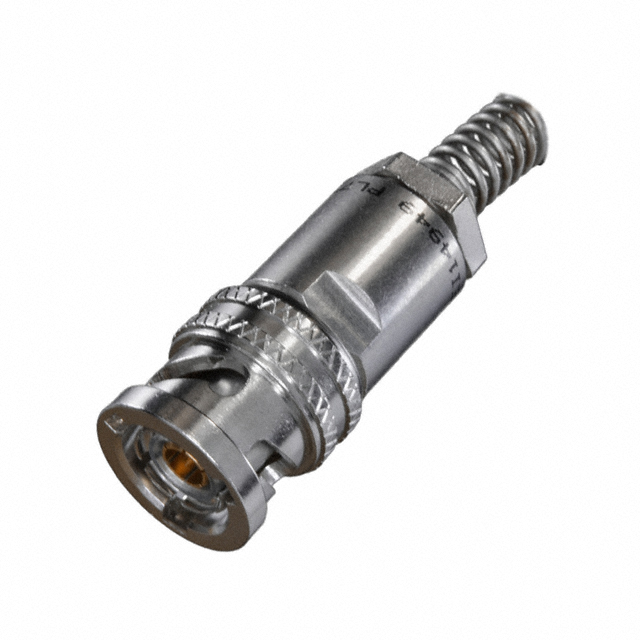

PL75 Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K
CONN TRB PLUG STR SOLDER
| Part | Body Material | Includes | Mating Cycles | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Fastening Type | Shield Termination | Impedance | Connector Type | Contact Termination | Mounting Type | Frequency - Max [Max] | Connector Style | Housing Color | Center Contact Material | Number of Ports | Cable Group | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Trompeter | Brass | 1 Connector 1 Strain Relief | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Wrench Clamp | Non-Constant | Plug Male Pin (Concentric) | Solder | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | M17/176-00002 | Three Lug |
 Cinch Connectivity Solutions Trompeter | Brass | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Wrench Clamp | Non-Constant | Plug Male Pin (Concentric) | Solder | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | Microdot 202-3934 | Three Lug | |
 Cinch Connectivity Solutions Trompeter | Brass | 1 Connector 1 Strain Relief | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Crimp | Non-Constant | Plug Male Pin (Concentric) | Crimp | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | Raychem 252E0114 | Three Lug |
 Cinch Connectivity Solutions Trompeter | Brass | 1 Connector 1 Heat Shrink 1 Strain Relief | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Crimp | Non-Constant | Plug Male Pin (Concentric) | Crimp | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | TRC-75-1 | Three Lug |
 Cinch Connectivity Solutions Trompeter | Brass | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Wrench Clamp | Non-Constant | Plug Male Pin (Concentric) | Solder | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | TWC-124-1A TWC-78-1 | Three Lug | |
 Cinch Connectivity Solutions Trompeter | Brass | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Wrench Clamp | Non-Constant | Plug Male Pin (Concentric) | Solder | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | 250-4045 293-3930 Microdot 250-4044 | Three Lug | |
 Cinch Connectivity Solutions Trompeter | Brass | 1 Connector 1 Heat Shrink 1 Strain Relief | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Crimp | Non-Constant | Plug Male Pin (Concentric) | Crimp | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | Raychem 10602 | Three Lug |
 Cinch Connectivity Solutions Trompeter | Brass | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Crimp | Non-Constant | Plug Male Pin (Concentric) | Crimp | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | TWC-78-1 | Three Lug | |
 Cinch Connectivity Solutions Trompeter | Brass | 1 Connector 1 Heat Shrink 1 Strain Relief | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Crimp | Non-Constant | Plug Male Pin (Concentric) | Crimp | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | M17/176-00002 | Three Lug |
Cinch Connectivity Solutions Trompeter | Brass | 1 Connector 1 Heat Shrink 1 Strain Relief | 500 | Gold | Nickel | -65 ░C | 165 °C | 400 V | Bayonet Lock | Crimp | Non-Constant | Plug Male Pin (Concentric) | Crimp | Free Hanging (In-Line) | 500 MHz | TRB Twinaxial/Triaxial | Silver | Beryllium Copper | 1 | M17/177-00001 | Three Lug |
