XJ8C Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

CONN HEADER VERT 16POS 2.54MM

Part	Shrouding	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Overall Contact Length	Overall Contact Length	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Connector Type	Current Rating (Amps)	Voltage Rating	Number of Positions Loaded	Number of Positions	Insulation Material	Mounting Type	Termination	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Material	Contact Type	Contact Shape	Pitch - Mating	Pitch - Mating

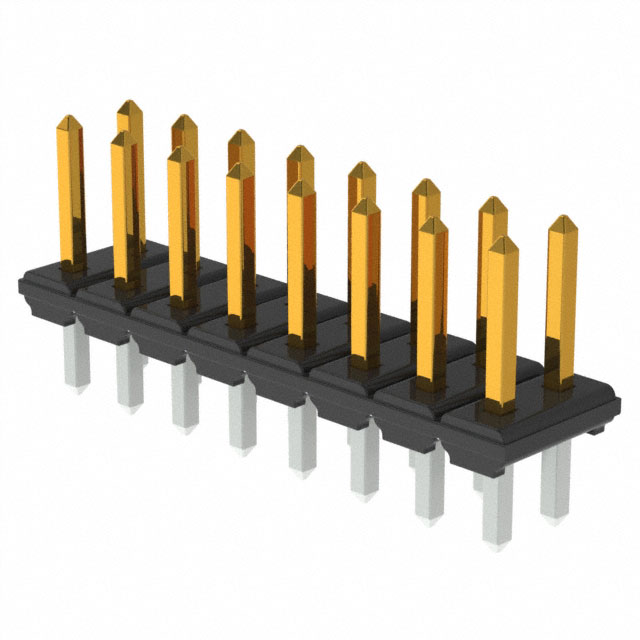

Omron Electronics Inc-EMC Div XJ8C-1611	Unshrouded	0.169 in	4.3 mm	UL94 V-0	Push-Pull	5.9 µin	0.15 µm	Board to Board Cable	-55 C	105 ░C	2	8.6 mm	0.339 in	Black	0.11 in	2.79 mm	Header	2 A	300 VDC	All	16	Polyphenylene Sulfide (PPS) Glass Filled	Through Hole	Solder	0.059 in	1.5 mm	0.1 in	2.54 mm	Gold	Brass Nickel	Male Pin	Square	0.1 "	2.54 mm

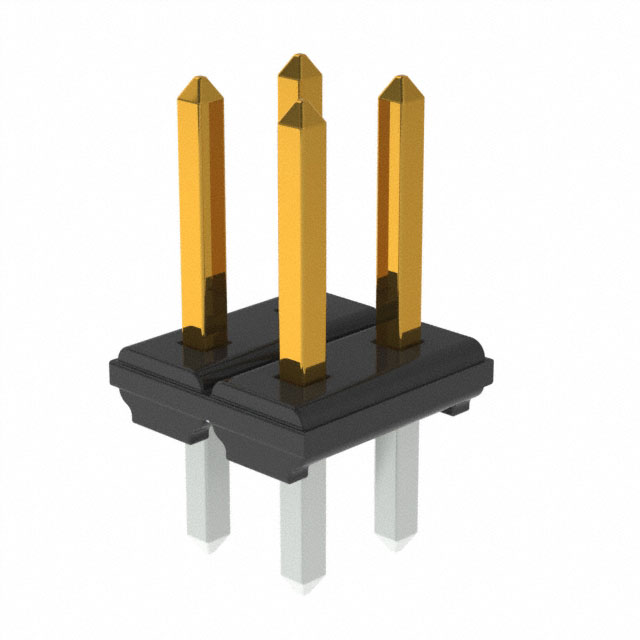

Omron Electronics Inc-EMC Div XJ8C-0411	Unshrouded	0.169 in	4.3 mm	UL94 V-0	Push-Pull	5.9 µin	0.15 µm	Board to Board Cable	-55 C	105 ░C	2	8.6 mm	0.339 in	Black	0.11 in	2.79 mm	Header	2 A	300 VDC	All	4	Polyphenylene Sulfide (PPS) Glass Filled	Through Hole	Solder	0.059 in	1.5 mm	0.1 in	2.54 mm	Gold	Brass Nickel	Male Pin	Square	0.1 "	2.54 mm

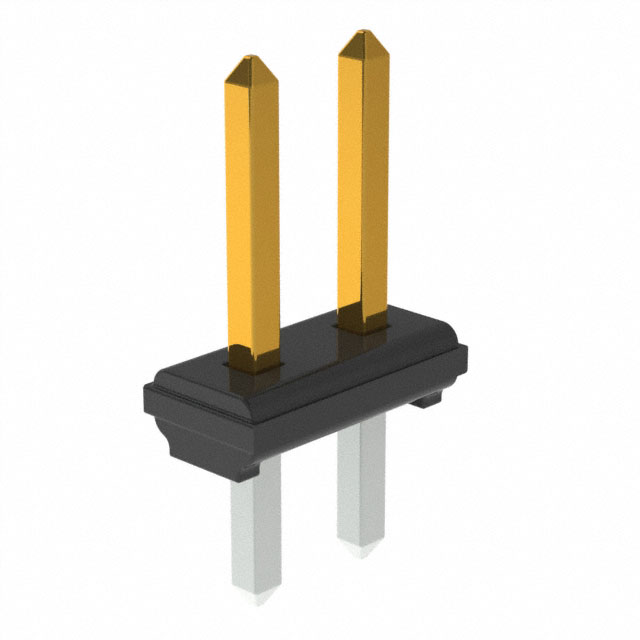

Omron Electronics Inc-EMC Div XJ8C-0211	Unshrouded	0.169 in	4.3 mm	UL94 V-0	Push-Pull	5.9 µin	0.15 µm	Board to Board Cable	-55 C	105 ░C	2	8.6 mm	0.339 in	Black	0.11 in	2.79 mm	Header	2 A	300 VDC	All	2	Polyphenylene Sulfide (PPS) Glass Filled	Through Hole	Solder	0.059 in	1.5 mm	0.1 in	2.54 mm	Gold	Brass Nickel	Male Pin	Square
