395-134 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Number of Positions	Number of Positions/Bay/Row	Pitch	Pitch	Termination	Number of Rows [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Type	Flange Feature	Contact Material	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 395-134-520-588	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Solder	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual	Card Guides
EDAC Inc. 395-134-541-502	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Wire Wrap	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever		Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual		3.25 mm	0.128 "
EDAC Inc. 395-134-521-203	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Solder	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever	Floating Bobbin Flush Mount	Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual		2.95 mm	0.116 "
EDAC Inc. 395-134-541-804	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Wire Wrap	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever		Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual		3.96 mm	0.156 "
EDAC Inc. 395-134-541-204	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Wire Wrap	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever	Flush Mount Top Opening Unthreaded	Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual		3.96 mm	0.156 "
EDAC Inc. 395-134-523-278	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Solder	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual	Card Guides
EDAC Inc. 395-134-523-878	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Solder	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual	Card Guides
EDAC Inc. 395-134-544-812	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Wire Wrap	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever	Side Mount Opening Unthreaded	Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual		3.25 mm	0.128 "

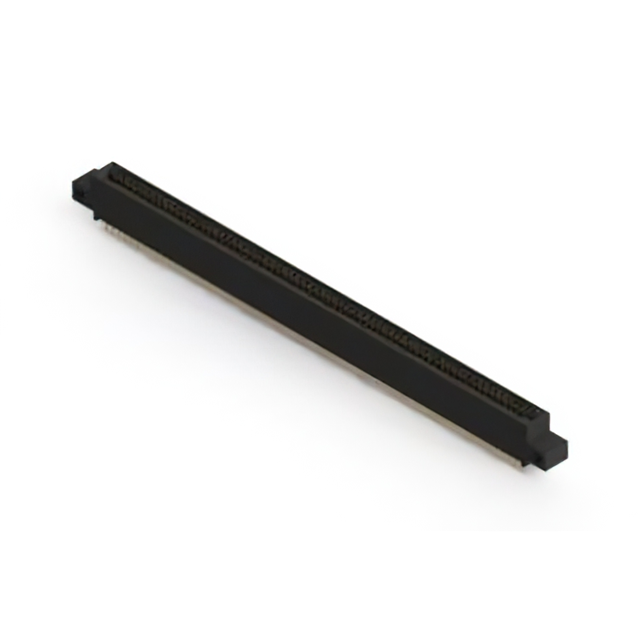

EDAC Inc. 395-134-525-512	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Solder	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever	Side Mount Opening Unthreaded	Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual		3.25 mm	0.128 "
EDAC Inc. 395-134-524-502	Polyester Thermoplastic	2	Female	134	67	0.1 "	2.54 mm	Solder	2	Through Hole	-40 C	105 ░C	Non Specified - Dual Edge	Cantilever		Copper Alloy	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Black	0.25 Ám	10 Áin	Dual		3.25 mm	0.128 "
