S18B-XAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

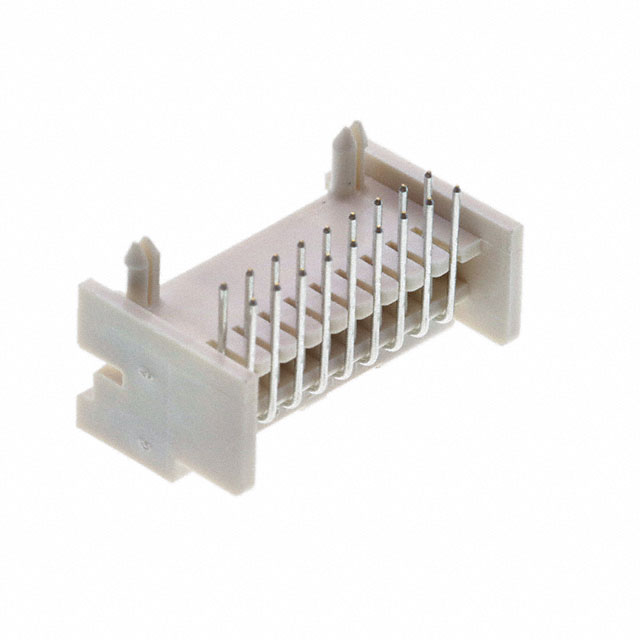

CONN HEADER R/A 18POS 2.5MM
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post | Number of Positions Loaded | Number of Positions | Contact Material | Insulation Material | Current Rating (Amps) | Contact Type | Style | Voltage Rating | Shrouding | Termination | Insulation Color | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Mounting Type | Connector Type | Number of Rows [custom] | Insulation Height | Insulation Height | Fastening Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 2.5 mm | 0.098 in | 2.5 mm | 0.098 in | 0.134 " | 3.4 mm | All | 18 | Copper Alloy | Glass Filled Nylon 6/6 Polyamide (PA66) | 3 A | Male Pin | Board to Cable/Wire | 250 V | Shrouded - 4 Wall | Solder | Natural | Circular | 85 °C | -25 °C | UL94 V-0 | Right Angle Through Hole | Header | 2 | 12.1 mm | 0.476 " | Locking Ramp | Tin |
