103638 Series

Catalog

18 MTE HDR SRST LATCH .100CL ROHS COMPLIANT: NO

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Contact Material	Mounting Type	Number of Rows	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Color	Shrouding	Contact Finish - Post	Fastening Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Length - Mating	Contact Length - Mating	Number of Positions	Termination	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Insulation Height	Insulation Height

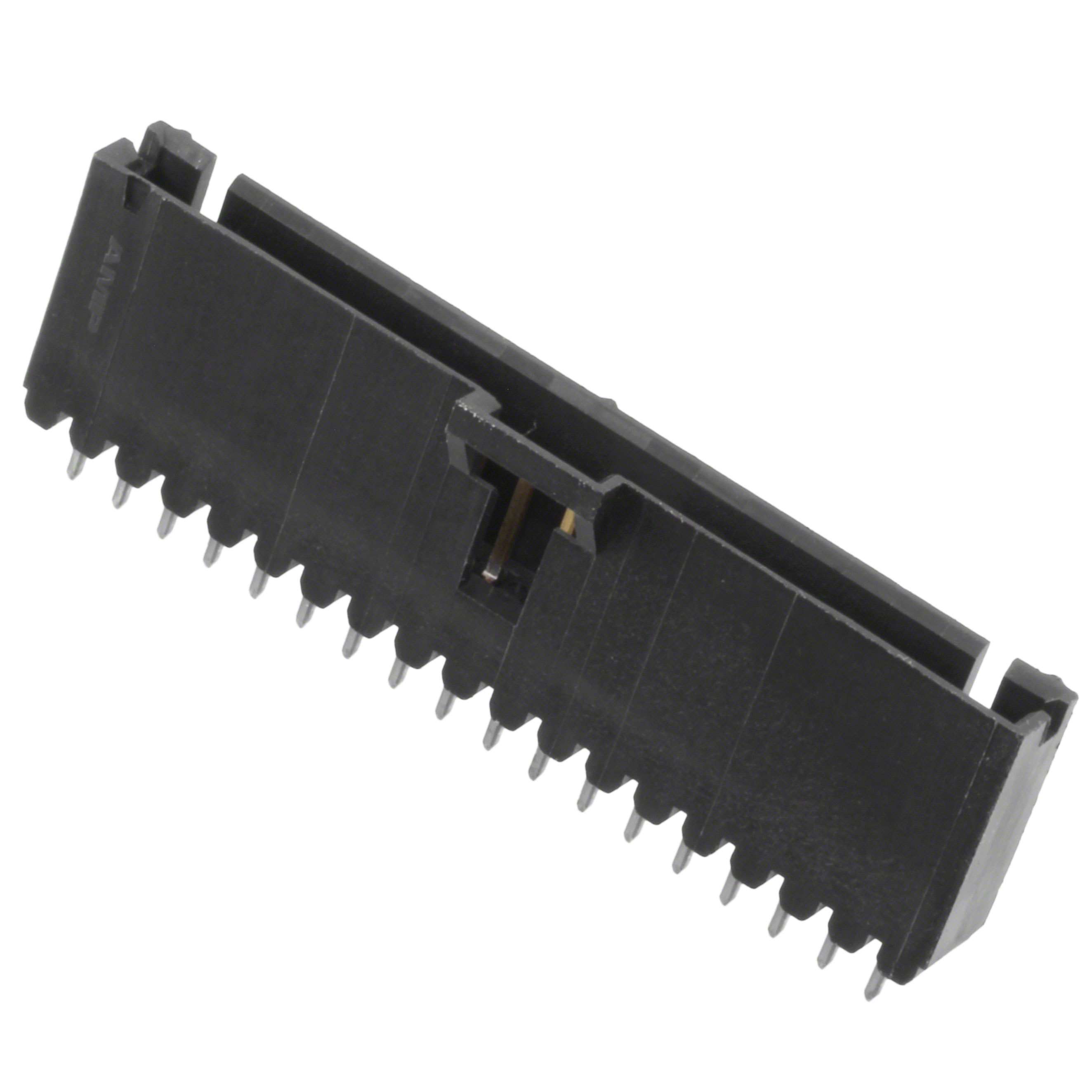

TE Connectivity AMP Connectors 1-103638-7	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	0.1 "	2.54 mm	Header	Thermoplastic	Brass	Through Hole	1	Male Pin	0.13 "	3.3 mm	Black	Shrouded - 4 Wall	Tin-Lead	Latch Holder	Board to Board Cable	0.38 µm	15 µin	Keying Slot	0.23 in	5.84 mm	18	Solder	Square	Gold	All	13.6 mm	0.535 in

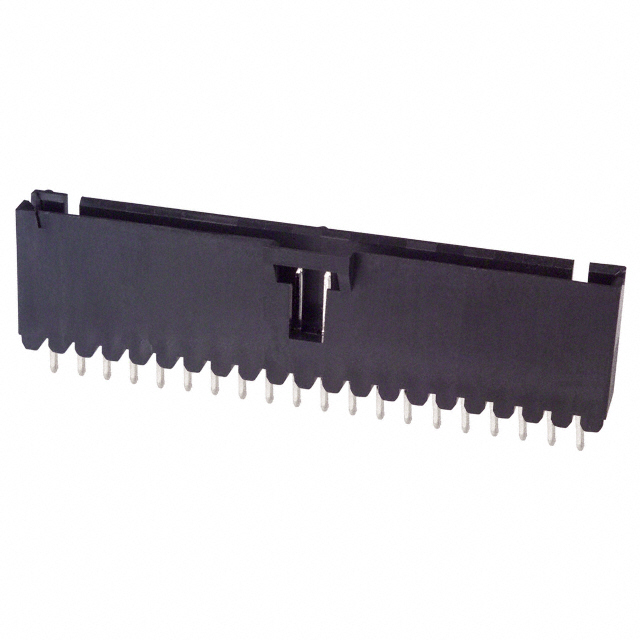

TE Connectivity AMP Connectors 1-103638-9	Automotive General Purpose Medical Telecommunications	2.54 µm	100 µin	0.1 "	2.54 mm	Header	Thermoplastic	Brass	Through Hole	1	Male Pin	0.13 "	3.3 mm	Black	Shrouded - 4 Wall	Tin-Lead	Latch Holder	Board to Board Cable	0.38 µm	15 µin	Keying Slot	0.23 in	5.84 mm	20	Solder	Square	Gold	All	13.6 mm	0.535 in
