HBG-100 Series

Catalog

LED DRVR CC AC/DC 21.6-36V 2.7A

Part	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Efficiency	Features	Voltage - Input (Max) [Max]	Power (Watts)	Termination Style	Topology	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Isolation	Type	Approval Agency	Number of Outputs	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Standard Number

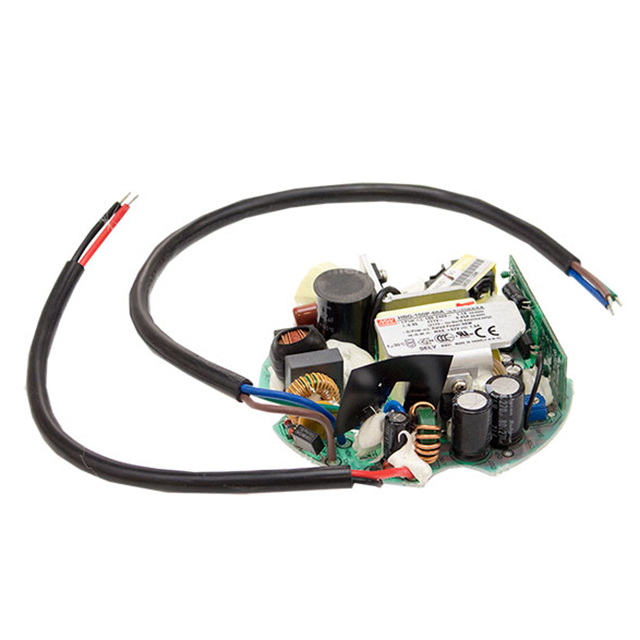

MEAN WELL USA Inc. HBG-100P-36A	Chassis Mount	90 VAC	2.7 A	91 %	OTP OVP SCP	305 VAC	97 W	Wire Leads	AC DC Converter	21.6 V	36 V	3750 VDC	Constant Current	CB CCC CE cURus ENEC	1	34 mm	4.09 "	1.34 "	104 mm

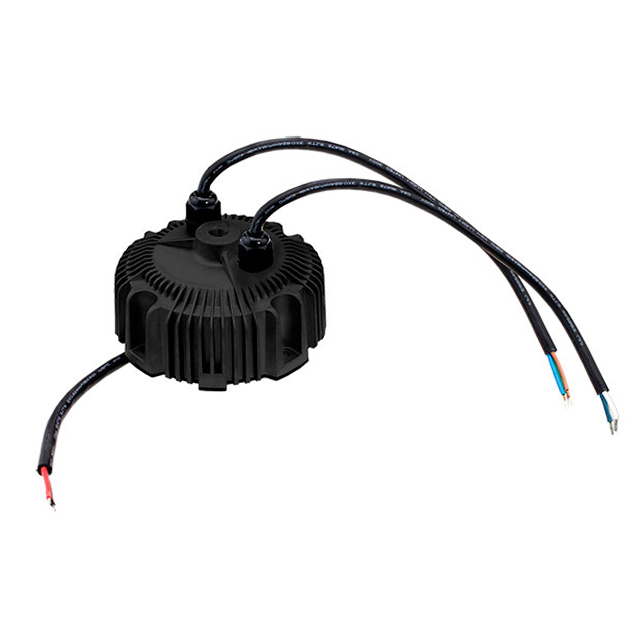

MEAN WELL USA Inc. HBG-100-48	Chassis Mount	90 VAC	2 A	91 %	OCP OTP OVP	305 VAC	96 W	Wire Leads	AC DC Converter	28.8 V	48 V	3750 VDC	Constant Current	CB CCC CE cURus ENEC	1	66.5 mm	5.12 in	2.62 "	130 mm	IP67	85 °C	-40 C
MEAN WELL USA Inc. HBG-100P-60A	Chassis Mount	90 VAC	1.6 A	91.5 %	OTP OVP SCP	305 VAC	96 W	Wire Leads	AC DC Converter	36 V	60 V	3750 VDC	Constant Current	CB CCC CE cURus ENEC	1	34 mm	4.09 "	1.34 "	104 mm
MEAN WELL USA Inc. HBG-100P-60B	Chassis Mount	90 VAC	1.6 A	91.5 %	OTP OVP SCP	305 VAC	96 W	Wire Leads	AC DC Converter	36 V	60 V	3750 VDC	Constant Current	CB CCC CE cURus ENEC	1	34 mm	4.09 "	1.34 "	104 mm				Analog PWM
MEAN WELL USA Inc. HBG-100-60A	Chassis Mount	90 VAC	1.6 A	91.5 %	OCP OTP OVP	305 VAC	96 W	Wire Leads	AC DC Converter	36 V	60 V	3750 VDC	Constant Current	CB CCC CE cURus ENEC	1	66.5 mm	5.12 in	2.62 "	130 mm	IP65	85 °C	-40 C
MEAN WELL USA Inc. HBG-100-48AB	Chassis Mount	90 VAC	2 A	91 %	OCP OTP OVP	305 VAC	96 W	Wire Leads	AC DC Converter	28.8 V	48 V	3750 VDC	Constant Current	CB CCC CE cURus EAC ENEC	1	66.5 mm	5.12 in	2.62 "	130 mm	IP65	85 °C	-40 C	Analog PWM	UL 8750
MEAN WELL USA Inc. HBG-100-48A	Chassis Mount	90 VAC	2 A	91 %	OCP OTP OVP	305 VAC	96 W	Wire Leads	AC DC Converter	28.8 V	48 V	3750 VDC	Constant Current	CB CCC CE cURus ENEC	1	66.5 mm	5.12 in	2.62 "	130 mm	IP65	85 °C	-40 C

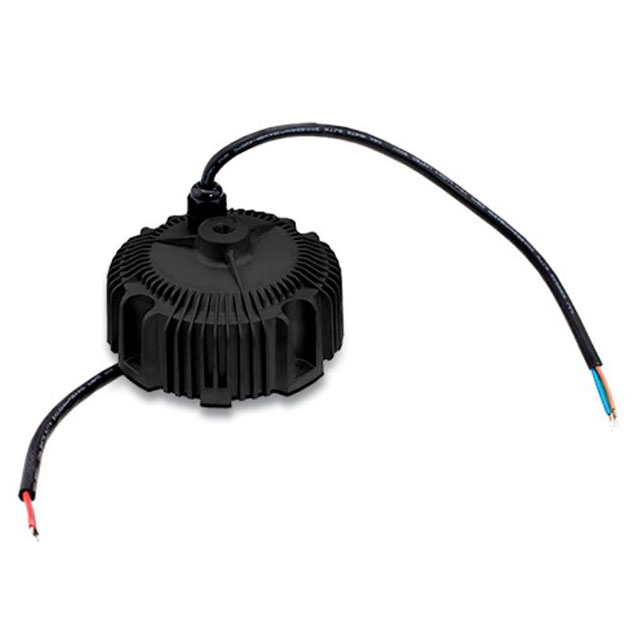

MEAN WELL USA Inc. HBG-100-60DA	Chassis Mount	90 VAC	1.6 A	91.5 %	OCP OTP OVP	305 VAC	96 W	Wire Leads	AC DC Converter	36 V	60 V	3750 VDC	Constant Current	CB CCC CE cURus EAC ENEC	1	66.5 mm	5.12 in	2.62 "	130 mm	IP67	85 °C	-40 C	Analog PWM	UL 8750
MEAN WELL USA Inc. HBG-100P-48A	Chassis Mount	90 VAC	2 A	91 %	OTP OVP SCP	305 VAC	96 W	Wire Leads	AC DC Converter	28.8 V	48 V	3750 VDC	Constant Current	CB CCC CE cURus ENEC	1	34 mm	4.09 "	1.34 "	104 mm
MEAN WELL USA Inc. HBG-100-36B	Chassis Mount	90 VAC	2.7 A	91 %	OCP OTP OVP	305 VAC	97 W	Wire Leads	AC DC Converter	21.6 V	36 V	3750 VDC	Constant Current	CB CCC CE cURus ENEC	1	66.5 mm	5.12 in	2.62 "	130 mm	IP67	85 °C	-40 C	Analog PWM
