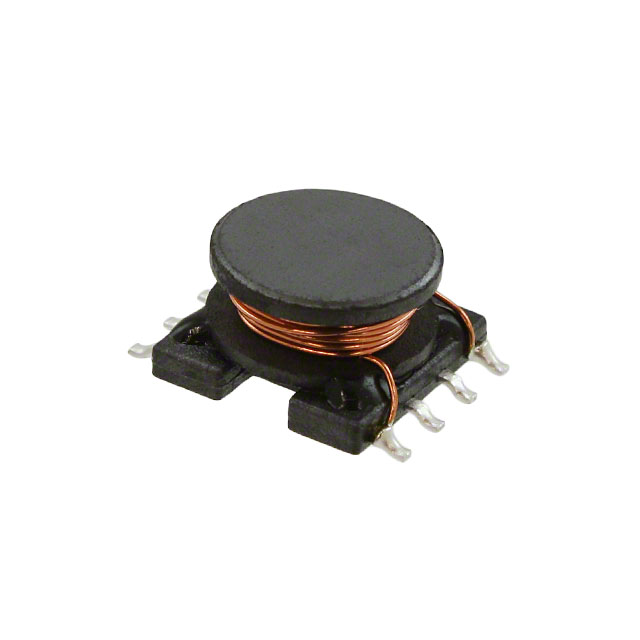

SDR0906 Series

Catalog

INDUCTOR,FERRITE,1MH,10+% TOL,10-% TOL,4149-CASE ROHS COMPLIANT: YES

Part	Mounting Type	Current - Saturation (Isat)	Inductance Frequency - Test	Type	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material - Core	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Tolerance	Package / Case	Shielding	Inductance	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
Bourns Inc. SDR0906-102KL	Surface Mount	350 mA	1 kHz	Drum Core Wirewound	125 °C	-40 C	60 252 kHz	2 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	0.22 A	0.248 "	6.3 mm	3.5 Ohm	10 %	Nonstandard	Unshielded	1 mH
Bourns Inc. SDR0906-180ML	Surface Mount	2.4 A	1 kHz	Drum Core Wirewound	125 °C	-40 C	2.52 MHz 35	19 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	1.8 A	0.248 "	6.3 mm	120 mOhm	20 %	Nonstandard	Unshielded	18 µH
Bourns Inc. SDR0906-100ML	Surface Mount	3.2 A	1 kHz	Drum Core Wirewound	125 °C	-40 C	2.52 MHz 35	25 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	2.1 A	0.248 "	6.3 mm	90 mOhm	20 %	Nonstandard	Unshielded	10 µH
Bourns Inc. SDR0906-330KL	Surface Mount	2 A	1 kHz	Drum Core Wirewound	125 °C	-40 C	2.52 MHz 35	14 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	1.25 A	0.248 "	6.3 mm	180 mOhm	10 %	Nonstandard	Unshielded	33 µH
Bourns Inc. SDR0906-331KL	Surface Mount	0.65 A	1 kHz	Drum Core Wirewound	125 °C	-40 C		5 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	0.5 A	0.248 "	6.3 mm	1.27 Ohm	10 %	Nonstandard	Unshielded	330 µH	15	796 kHz
Bourns Inc. SDR0906-101KL	Surface Mount	1.1 A	1 kHz	Drum Core Wirewound	125 °C	-40 C		8 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	900 mA	0.248 "	6.3 mm		10 %	Nonstandard	Unshielded	100 µH	15	796 kHz	390 mOhm
Bourns Inc. SDR0906-152KB	Surface Mount	260 mA	1 kHz	Drum Core Wirewound	125 °C	-40 C	70 252 kHz	2 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	0.18 A	0.248 "	6.3 mm	5 Ohm	10 %	Nonstandard	Unshielded	1.5 mH
Bourns Inc. SDR0906-100KL	Surface Mount	3.2 A	1 kHz	Drum Core Wirewound	125 °C	-40 C	2.52 MHz 35	25 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	2.1 A	0.248 "	6.3 mm	90 mOhm	10 %	Nonstandard	Unshielded	10 µH
Bourns Inc. SDR0906-822KL	Surface Mount	120 mA	1 kHz	Drum Core Wirewound	125 °C	-40 C	100 252 kHz	1 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	50 mA	0.248 "	6.3 mm	28 Ohm	10 %	Nonstandard	Unshielded	8.2 mH
Bourns Inc. SDR0906-470KL	Surface Mount		1 kHz	Drum Core Wirewound	125 °C	-40 C	2.52 MHz 25	12 MHz	10.5 mm	0.413 in	0.492 "	12.5 mm	Ferrite	1.1 A	0.248 "	6.3 mm	230 mOhm	10 %	Nonstandard	Unshielded	47 µH
