FDPC5018SG Series

30V Asymmetric Dual N-Channel PowerTrench® Power Clip MOSFET

Catalog

30V Asymmetric Dual N-Channel PowerTrench® Power Clip MOSFET

Part	Configuration	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Technology	Rds On (Max) @ Id, Vgs	Power - Max	Mounting Type	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds

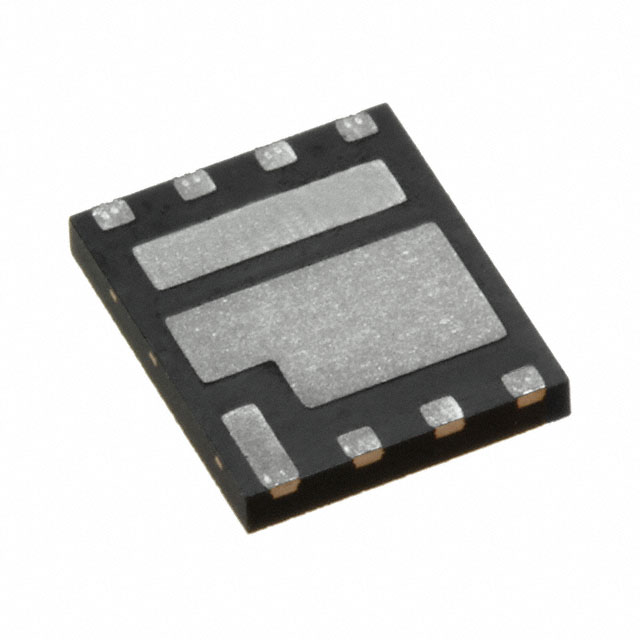

ON Semiconductor FDPC5018SG	2 N-Channel (Dual) Asymmetrical	17 A 32 A	Power Clip 56	8-PowerWDFN	-55 °C	150 °C	3 V	24 nC	MOSFET (Metal Oxide)	5 mOhm	1 W 1.1 W	Surface Mount	30 V	1715 pF

Catalog

30V Asymmetric Dual N-Channel PowerTrench® Power Clip MOSFET

Key Features

• Q1 N-ChannelMax. RDS(on)= 5.0 mΩ at VGS= 10 V, ID= 17 AMax. RDS(on)= 6.5 mΩ at VGS= 10 V, ID= 17 A

• Q2 N-ChannelMax. RDS(on)= 1.6 mΩ at VGS= 10 V, ID= 32 AMax. RDS(on)= 2.0 mΩ at VGS= 4.5 V, ID= 28 A

• Low Inductance Packaging Shortens Rise/Fall Times, Resulting in Lower Switching Losses

• MOSFET Integration Enables Optimum Layout for Lower Circuit Inductance and Reduced Switch Node Ringing

• RoHS Compliant

Description

This device includes two specialized N-Channel MOSFETs in a dual package. The switch node has been internally connected to enable easy placement and routing of synchronous buck converters. The control MOSFET (Q1) and synchronous SyncFET™ (Q2) have been designed to provide optimal power efficiency.
