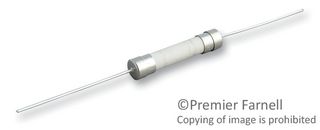

FUSE 250V SB PT 3AB Pb-FREE 50mm 12A
Description
AI
The 3AB Slo-Blo® Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V SB PT 3AB Pb-FREE 50mm 12A
FUSE 250V SB PT 3AB Pb-FREE 50mm 12A
| Part | Fuse Type | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Mounting Type | Package / Case [y] | Package / Case | Package / Case [x] | Breaking Capacity @ Rated Voltage | Melting I²t | Voltage Rating - AC | Voltage Rating - DC | Current Rating (Amps) | Response Time | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | Cartridge Ceramic | CE CSA K-Mark PSE UL | -55 C | 125 °C | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | Through Hole | 3AB 3AG | 0.25 " | 400 A 500 A | 129 | 250 V | 60 VDC | 12 Amps | Slow Blow | ||
 LITTELFUSE | Cartridge Ceramic | CE CSA K-Mark PSE UL | -55 C | 125 °C | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | Through Hole | 3AB 3AG | 0.25 " | 400 A 500 A | 129 | 250 V | 60 VDC | 12 Amps | Slow Blow | ||
 LITTELFUSE | Cartridge Ceramic | CE CSA KC PSE UL | -55 C | 125 °C | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | Through Hole | 3AB 3AG | 0.25 " | 400 A 600 A | 129 | 250 V | 125 VDC | 12 Amps | Slow Blow | 0.0067 Ohms |
