Schaffner FN3359 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 320A CHASSIS MOUNT

Part	Applications	Termination Style	Configuration	Mounting Type	Filter Type	Frequency - Operating	Current	Voltage - Rated AC (Phase to Ground/Neutral)	Approval Agency	Voltage - Rated AC (Phase to Phase)	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors FN3359HV-320-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	320 A	400 V	cURus ENEC	690 V	100 °C	-25 °C
TE Connectivity AMP Connectors FN3359HV-1600-99-UL	General Purpose	Terminal Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	1.6 kA	440 V	CE cURus ENEC UKCA	760 V	100 °C	-25 °C

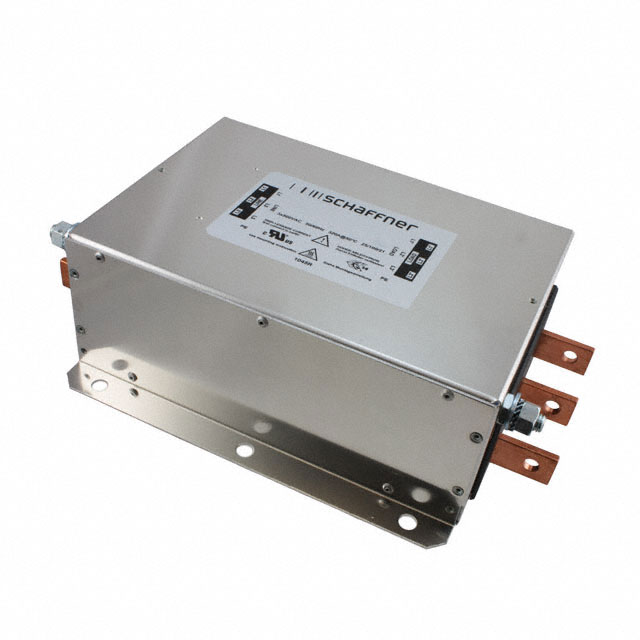

TE Connectivity AMP Connectors FN3359-800-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	800 A	300 V	cURus ENEC	520 V	100 °C	-25 °C
TE Connectivity AMP Connectors FN3359-1600-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	1.6 kA	300 V	cURus ENEC	520 V	100 °C	-25 °C
TE Connectivity AMP Connectors FN3359-320-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	320 A	300 V	cURus ENEC	520 V	100 °C	-25 °C
TE Connectivity AMP Connectors FN3359-250-28	General Purpose	Threaded Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	250 A	300 V	cURus ENEC	520 V	100 °C	-25 °C

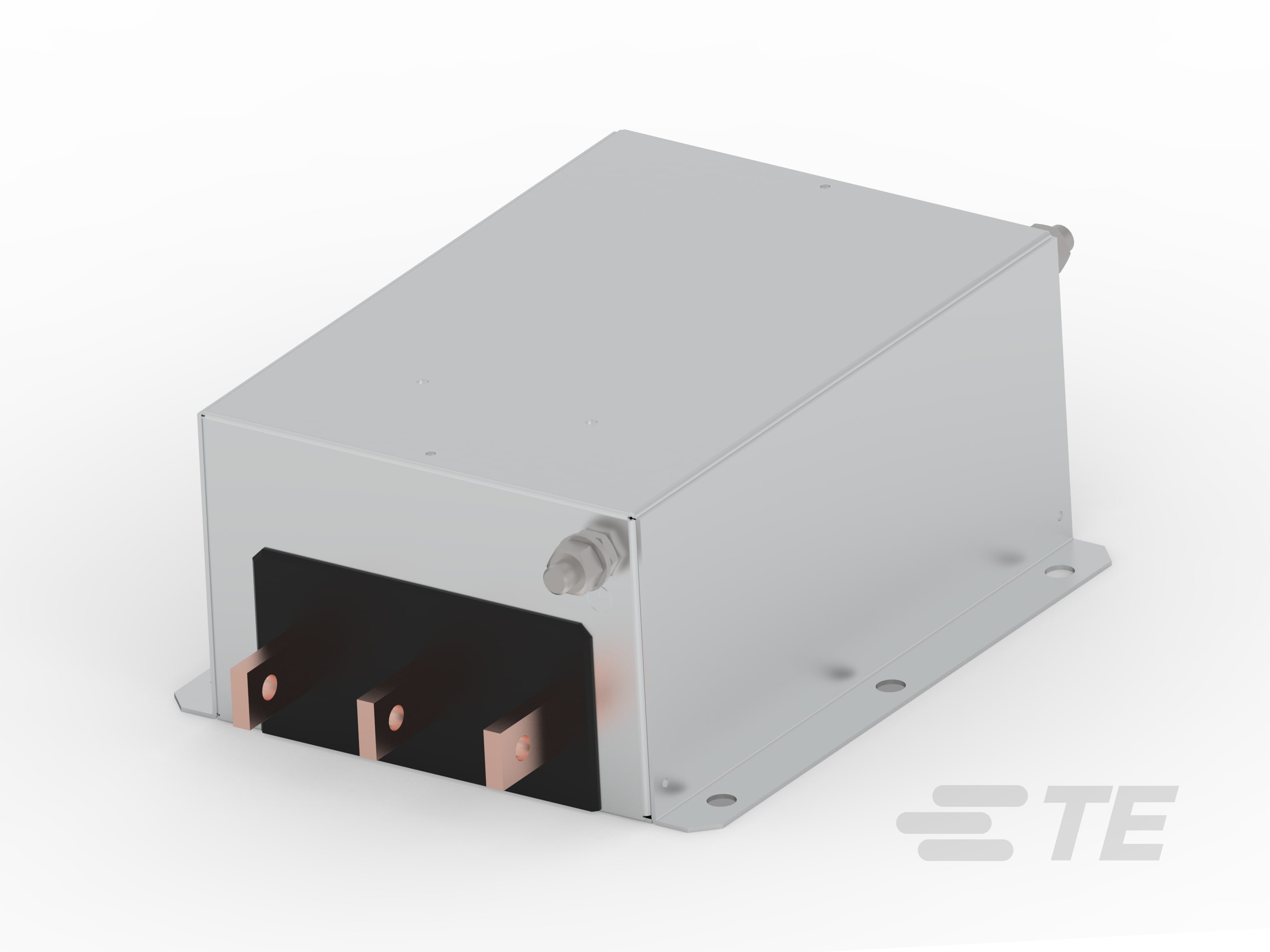

TE Connectivity AMP Connectors FN3359-600-99	General Purpose	Terminal Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	600 A	300 V	cURus ENEC	520 V	100 °C	-25 °C
TE Connectivity AMP Connectors FN3359HV-150-28	General Purpose	Threaded Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	150 A	400 V	cURus ENEC	690 V	100 °C	-25 °C
TE Connectivity AMP Connectors FN3359-180-28	General Purpose	Threaded Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	180 A	300 V	cURus ENEC	520 V	100 °C	-25 °C
TE Connectivity AMP Connectors FN3359HV-180-28	General Purpose	Threaded Post	Three Stage	Chassis Mount	Three Phase (Delta)	60 Hz	180 A	400 V	cURus ENEC	690 V	100 °C	-25 °C
