ATS-14F Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

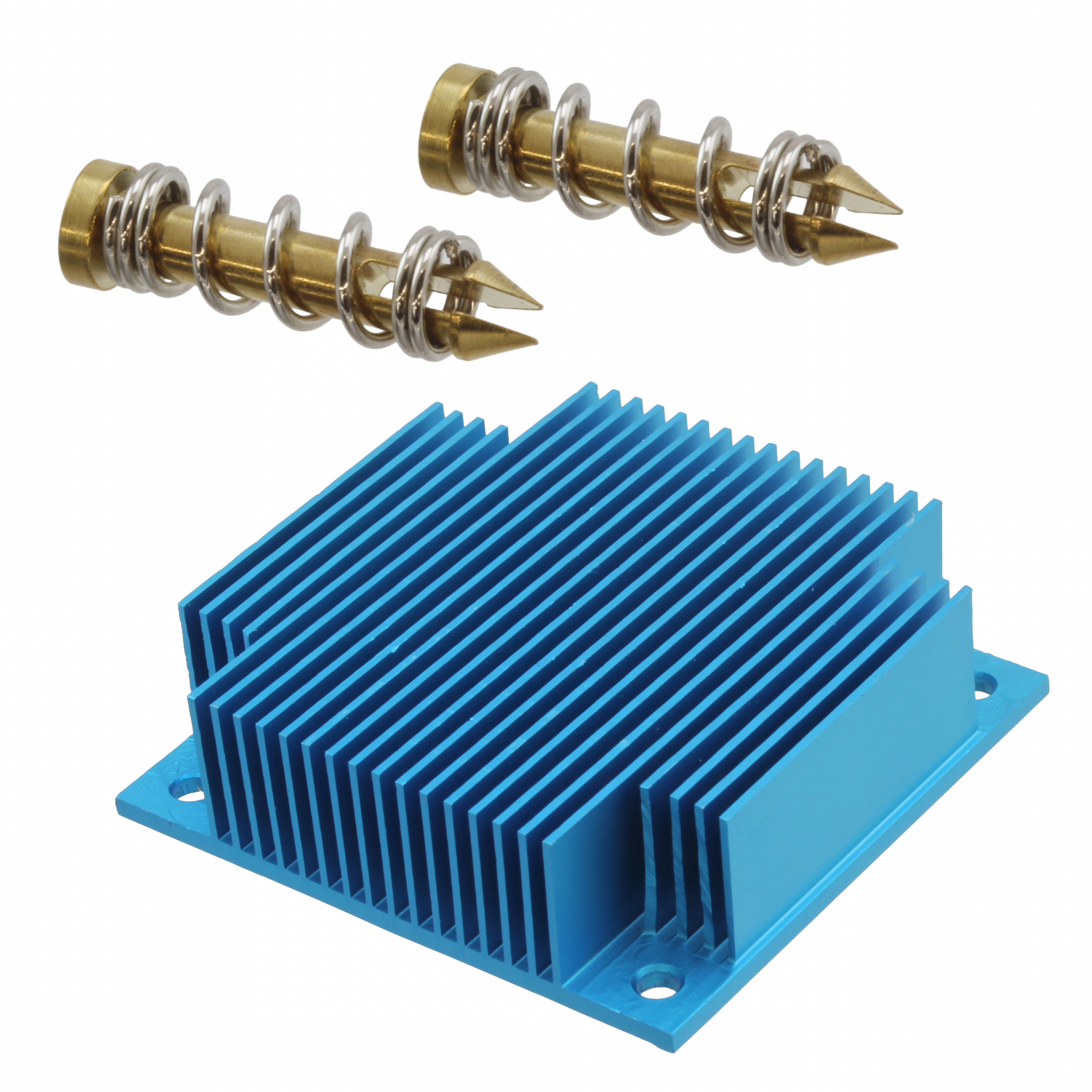

HEATSINK 35X35X15MM L-TAB

...

Part	Material	Thermal Resistance @ Forced Air Flow	Shape	Length [x]	Length	Material Finish	Package Cooled	Type	Attachment Method	Width [y]	Width [y]	Fin Height [z]	Fin Height [z]	Length [x]	Width	Width	Fin Height	Fin Height	Fin Height [custom]	Fin Height [custom]	Width [x]	Width [x]	Shape [custom]	Shape [custom]	Length
Advanced Thermal Solutions Inc. ATS-14F-56-C1-R0	Aluminum	17.69 °C/W	Fins Square	1.378 "	35 mm	Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin	1.378 "	35 mm	15 mm	0.59 in
Advanced Thermal Solutions Inc. ATS-14F-196-C3-R0	Aluminum	18.26 °C/W	Fins Square	1.772 in		Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin					45 mm	1.772 in	45 mm	0.236 "	6 mm
Advanced Thermal Solutions Inc. ATS-14F-120-C2-R0	Aluminum	3.48 °C/W	Fins Square	1.772 in		Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin					45 mm	1.772 in	45 mm	0.984 in	25 mm
Advanced Thermal Solutions Inc. ATS-14F-24-C1-R0	Aluminum	8.36 °C/W	Fins Square	2.362 in		Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin	2.362 in	60 mm	20 mm	0.79 in	60 mm
Advanced Thermal Solutions Inc. ATS-14F-165-C1-R0	Aluminum		Fins Square	0.984 in	25 mm	Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin										0.394 "	10 mm	25 mm	0.984 "
Advanced Thermal Solutions Inc. ATS-14F-03-C1-R0	Aluminum	15.83 °C/W	Fins Square			Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin	1.575 in	40 mm	15 mm	0.59 in
Advanced Thermal Solutions Inc. ATS-14F-31-C1-R0	Aluminum	25.23 °C/W			2.28 in	Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin								0.23 in	5.84 mm			36.83 mm	1.45 in	Rectangular	Fins	57.9 mm
Advanced Thermal Solutions Inc. ATS-14F-152-C2-R0	Aluminum	3.32 °C/W	Fins Square	1.378 "	35 mm	Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin	1.378 "	35 mm								1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-14F-180-C1-R0	Aluminum	3.29 °C/W	Fins Square	1.378 "	35 mm	Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin	1.378 "	35 mm								1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-14F-92-C1-R0	Aluminum	16.45 °C/W	Fins Square			Blue Anodized	ASIC BGA CPU LGA	Top Mount	Push Pin	1.575 in	40 mm	15 mm	0.59 in
