T41125 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

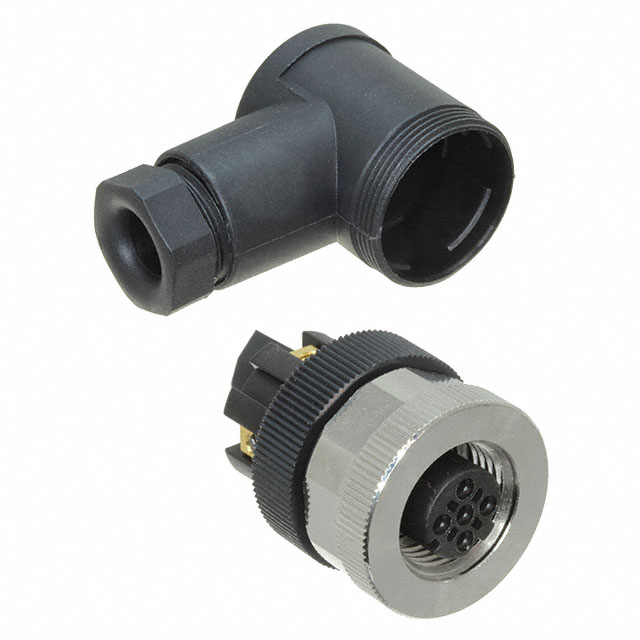

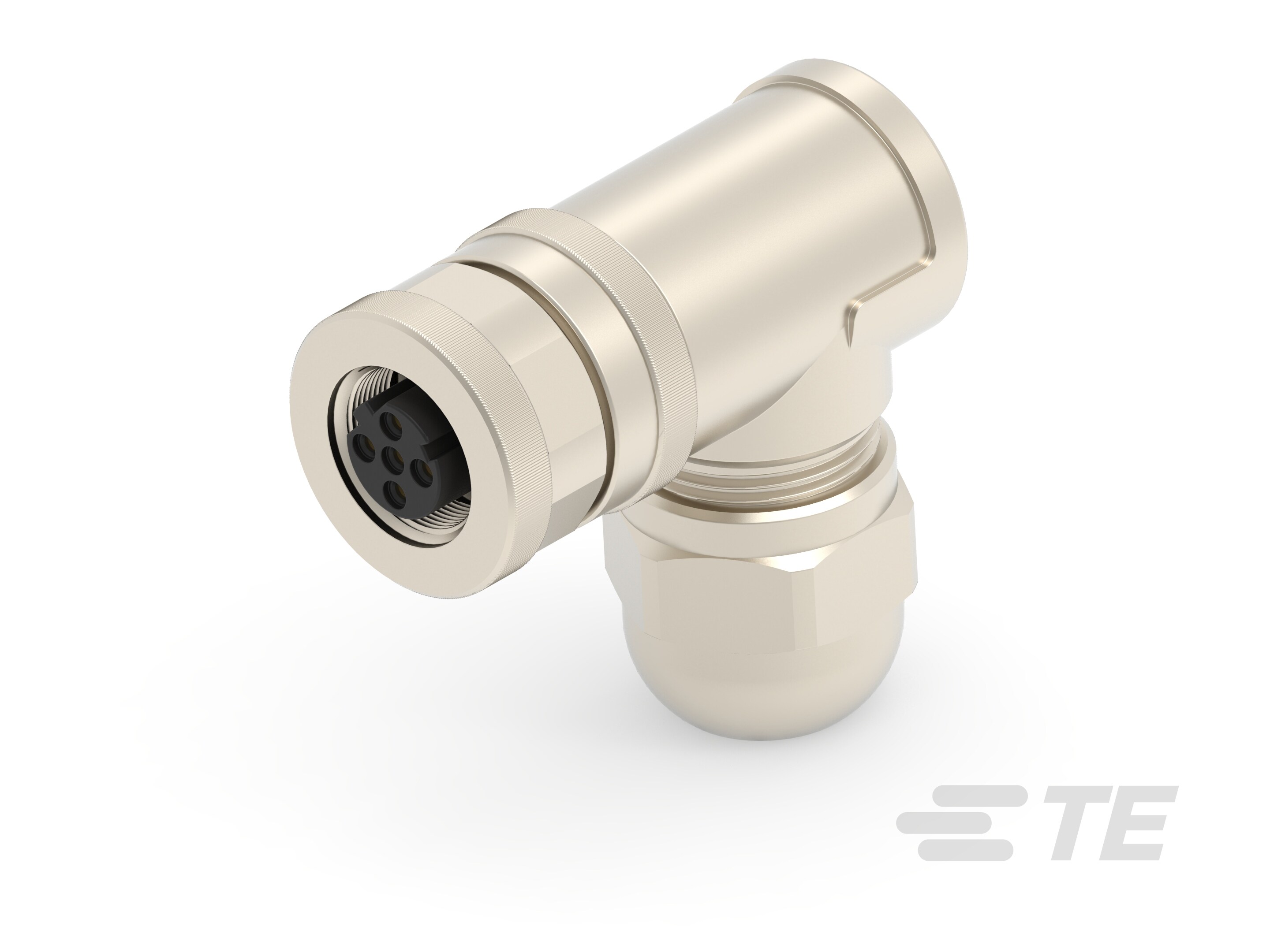

SENSOR CONNECTOR, PG9, M12, FEMALE, 4 POSITIONS, SCREW SOCKET, RIGHT ANGLE CABLE MOUNT

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Applications	Insert Material [custom]	Insert Material [custom]	Contact Material	Voltage Rating	Shell Material	Termination	Fastening Type	Connector Type	Orientation	Current Rating (Amps)	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Ingress Protection	Features	Shell Size - Insert	Color	Mounting Type	Shell Finish	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insert Material [custom]
TE Connectivity AMP Connectors T4112512041-000	0.076 µm	3 µin	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Zinc Alloy	250 V	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.315 in	0.236 in	8 mm	6 mm	Metal	85 °C	-40 C	Shielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-4	Silver	Free Hanging (In-Line) Right Angle	Nickel	4	Gold
TE Connectivity AMP Connectors T4112512022-000			Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Bronze	250 V	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.315 in	0.236 in	8 mm	6 mm	Metal	85 °C	-40 C	Shielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-2	Silver	Free Hanging (In-Line) Right Angle	Nickel	2	Silver	2.03 µm	80 µin
TE Connectivity AMP Connectors T4112511031-000	0.076 µm	3 µin	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Bronze	250 V	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.236 in	0.157 in	6 mm	4 mm	Metal	85 °C	-40 C	Shielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-3	Silver	Free Hanging (In-Line) Right Angle	Nickel		Gold
TE Connectivity AMP Connectors T4112501021-000	0.076 µm	3 µin	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Bronze	250 V	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.236 in	0.157 in	6 mm	4 mm	Metal	85 °C	-40 C	Unshielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-2	Black Silver	Free Hanging (In-Line) Right Angle	Nickel	2	Gold
TE Connectivity AMP Connectors T4112511041-000	0.076 µm	3 µin	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Bronze	250 V	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.236 in	0.157 in	6 mm	4 mm	Metal	85 °C	-40 C	Shielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-4	Silver	Free Hanging (In-Line) Right Angle	Nickel	4	Gold

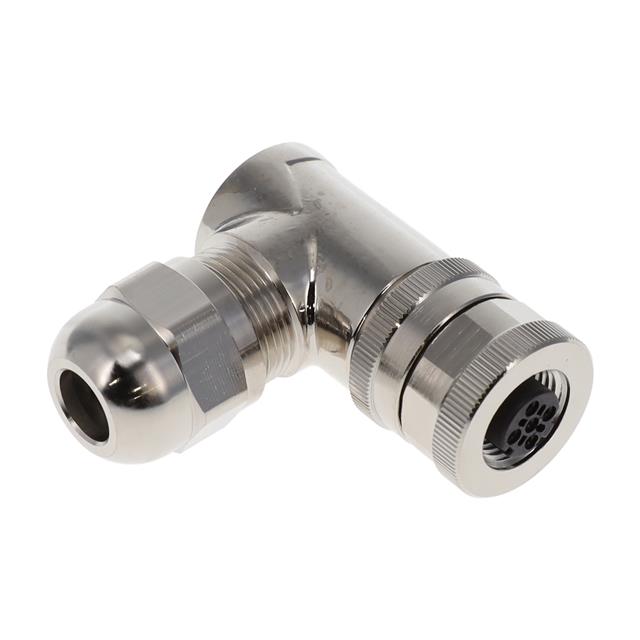

TE Connectivity AMP Connectors T4112512051-000			Polybutylene Terephthalate (PBT) Glass Filled	Industrial			Bronze	60 VDC	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.315 in	0.236 in	8 mm	6 mm	Metal	85 °C	-40 C	Shielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-5	Silver	Free Hanging (In-Line) Right Angle	Nickel	5	Gold			Polybutylene Terephthalate (PBT) Glass Filled
TE Connectivity AMP Connectors T4112501051-000	0.076 µm	3 µin	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Zinc Alloy	60 VDC	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.236 in	0.157 in	6 mm	4 mm	Metal	85 °C	-40 C	Unshielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-5	Black Silver	Free Hanging (In-Line) Right Angle	Nickel	5	Gold
TE Connectivity AMP Connectors T4112512032-000			Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Bronze	250 V	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.315 in	0.236 in	8 mm	6 mm	Metal	85 °C	-40 C	Shielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-3	Silver	Free Hanging (In-Line) Right Angle	Nickel		Silver	2.03 µm	80 µin
TE Connectivity AMP Connectors T4112501031-000	0.076 µm	3 µin	Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Bronze	250 V	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.236 in	0.157 in	6 mm	4 mm	Metal	85 °C	-40 C	Unshielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-3	Black Silver	Free Hanging (In-Line) Right Angle	Nickel		Gold
TE Connectivity AMP Connectors T4112501052-000			Polybutylene Terephthalate (PBT) Glass Filled	Industrial	Nylon	Polyamide (PA)	Bronze	60 VDC	Brass	Screw	Threaded	Plug Female Sockets	D	4 A	0.236 in	0.157 in	6 mm	4 mm	Metal	85 °C	-40 C	Unshielded	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	M12-5	Black Silver	Free Hanging (In-Line) Right Angle	Nickel	5	Silver	2.03 µm	80 µin
