EVP-CD Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Contact Rating @ Voltage [x]	Operating Force	Outline [y]	Outline [x]	Termination Style	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Actuator Height off PCB, Vertical [z]	Illumination	Mechanical Life	Circuit	Switch Travel	Mounting Type

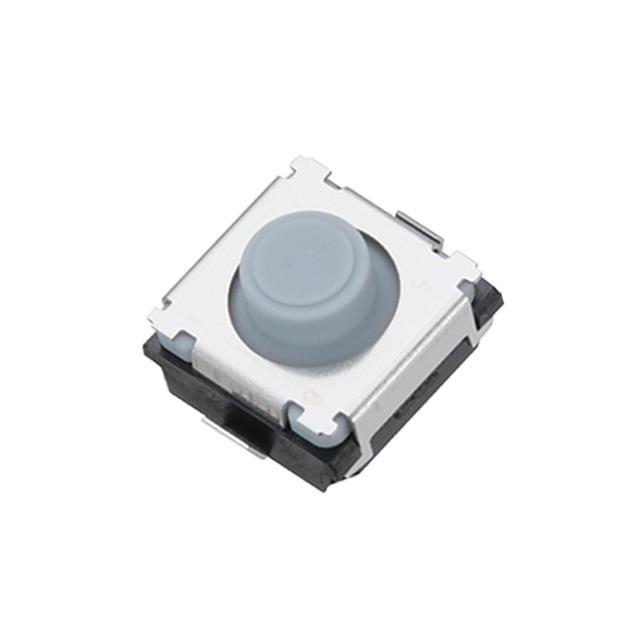

Panasonic Industrial Automation Sales EVP-CD8C1A000	0.02 A 15 VDC	510 gf	6 mm	6 mm	J Lead	Top Actuated	90 °C	-40 °C	Off-Mom	Standard	4 mm	Non-Illuminated	200000 Cycles	SPST-NO	1 mm	Surface Mount
Panasonic Industrial Automation Sales EVP-CD7C1A000	0.02 A 15 VDC	408 gf	6 mm	6 mm	J Lead	Top Actuated	90 °C	-40 °C	Off-Mom	Standard	4 mm	Non-Illuminated	200000 Cycles	SPST-NO	1 mm	Surface Mount
