H10BPR Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN HOOD SIDE ENTRY SZH10B M25
| Part | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Housing Finish | Ingress Protection | Size | Lock Location | Style | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Connector Type | Housing Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

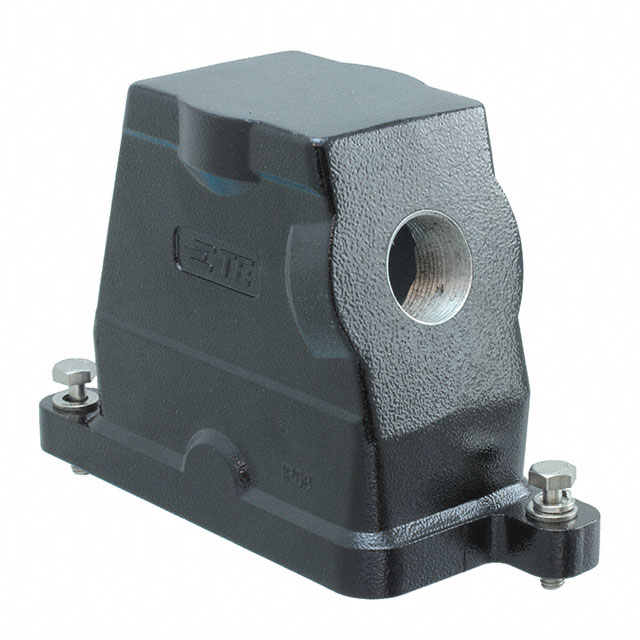

 TE Connectivity Aerospace, Defense and Marine | M25 | 125 °C | -40 °C | Aluminum Alloy Die Cast | Powder Coated | IP68 - Dust Tight Waterproof | H10B | Screw Locks on Hood | Side Entry | 58 mm | 146 mm | 2.283 " | 3.976 in | 5.748 in | 101 mm | Hood | Silver | |

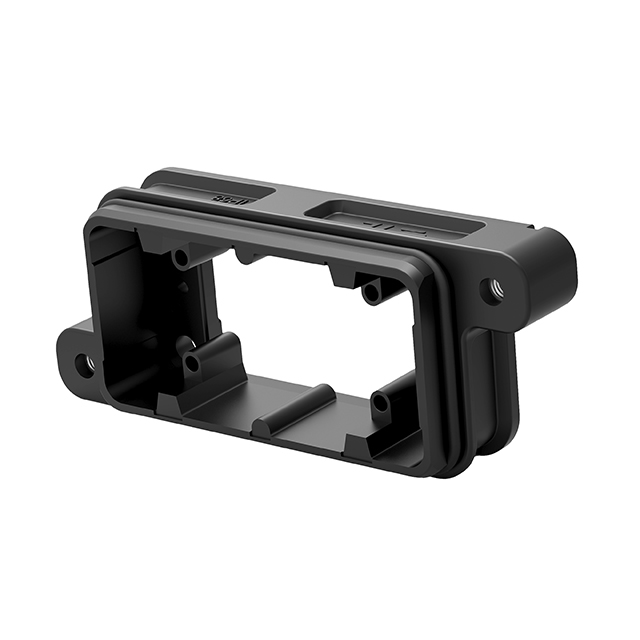

 TE Connectivity Aerospace, Defense and Marine | 125 °C | -40 °C | Aluminum Alloy Die Cast | Powder Coated | IP68 - Dust Tight Waterproof | H10B | Screw Locks on Hood | Bottom Entry | 58 mm | 146 mm | 2.283 " | 1.142 in | 5.748 in | 29 mm | Base - Panel Mount | Black | Corrosion Resistant EMC Resistant |
