H24B Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HOOD TOP DUAL SZ24B PG21
| Part | Style | Size | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Ingress Protection | Connector Type | Lock Location | Housing Color | Housing Material | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Housing Finish | Size / Dimension [y] | Size / Dimension [z] | Features | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

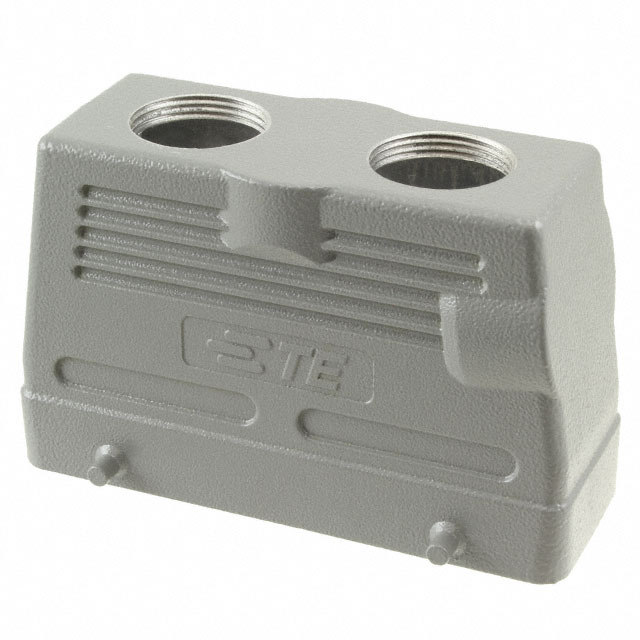

 TE Connectivity AMP Connectors | Top Entry Dual | 24 B | 125 °C | -40 C | PG21 | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Base Bottom | Gray | Aluminum Alloy Die Cast | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Powder Coated | ||||

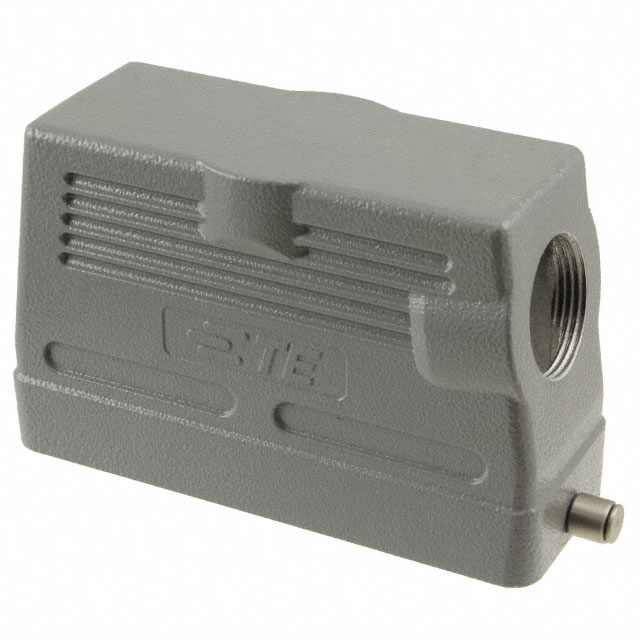

 TE Connectivity AMP Connectors | Side Entry | 24 B | 125 °C | -40 C | PG21 | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Hood | Gray | Aluminum Alloy Die Cast | 43 mm | 60 mm | 2.362 in | 120 mm | 4.724 in | 1.693 " | Powder Coated | ||||

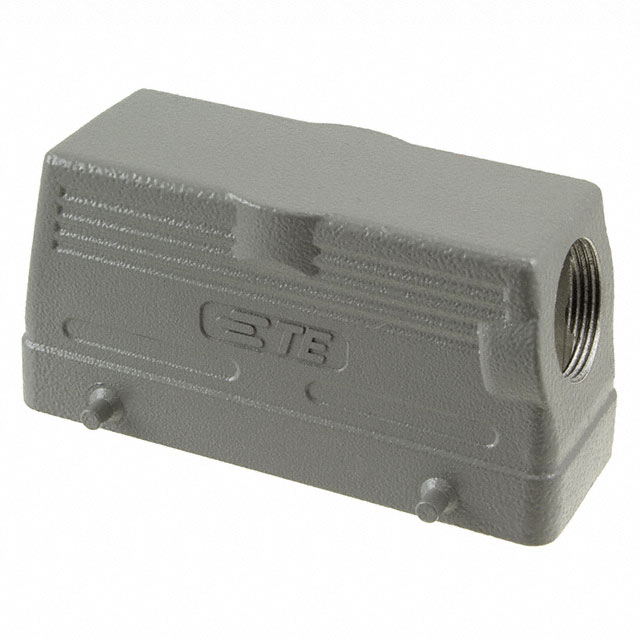

 TE Connectivity AMP Connectors | Side Entry | 24 B | 125 °C | -40 C | PG21 | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Base Bottom | Gray | Aluminum Alloy Die Cast | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Powder Coated | ||||
 TE Connectivity AMP Connectors | Side Entry | 24 B | 125 °C | -40 C | PG21 | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Base Bottom | Gray | Aluminum Alloy Die Cast | 43 mm | 60 mm | 2.362 in | 120 mm | 4.724 in | 1.693 " | Powder Coated | ||||
 TE Connectivity AMP Connectors | Bottom Entry | 24 B | 125 °C | -40 C | IP65 - Dust Tight Water Resistant | Base - Panel Mount | Locking Clip (1) on Base Bottom | Gray | Aluminum Alloy Die Cast | 1.173 " | 142.2 mm | 5.598 in | 1.799 in | Powder Coated | 45.7 mm | 29.8 mm | Cover | ||||
 TE Connectivity AMP Connectors | Side Entry | 125 °C | -40 C | M32 | IP68 - Dust Tight Waterproof | Hood | Screw Locks on Hood | Black | Aluminum Alloy Die Cast | 53.2 mm | 90 mm | 3.543 " | 156 mm | 6.142 " | 2.094 " | Powder Coated | Corrosion Resistant EMC Resistant | H24B | |||
 TE Connectivity AMP Connectors | Top Entry Triple | 125 °C | -40 C | M25 | IP68 - Dust Tight Waterproof | Hood | Screw Locks on Hood | Black | Aluminum Alloy Die Cast | 4.402 " | 193 mm | 7.598 " | 2.283 in | Powder Coated | 58 mm | 111.8 mm | Corrosion Resistant EMC Resistant | H24B | |||

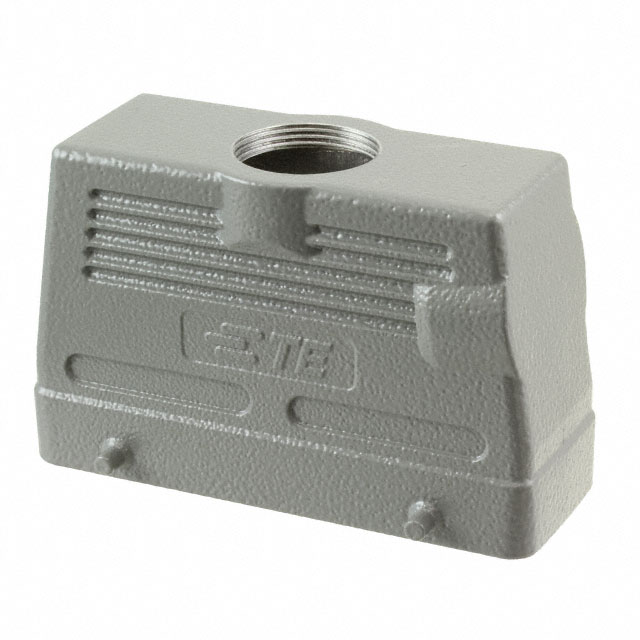

 TE Connectivity AMP Connectors | Top Entry | 24 B | 125 °C | -40 C | M32 | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Base Bottom | Gray | Aluminum Alloy Die Cast | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Powder Coated | ||||
 TE Connectivity AMP Connectors | Side Entry | 24 B | 125 °C | -40 C | M25 | IP65 - Dust Tight Water Resistant | Base - Box Mount | Locking Clip (2) on Base Bottom | Gray | Aluminum Alloy Die Cast | Powder Coated | ||||||||||

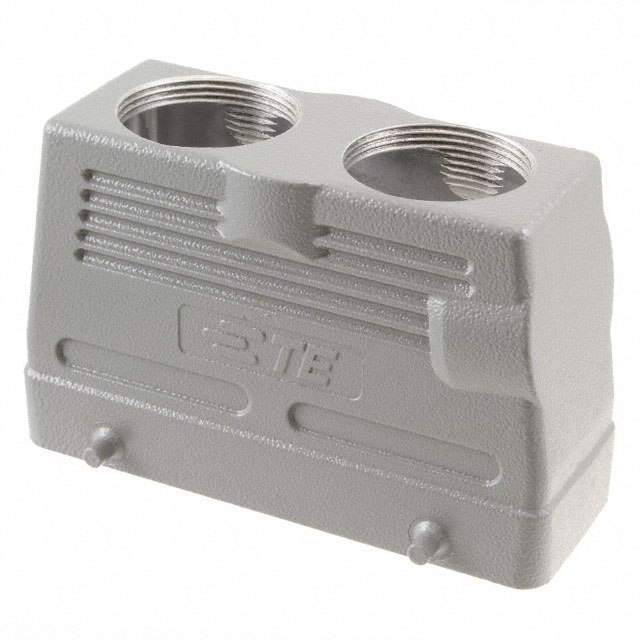

 TE Connectivity AMP Connectors | Top Entry Dual | 24 B | 125 °C | -40 C | PG29 | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Base Bottom | Gray | Aluminum Alloy Die Cast | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Powder Coated |
