M80-882 Series

Catalog

WIRE-TO-BOARD CONNECTOR, M80 SERIES, THROUGH HOLE, HEADER, 2, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mated Stacking Heights	Mounting Type	Contact Material	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Length - Post	Contact Length - Post	Termination	Contact Type	Current Rating (Amps)	Insulation Material	Contact Shape	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Material Flammability Rating	Style	Connector Type	Shrouding	Contact Finish - Mating	Voltage Rating	Insulation Color	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post

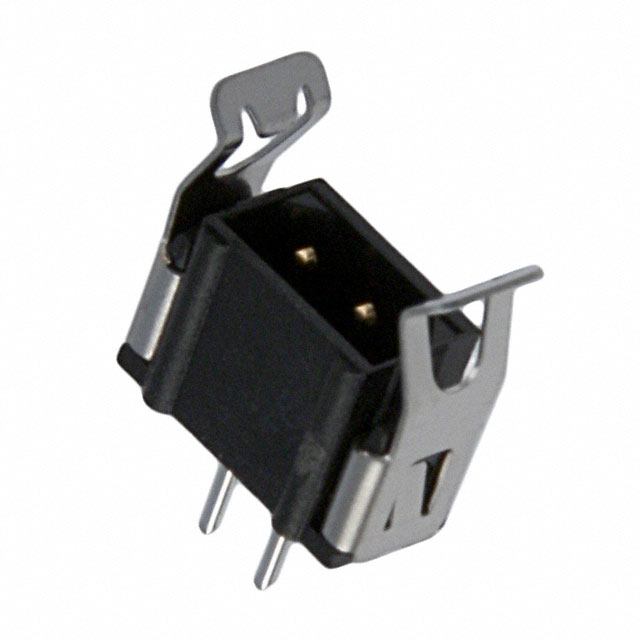

Harwin Inc. M80-8820242	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	Through Hole	Phosphor Bronze	2	0.079 "	2 mm	1	29.5 µin	0.75 µm	0.118 in	3 mm	Solder	Male Pin	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	Circular	All	-55 C	125 °C	Tin	UL94 V-0	Board to Board Cable	Header	Shrouded - 4 Wall	Gold	800 V	Black	Latch Lock	0.219 in	5.56 mm
Harwin Inc. M80-8820345			7.23 mm 10.2 mm 13.46 mm	Through Hole	Phosphor Bronze		0.079 "	2 mm	1	29.5 µin	0.75 µm	0.118 in	3 mm	Solder	Male Pin	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	Circular	All	-55 C	125 °C	Gold	UL94 V-0	Board to Board Cable	Header	Shrouded - 4 Wall	Gold	800 V	Black	Latch Lock	0.219 in	5.56 mm	29.5 µin	0.75 µm
Harwin Inc. M80-8820222	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	Through Hole	Phosphor Bronze	2	0.079 "	2 mm	1	29.5 µin	0.75 µm	0.118 in	3 mm	Solder	Male Pin	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	Circular	All	-55 C	125 °C	Tin-Lead	UL94 V-0	Board to Board Cable	Header	Shrouded - 4 Wall	Gold	800 V	Black	Latch Lock	0.219 in	5.56 mm
Harwin Inc. M80-8820542	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	Through Hole	Phosphor Bronze	5	0.079 "	2 mm	1	29.5 µin	0.75 µm	0.118 in	3 mm	Solder	Male Pin	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	Circular	All	-55 C	125 °C	Tin	UL94 V-0	Board to Board Cable	Header	Shrouded - 4 Wall	Gold	800 V	Black	Latch Lock	0.219 in	5.56 mm

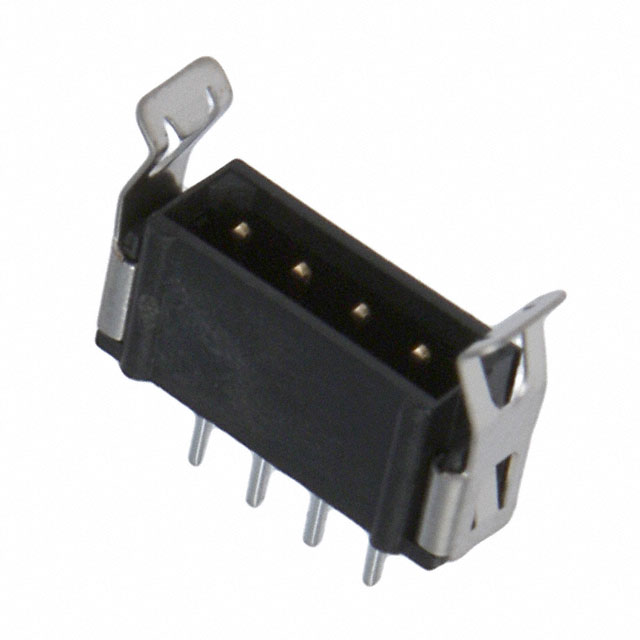

Harwin Inc. M80-8820442	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	Through Hole	Phosphor Bronze	4	0.079 "	2 mm	1	29.5 µin	0.75 µm	0.118 in	3 mm	Solder	Male Pin	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	Circular	All	-55 C	125 °C	Tin	UL94 V-0	Board to Board Cable	Header	Shrouded - 4 Wall	Gold	800 V	Black	Latch Lock	0.219 in	5.56 mm
Harwin Inc. M80-8820545			7.23 mm 10.2 mm 13.46 mm	Through Hole	Phosphor Bronze	5	0.079 "	2 mm	1	29.5 µin	0.75 µm	0.118 in	3 mm	Solder	Male Pin	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	Circular	All	-55 C	125 °C	Gold	UL94 V-0	Board to Board Cable	Header	Shrouded - 4 Wall	Gold	800 V	Black	Latch Lock	0.219 in	5.56 mm	29.5 µin	0.75 µm
Harwin Inc. M80-8820445			7.23 mm 10.2 mm 13.46 mm	Through Hole	Phosphor Bronze	4	0.079 "	2 mm	1	29.5 µin	0.75 µm	0.118 in	3 mm	Solder	Male Pin	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	Circular	All	-55 C	125 °C	Gold	UL94 V-0	Board to Board Cable	Header	Shrouded - 4 Wall	Gold	800 V	Black	Latch Lock	0.219 in	5.56 mm	29.5 µin	0.75 µm
Harwin Inc. M80-8820422	118.1 µin	3 µm	7.23 mm 10.2 mm 13.46 mm	Through Hole	Phosphor Bronze	4	0.079 "	2 mm	1	29.5 µin	0.75 µm	0.118 in	3 mm	Solder	Male Pin	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	Circular	All	-55 C	125 °C	Tin-Lead	UL94 V-0	Board to Board Cable	Header	Shrouded - 4 Wall	Gold	800 V	Black	Latch Lock	0.219 in	5.56 mm
