1757819 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
CONN D-SUB PLUG 37POS CRIMP
| Part | Connector Type | Number of Positions | Number of Rows | Contact Finish | Current Rating (Amps) | Mounting Type | Shell Material, Finish | Connector Style | Contact Material | Contact Type | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Shell Size, Connector Layout | Termination | Shell Size, Connector Layout | Shell Finish Thickness | Shell Finish Thickness | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

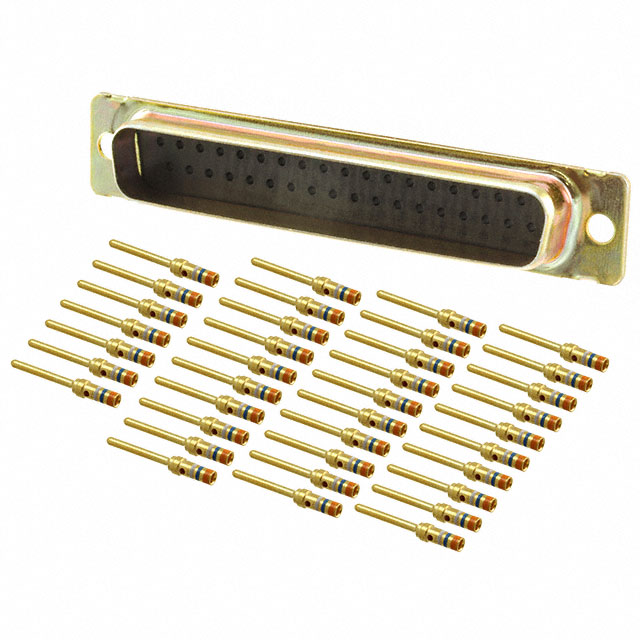

 TE Connectivity Aerospace, Defense and Marine | Male Pins Plug | 37 | 2 | Gold | 7.5 A | Free Hanging (In-Line) | Steel Yellow Chromate Plated Zinc | D-Sub | Copper Alloy | Signal | Polyester | Black | -55 °C | 125 °C | Housing/Shell (Unthreaded) | 4 (DC C) | Crimp | ||||

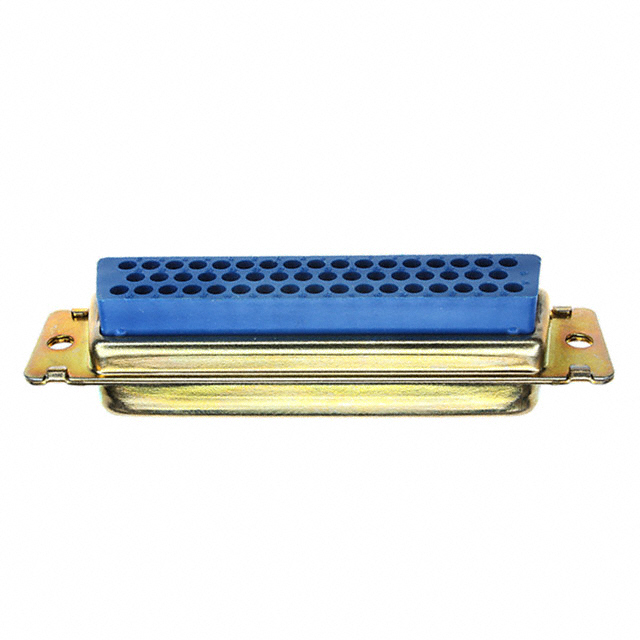

 TE Connectivity Aerospace, Defense and Marine | Plug for Male Contacts | 50 | 3 | Free Hanging (In-Line) | Steel Yellow Chromate Plated Zinc | D-Sub | Signal | Polyester | Blue | Housing/Shell (Unthreaded) | 5 | 20 µin | 0.51 µm | Contacts Not Included |
