M50-310 Series
Manufacturer: Harwin Inc.
Beta
⌘K
14+14 POS. FEMALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
| Part | Contact Material | Contact Shape | Insulation Material | Applications | Number of Positions | Connector Type | Mated Stacking Heights | Contact Finish - Mating | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Type | Number of Positions Loaded | Material Flammability Rating | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Voltage Rating | Number of Rows [custom] | Style | Insulation Color | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Finish Thickness - Post | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Phosphor Bronze | Square | Liquid Crystal Polymer (LCP) | General Purpose Medical Telecommunications | 28 | Receptacle | 5.5 mm 6.18 mm | Gold | Solder | Surface Mount | 1.27 mm | 0.05 in | Female Socket | All | UL94 V-0 | 0.05 in | 1.27 mm | Flash | 250 V | 2 | Board to Board Cable | Black | 0.181 in | 4.6 mm | -40 C | 105 ░C | Push-Pull | ||

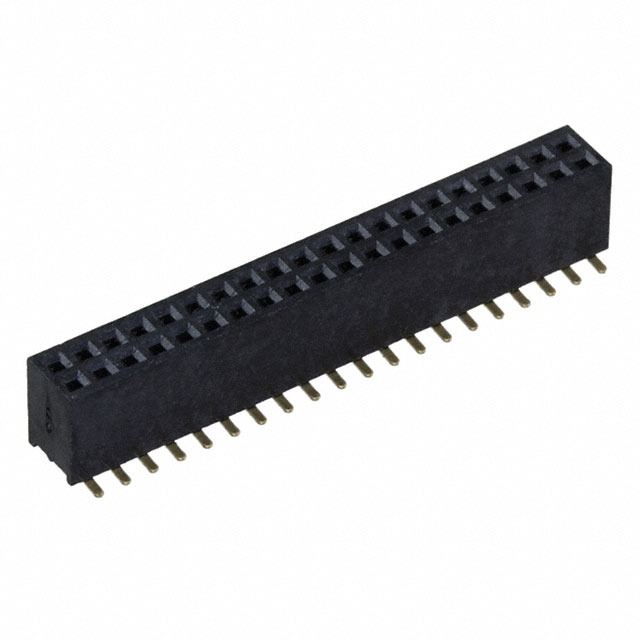

 Harwin Inc. | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | General Purpose Medical Telecommunications | 40 | Receptacle | 5.5 mm 6.18 mm | Gold | Solder | Surface Mount | 1.27 mm | 0.05 in | Female Socket | All | UL94 V-0 | 0.05 in | 1.27 mm | Flash | 250 V | 2 | Board to Board Cable | Black | 0.181 in | 4.6 mm | -40 C | 105 ░C | Push-Pull | Flash | Gold |

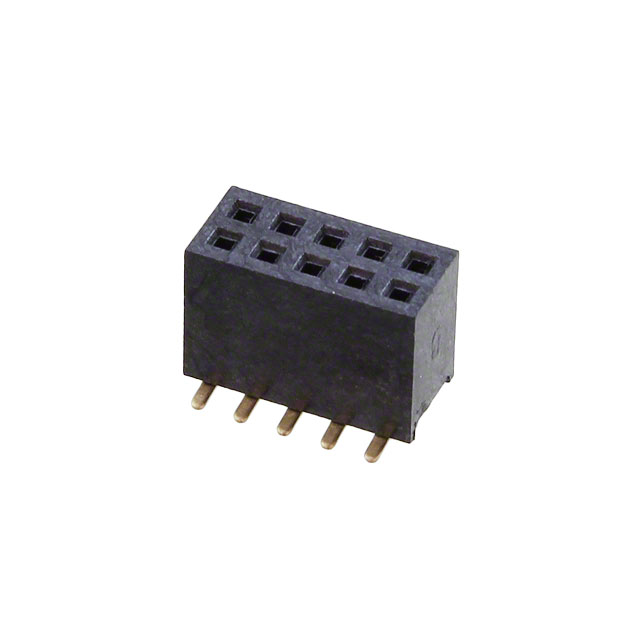

 Harwin Inc. | Phosphor Bronze | Square | Liquid Crystal Polymer (LCP) | General Purpose Medical Telecommunications | 10 | Receptacle | 5.5 mm 6.18 mm | Gold | Solder | Surface Mount | 1.27 mm | 0.05 in | Female Socket | All | UL94 V-0 | 0.05 in | 1.27 mm | Flash | 250 V | 2 | Board to Board Cable | Black | 0.181 in | 4.6 mm | -40 C | 105 ░C | Push-Pull | ||
Harwin Inc. | Phosphor Bronze | Square | Liquid Crystal Polymer (LCP) | General Purpose Medical Telecommunications | 100 | Receptacle | 5.5 mm 6.18 mm | Gold | Solder | Surface Mount | 1.27 mm | 0.05 in | Female Socket | All | UL94 V-0 | 0.05 in | 1.27 mm | Flash | 250 V | 2 | Board to Board Cable | Black | 0.181 in | 4.6 mm | -40 C | 105 ░C | Push-Pull | Flash | Gold |
Harwin Inc. | Phosphor Bronze | Square | Liquid Crystal Polymer (LCP) | General Purpose Medical Telecommunications | 18 | Receptacle | 5.5 mm 6.18 mm | Gold | Solder | Surface Mount | 1.27 mm | 0.05 in | Female Socket | All | UL94 V-0 | 0.05 in | 1.27 mm | Flash | 250 V | 2 | Board to Board Cable | Black | 0.181 in | 4.6 mm | -40 C | 105 ░C | Push-Pull | ||
Harwin Inc. | Phosphor Bronze | Square | Liquid Crystal Polymer (LCP) | General Purpose Medical Telecommunications | 12 | Receptacle | 5.5 mm 6.18 mm | Gold | Solder | Surface Mount | 1.27 mm | 0.05 in | Female Socket | All | UL94 V-0 | 0.05 in | 1.27 mm | Flash | 250 V | 2 | Board to Board Cable | Black | 0.181 in | 4.6 mm | -40 C | 105 ░C | Push-Pull | ||

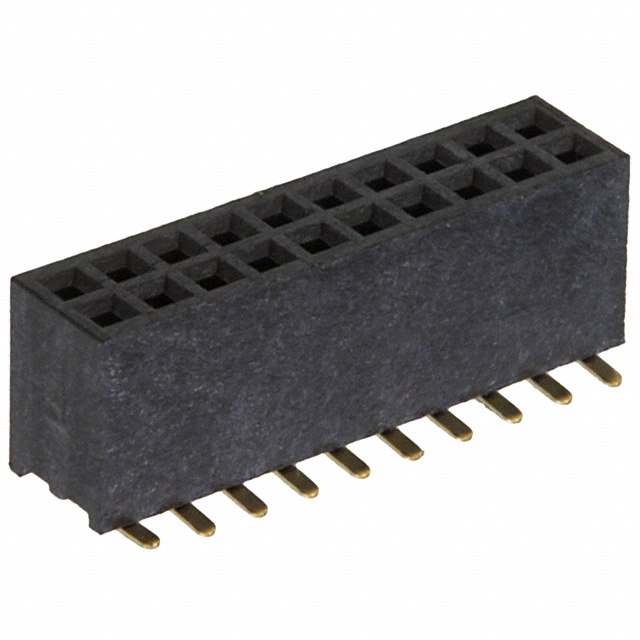

 Harwin Inc. | Phosphor Bronze | Square | Liquid Crystal Polymer (LCP) | General Purpose Medical Telecommunications | 20 | Receptacle | 5.5 mm 6.18 mm | Gold | Solder | Surface Mount | 1.27 mm | 0.05 in | Female Socket | All | UL94 V-0 | 0.05 in | 1.27 mm | Flash | 250 V | 2 | Board to Board Cable | Black | 0.181 in | 4.6 mm | -40 C | 105 ░C | Push-Pull | ||
 Harwin Inc. | Phosphor Bronze | Square | Nylon 6T Polyamide (PA6T) | General Purpose Medical Telecommunications | 50 | Receptacle | 5.5 mm 6.18 mm | Gold | Solder | Surface Mount | 1.27 mm | 0.05 in | Female Socket | All | UL94 V-0 | 0.05 in | 1.27 mm | Flash | 250 V | 2 | Board to Board Cable | Black | 0.181 in | 4.6 mm | -40 C | 105 ░C | Push-Pull | Flash | Gold |
