PREC004 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 4POS 2.54MM
| Part | Insulation Color | Connector Type | Contact Type | Mounting Type | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Material Flammability Rating | Number of Positions | Style | Termination | Overall Contact Length [x] | Overall Contact Length [x] | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Insulation Material | Contact Material | Number of Rows | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Shrouding | Contact Finish - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

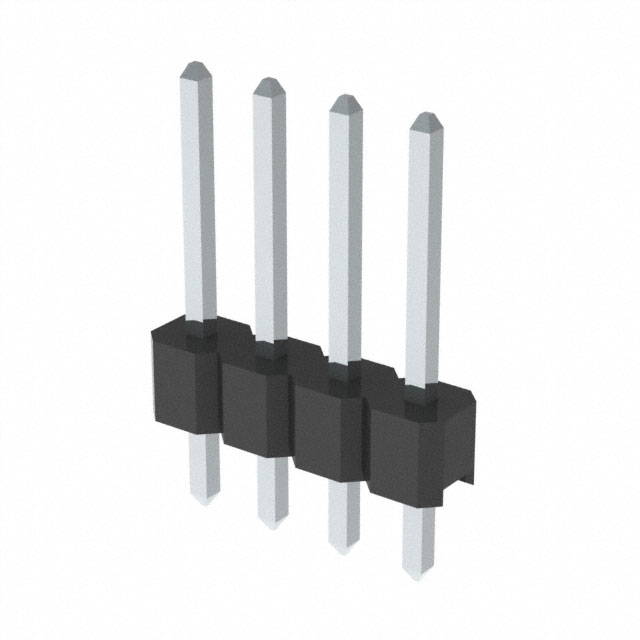

 Sullins Connector Solutions | Black | Header Breakaway | Male Pin | Through Hole | Square | -40 C | 105 ░C | All | UL94 V-0 | 4 | Board to Board Cable | Solder | 13.63 mm | 0.537 in | 8.08 mm | 0.318 in | Push-Pull | 3.05 mm | 0.12 in | 3 A | Polybutylene Terephthalate (PBT) | Brass | 1 | 0.098 " | 2.5 mm | 0.1 " | 2.54 mm | Unshrouded | Tin | |||

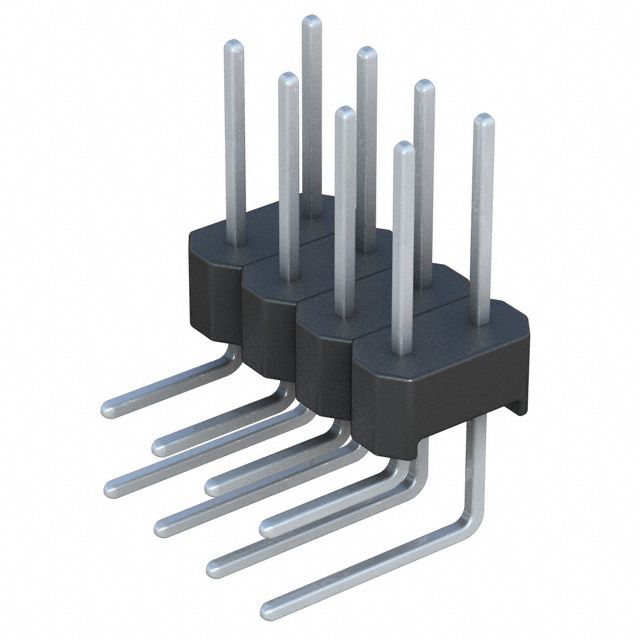

 Sullins Connector Solutions | Black | Header Breakaway | Male Pin | Right Angle Through Hole | Square | -40 C | 105 ░C | All | UL94 V-0 | 8 | Board to Board Cable | Solder | 5.84 mm | 0.23 in | Push-Pull | 3.05 mm | 0.12 in | 3 A | Polybutylene Terephthalate (PBT) | Brass | 0.197 " | 5 mm | 0.1 " | 2.54 mm | Unshrouded | Tin | 0.1 in | 2.54 mm | 2 | |||
 Sullins Connector Solutions | Black | Header Breakaway | Male Pin | Right Angle Through Hole | Square | -40 C | 105 ░C | All | UL94 V-0 | 4 | Board to Board Cable | Solder | 5.84 mm | 0.23 in | Push-Pull | 3.05 mm | 0.12 in | 3 A | Polybutylene Terephthalate (PBT) | Brass | 1 | 0.098 " | 2.5 mm | 0.1 " | 2.54 mm | Unshrouded | Tin | |||||
 Sullins Connector Solutions | Black | Header Breakaway | Male Pin | Through Hole | Square | -40 C | 105 ░C | All | UL94 V-0 | 4 | Board to Board Cable | Solder | 16.47 mm | 0.648 in | 5.84 mm | 0.23 in | Push-Pull | 8.13 mm | 0.32 in | 3 A | Polybutylene Terephthalate (PBT) | Brass | 1 | 0.098 " | 2.5 mm | 0.1 " | 2.54 mm | Unshrouded | Tin | |||
 Sullins Connector Solutions | Black | Header Breakaway | Male Pin | Right Angle Through Hole | Square | -40 C | 105 ░C | All | UL94 V-0 | 8 | Board to Board Cable | Solder | 5.84 mm | 0.23 in | Push-Pull | 5.58 mm | 0.22 in | 3 A | Polybutylene Terephthalate (PBT) | Brass | 0.197 " | 5 mm | 0.1 " | 2.54 mm | Unshrouded | Tin | 0.1 in | 2.54 mm | 2 |
