1376386 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
5.0 POWER KEY CONNECTOR 4P (2R
| Part | Mated Stacking Heights | Applications | Number of Positions | Insulation Height | Insulation Height | Contact Material | Number of Positions Loaded | Current Rating (Amps) | Number of Rows [custom] | Mounting Type | Material Flammability Rating | Features | Termination | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Type | Voltage Rating | Connector Type | Style | Contact Finish - Post | Fastening Type | Insulation Material | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

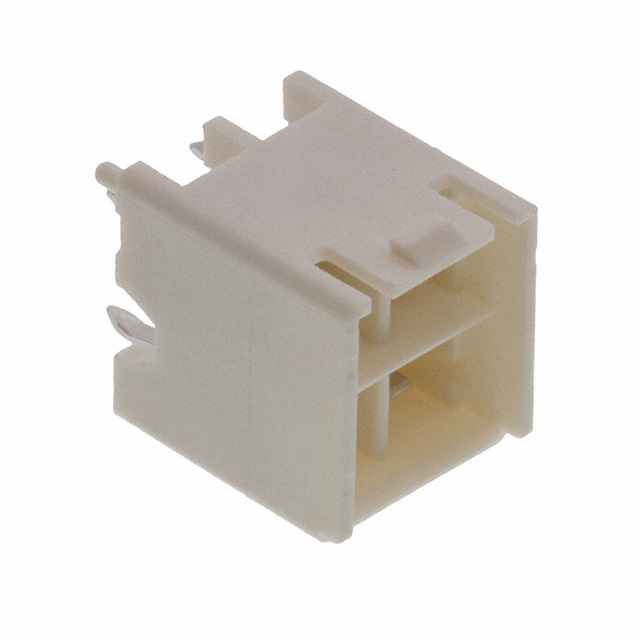

 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | 4 | 14.1 mm | 0.555 in | Copper Alloy | All | Varies by Wire Gauge | 2 | Through Hole | UL94 V-0 | Board Guide Glow Wire Compliant | Solder | 6.2 mm | 0.244 in | 0.138 in | 3.5 mm | -40 C | 105 ░C | Rectangular | Natural | 0.197 " | 5 mm | Tab | 300 VAC | Header | Board to Cable/Wire | Tin | Locking Ramp | Glass Filled Nylon 6/6 Polyamide (PA66) | Shrouded - 4 Wall |

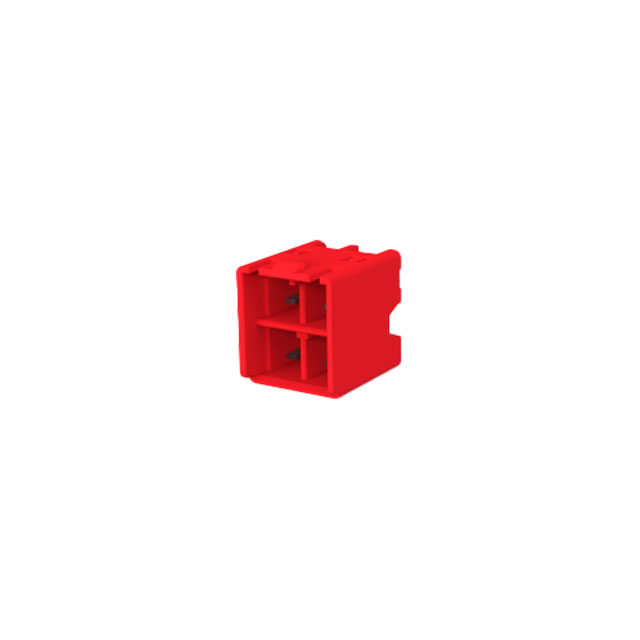

 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | 4 | 14.1 mm | 0.555 in | Copper Alloy | All | Varies by Wire Gauge | 2 | Through Hole | UL94 V-0 | Board Guide Glow Wire Compliant | Kinked Pin Solder | 6.2 mm | 0.244 in | 0.138 in | 3.5 mm | -40 C | 105 ░C | Rectangular | Red | 0.197 " | 5 mm | Tab | 300 VAC | Header | Board to Cable/Wire | Tin | Locking Ramp | Glass Filled Nylon 6/6 Polyamide (PA66) | Shrouded - 4 Wall |
 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | 4 | 14.1 mm | 0.555 in | Copper Alloy | All | Varies by Wire Gauge | 2 | Through Hole | UL94 V-0 | Board Guide Glow Wire Compliant | Kinked Pin Solder | 6.2 mm | 0.244 in | 0.138 in | 3.5 mm | -40 C | 105 ░C | Rectangular | Natural | 0.197 " | 5 mm | Tab | 300 VAC | Header | Board to Cable/Wire | Tin | Locking Ramp | Glass Filled Nylon 6/6 Polyamide (PA66) | Shrouded - 4 Wall |

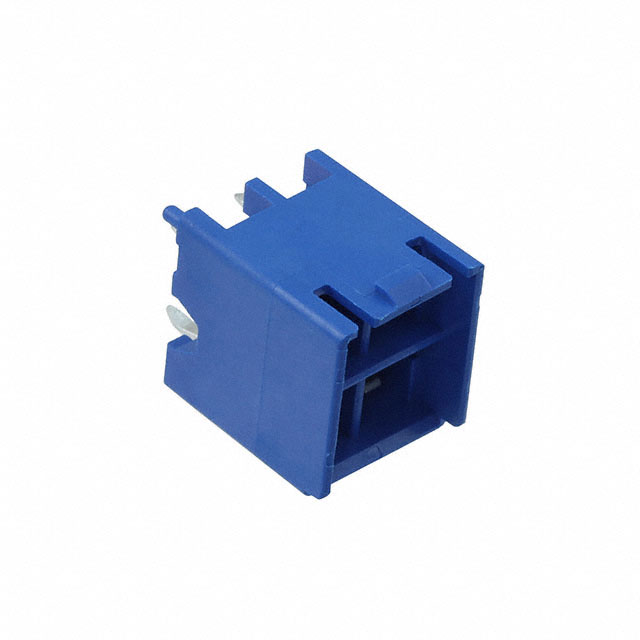

 TE Connectivity AMP Connectors | 19.4 mm | General Purpose | 4 | 14.1 mm | 0.555 in | Copper Alloy | All | Varies by Wire Gauge | 2 | Through Hole | UL94 V-0 | Board Guide Glow Wire Compliant | Kinked Pin Solder | 6.2 mm | 0.244 in | 0.138 in | 3.5 mm | -40 C | 105 ░C | Rectangular | Blue | 0.197 " | 5 mm | Tab | 300 VAC | Header | Board to Cable/Wire | Tin | Locking Ramp | Glass Filled Nylon 6/6 Polyamide (PA66) | Shrouded - 4 Wall |
