8P1P002 Series
Manufacturer: NorComp Inc.
Beta
⌘K

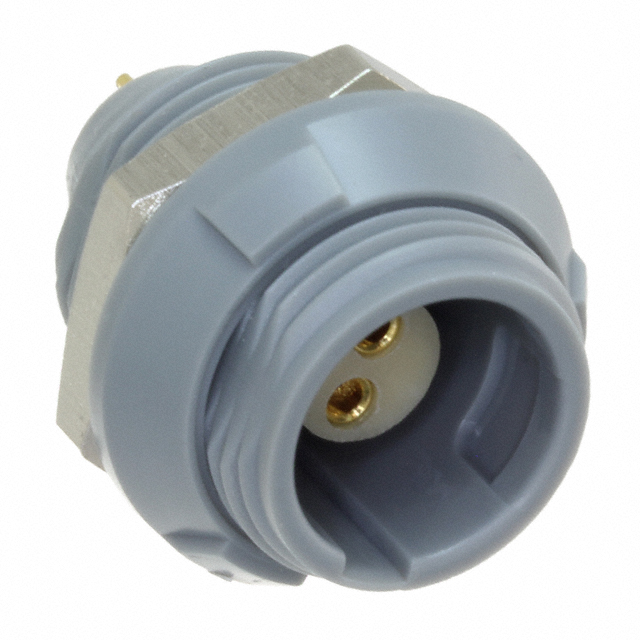

CIRCULAR CONNECTOR, QUIK-LOQ 8P1P SERIES, BULKHEAD RECEPTACLE, 2 CONTACTS, SOLDER SOCKET
| Part | Current Rating (Amps) | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Voltage Rating | Mounting Feature | Shielding | Insert Material | Shell Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Ingress Protection | Primary Material | Orientation | Contact Finish - Mating | Fastening Type | Contact Material | Termination | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Panel Mount | 500 V | Bulkhead - Front Side Nut | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Receptacle Female Sockets | 120 °C | -20 ░C | Gray Red | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | ||||||

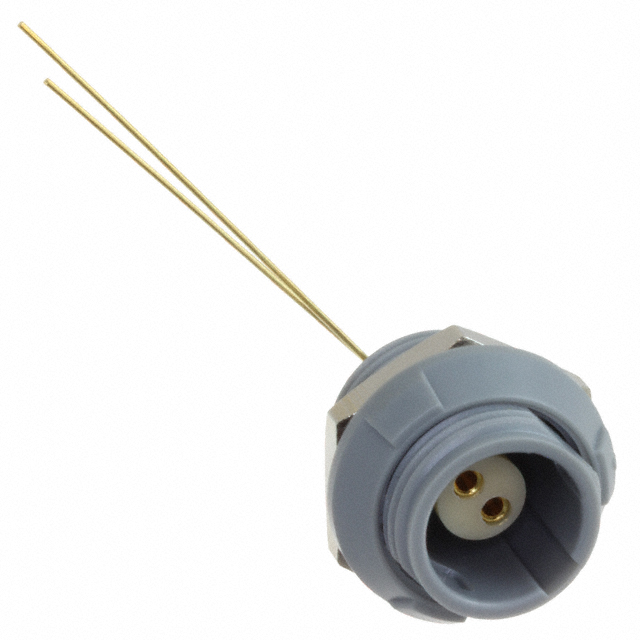

 NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Panel Mount Right Angle Through Hole | 500 V | Bulkhead - Front Side Nut | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Receptacle Female Sockets | 120 °C | -20 ░C | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | Solder | ||||||

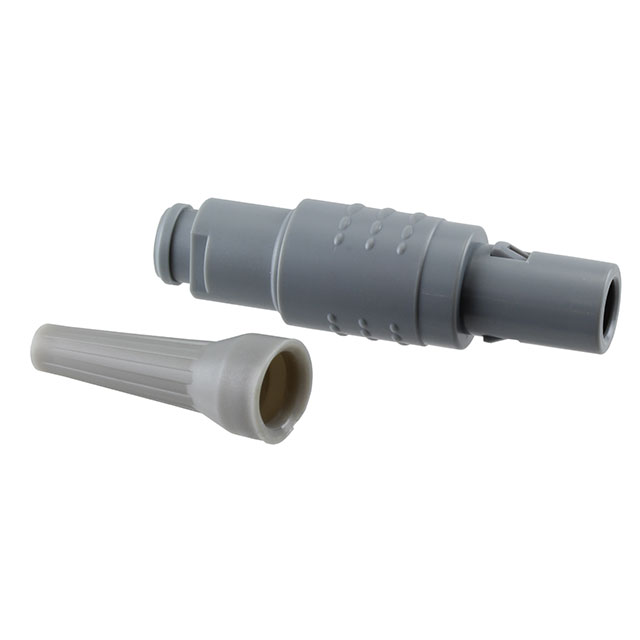

 NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Free Hanging (In-Line) | 500 V | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Plug Male Pins | 120 °C | -20 ░C | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | 3.99 mm | 0.087 in | 2.2 mm | 0.157 in | Backshell Strain Relief | |||
NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Free Hanging (In-Line) | 500 V | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Plug Male Pins | 120 °C | -20 ░C | Blue Gray | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | 6 mm | 0.197 in | 5 mm | 0.236 in | Backshell Strain Relief | ||

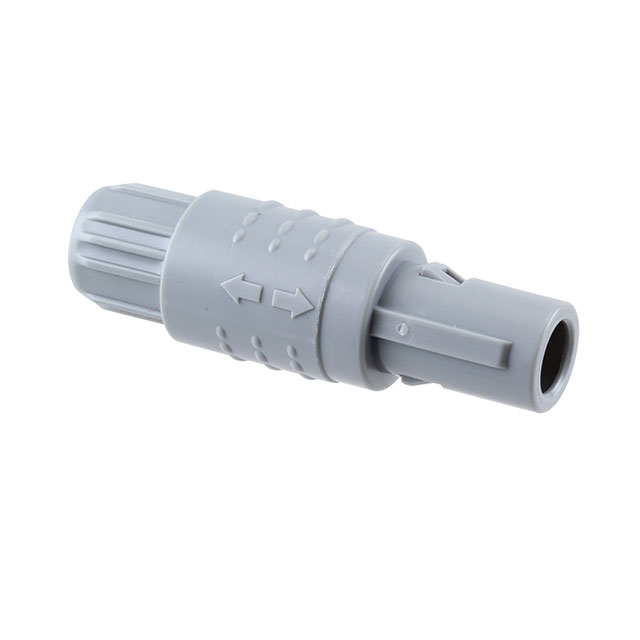

 NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Free Hanging (In-Line) | 500 V | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Plug Male Pins | 120 °C | -20 ░C | Gray | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | 6 mm | 0.197 in | 5 mm | 0.236 in | |||
NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Free Hanging (In-Line) | 500 V | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Plug Male Pins | 120 °C | -20 ░C | Gray | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | 6 mm | 0.197 in | 5 mm | 0.236 in | Backshell Strain Relief | ||
 NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Panel Mount Through Hole | 500 V | Bulkhead - Front Side Nut | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Receptacle Female Sockets | 120 °C | -20 ░C | Gray | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | Solder | |||||
 NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Panel Mount Right Angle Through Hole | 500 V | Bulkhead - Front Side Nut | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Receptacle Female Sockets | 120 °C | -20 ░C | Blue Gray | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | Solder | |||||
NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Free Hanging (In-Line) | 500 V | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Plug Male Pins | 120 °C | -20 ░C | Gray Green | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | 5 mm | 0.157 in | 4 mm | 0.197 in | Backshell Strain Relief | ||
 NorComp Inc. | 10 A | 2 | 7 µin | 0.178 µm | Panel Mount Through Hole | 500 V | Bulkhead - Front Side Nut | Unshielded | Polyphenylene Sulfide (PPS) | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | Receptacle Female Sockets | 120 °C | -20 ░C | IP50 - Dust Protected | Plastic | Keyed | Gold | Push-Pull | Copper Alloy | Solder |
