ST121 Series
Manufacturer: E-Switch
Beta
⌘K

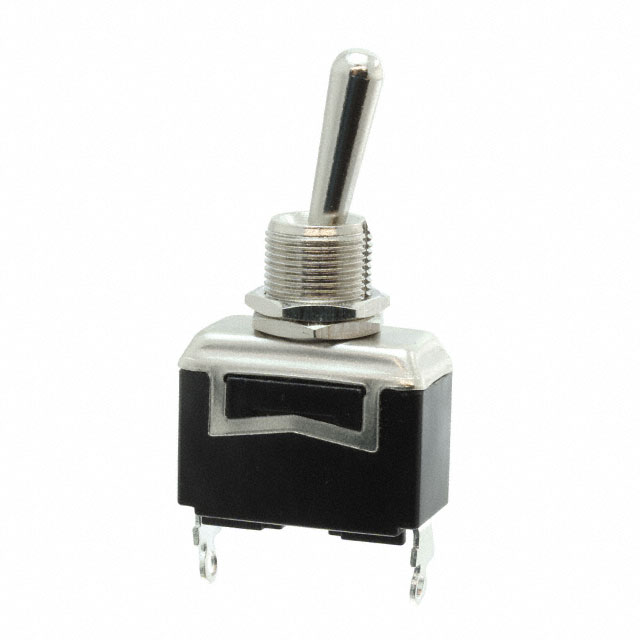

SWITCH TOGGLE SPST 20A 125V
| Part | Electrical Life | Actuator Material | Termination Style | Actuator Length [x] | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Actuator Type | Mounting Type | Voltage Rating - AC | Illumination | Switch Function | Bushing Thread | Operating Temperature [Min] | Operating Temperature [Max] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | Brass Nickel Plated | Solder Lug | 19.5 mm | 20 A | 12 mm | Standard Round | Panel Mount | 125 V | Non-Illuminated | On-Off | 15/32-32 | 0 °C | 85 °C | SPST |
 E-Switch | 6000 Cycles | Brass Nickel Plated | Solder Lug | 19.5 mm | 20 A | 12 mm | Standard Round | Panel Mount | 125 V | Non-Illuminated | On-Off | M12 x 1 | 0 °C | 85 °C | SPST |
