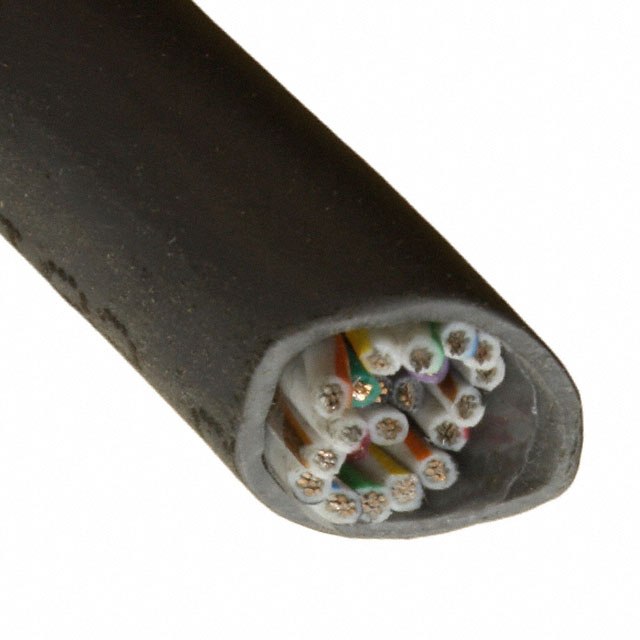

5010/25C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 25COND 22AWG SLATE 500'
| Part | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Features | Number of Conductors [custom] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Conductor Material | Wire Gauge | Jacket Color | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 300 VDC | 30 AWG | 7 | Biological Compatibility Rip Cord | 25 | Communication Control | 0.813 mm | 0.032 in | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Copper Tinned | 22 AWG | Slate | Multi-Conductor | 9.35 mm | 0.368 in | UL Style 2464 | -35 °C | 105 ░C |
