342126 Series

Catalog

22-16 F.E.P.G. WIRE PIN

Part	Features	Insulation	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Contact Finish	Length - Pin [x]	Length - Pin [x]	Length - Termination [x]	Length - Termination [x]	Color	Termination	Length - Overall [x]	Length - Overall [x]

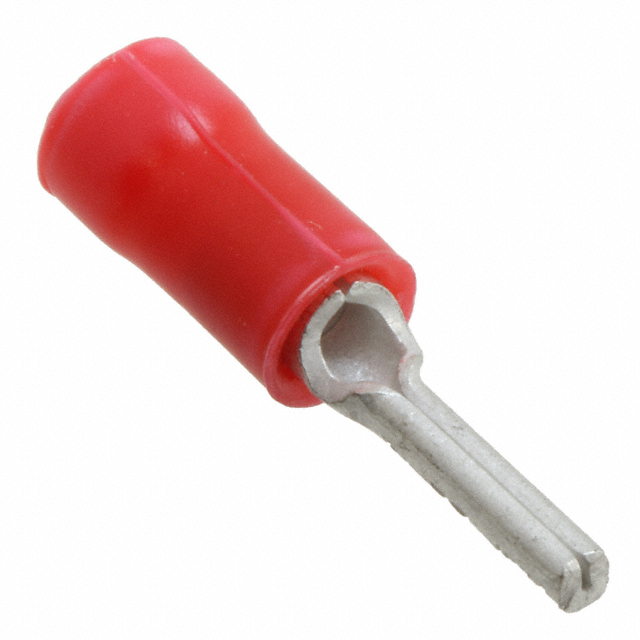

TE Connectivity Raychem Cable Protection 342126-1	Serrated Termination	Insulated	Poly-Vinyl Chloride (PVC)	22 AWG	16 AWG	Copper	0.106 "	2.69 mm	0.142 in	3.61 mm	Tin	6.71 mm	0.264 in	12.87 mm	0.507 in	Red	Crimp	20.57 mm	0.81 in
